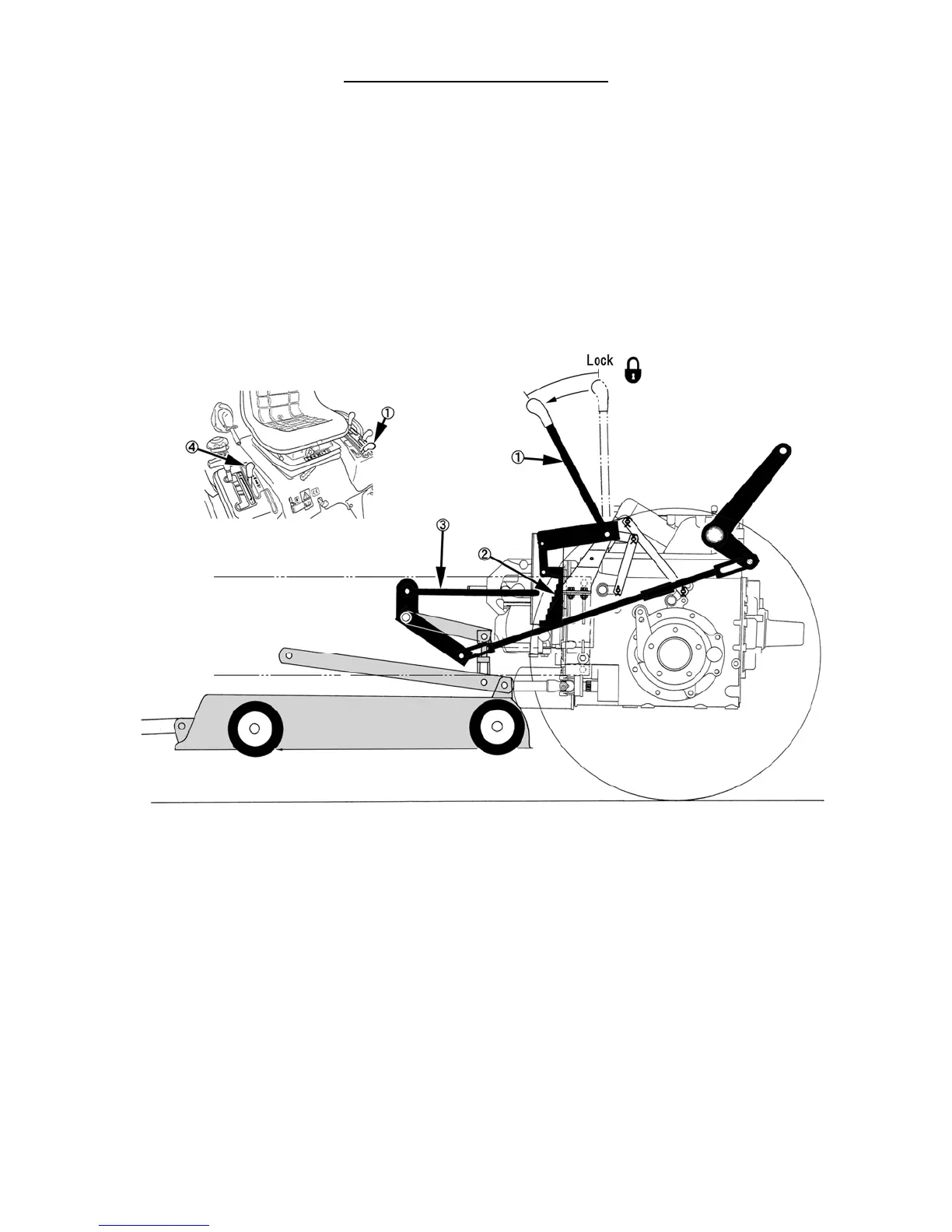

To establish a cutting height, move the cutting height control lever, 1, to the desired position. This slides the stop plate, 2,
downward, which changes the travel limit on the deck height stop rod, 3.
Note that, with the HPL control lever, 4, still in the "raise" position, the lift arm linkage holds the mower deck at its
maximum height while the cutting height adjustment is made.
