1 - SPECIFICATION & STRUCTURE
22

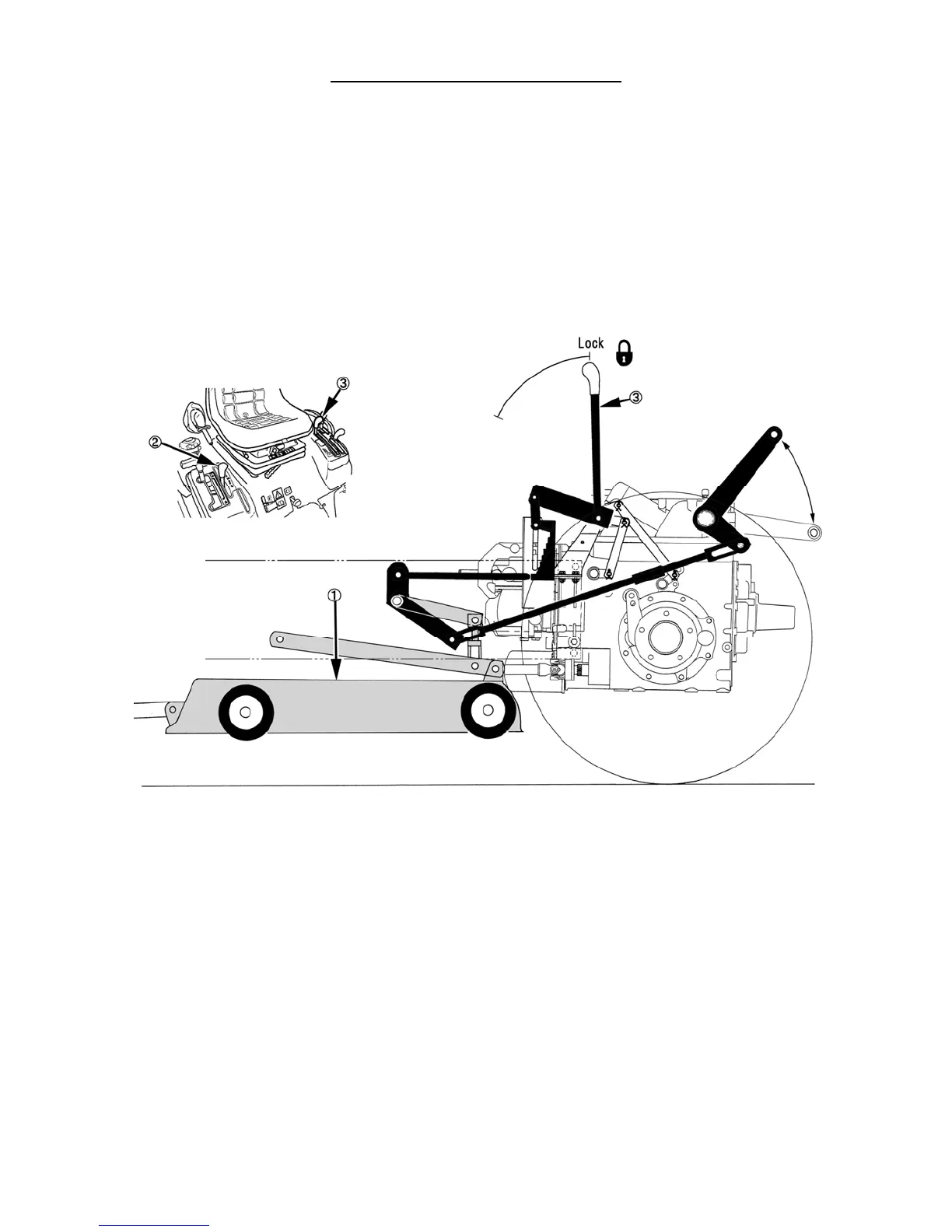

6. MOWER LIFT LINKAGE
1) Operation
The mower deck, 1, is raised to its highest position when the hydraulic control lever, 2, is in the "raise" position.
When the mower cutting height lever, 3, is in the "locked" position (lever fully rearward), the mower deck height is
locked, and the HPL system can be freely used without affecting the mower deck.
15-1
