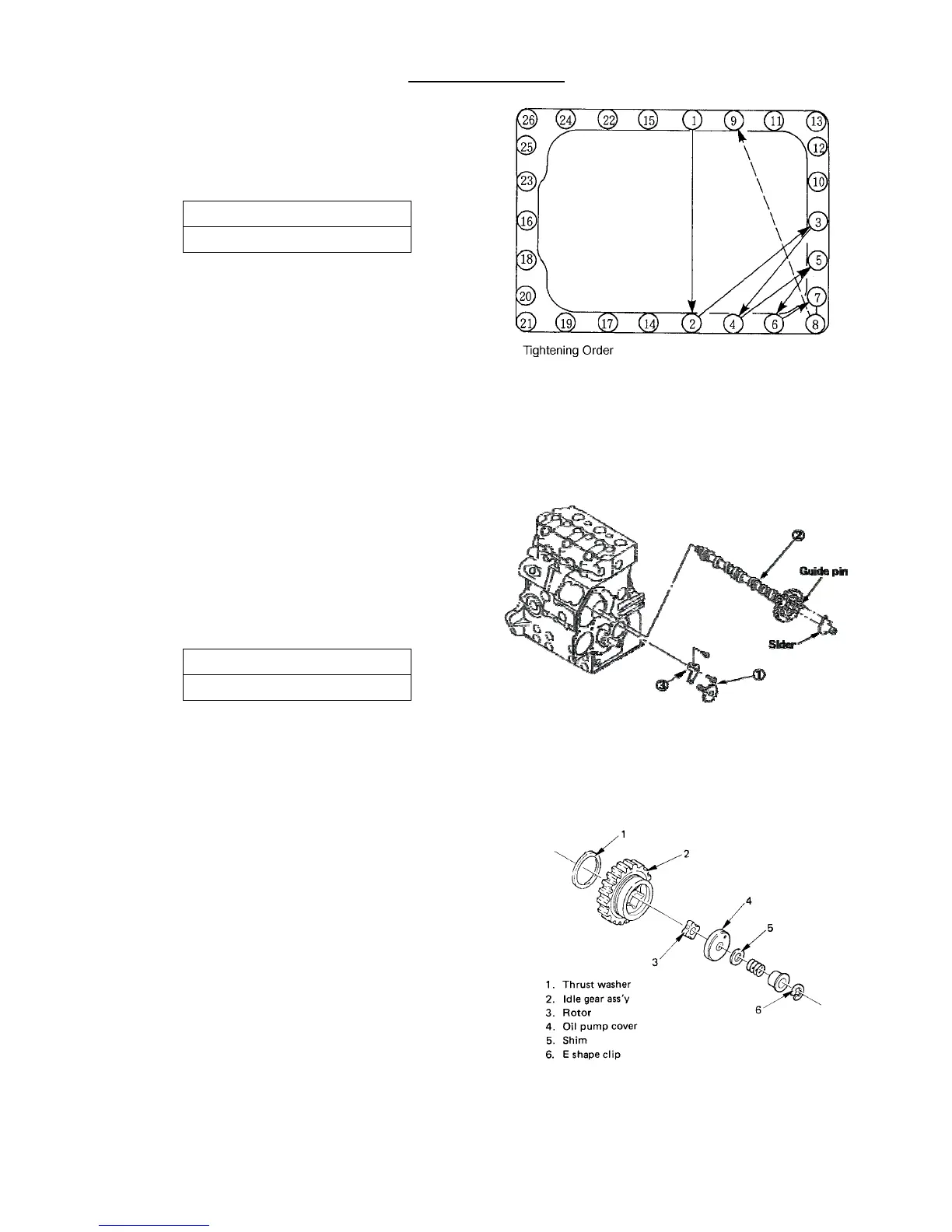

8) Oil pan
Start tightening the bolts of the oil pan from the center,
then tighten the opposing bolt on opposite side on the
diagonal and specified torque.
Oil pan tightening torque
10 – 12.7 N·m (1.0 – 1.3 kgf·m)
9) Oil level gauge and Gauge guide
Install the oil level gauge and gauge guide using 2
O-rings.
10) Front plate
Install the front plate together with the gasket.
11) Cam shaft ass’y · Tachometer shaft · Plate
➀ Install the tachometer shaft.
➁ Install the cam shaft ass’y (taking care to the
bearing).
➂ Fix the tachometer shaft and cam shaft ass’y with
the plate.
Plate tightening torque
9 ~ 13 N·m (0.9 ~ 1.3 kgf·m)
NOTE: Install the timing gear case taking care so
that the slider is not dislocated from the
guide pin.
12) Idle gear · Oil pump ass’y
➀ Install a thrust washer to the idle gear shaft.
➁ Install the idle gear ass’y.
➂ Align the match marks of the idle gear, crankshaft
gear and cam shaft gear and install idle gear ass’y
to the idle gear shaft.
➃ Install the rotor.
➄ Install the oil pump cover, shim, spring and collar
and fix with a E shape clip.
