3

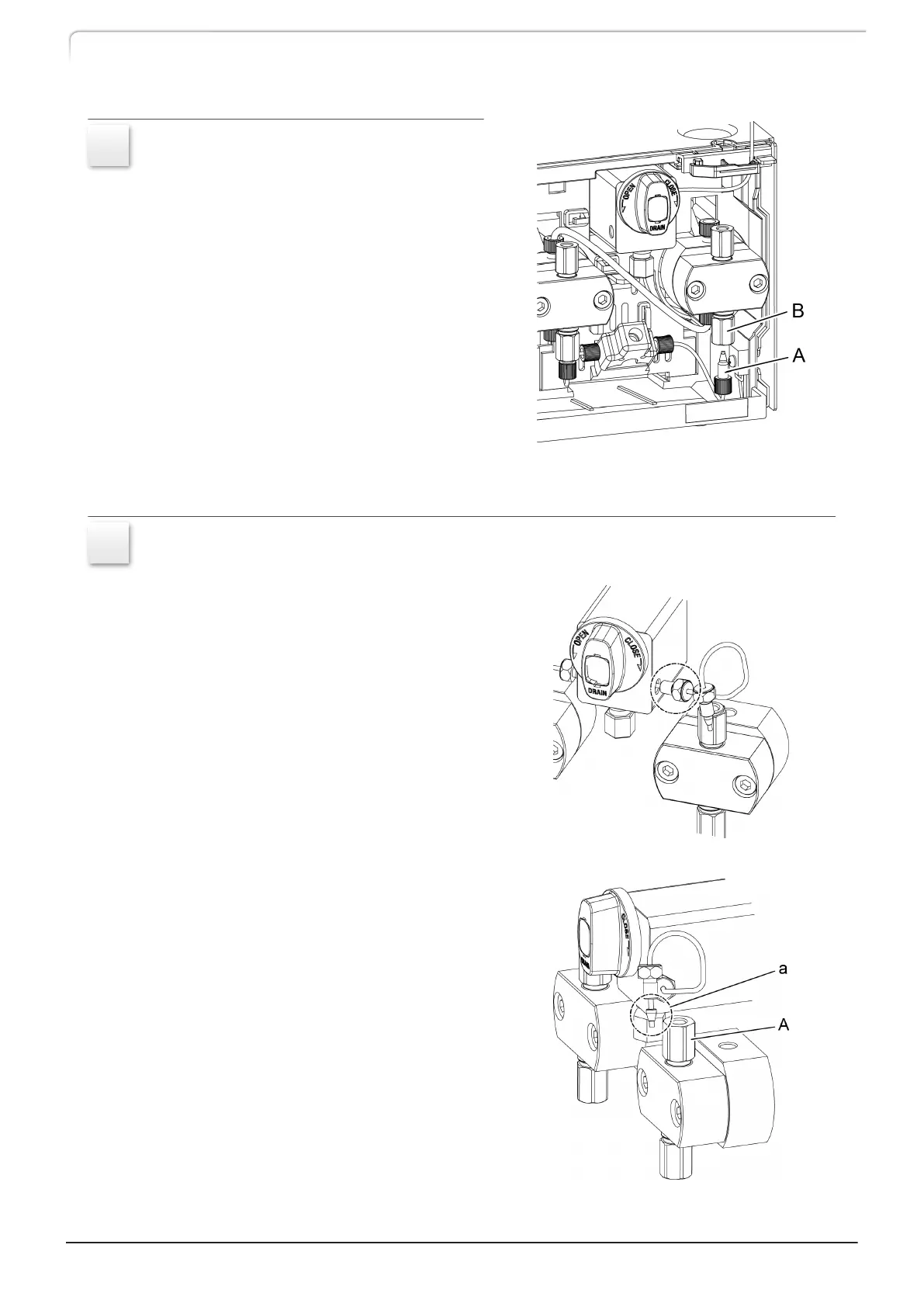

Tighten the male nut PEEK (A) of the
inlet tube to the inlet check valve (B)
by hand.
4
Follow the instructions below to attach the tube (SUS pipe R) connecting the
check valve OUT and the pressure sensor.
1 Insert the end of the SUS pipe R
into the hole of the pressure
sensor.
2
Hold the check valve side end of
the SUS pipe R ("a" in the figure)
and then insert the male nut into
the check valve OUT (A).
90
LC-40D X3 CL LC-40D XR CL
4 Maintenance
