Immerse the inlet check valve (A) and outlet check valve (B) into 2-propanol, and
clean for 5 minutes using an ultrasonic bath.
4

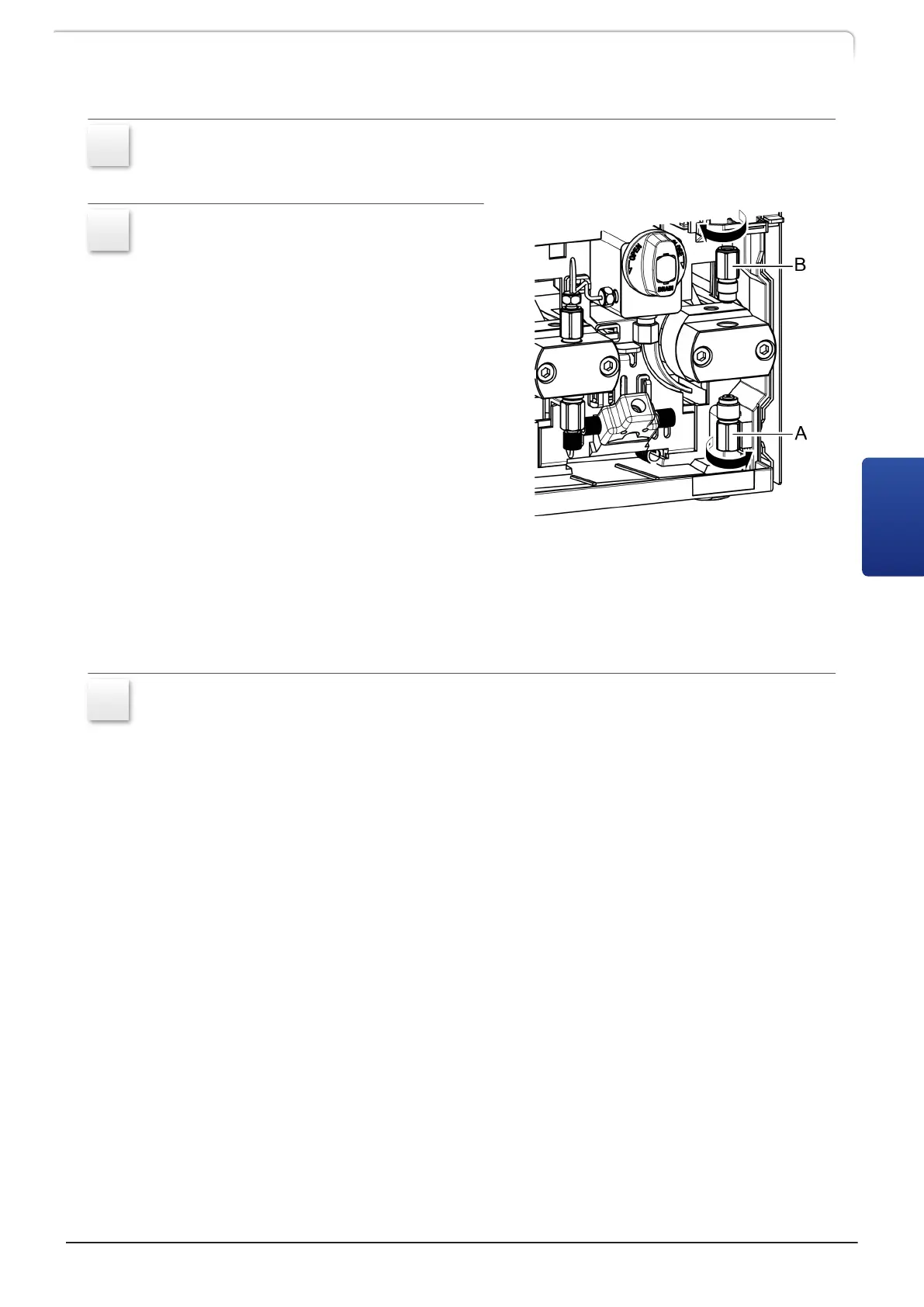

Rotate the inlet check valve (A) and
the outlet check valve (B) clockwise to
attach them to the pump head, and
after tightening by hand, use a 10 mm
wrench to tighten them as follows.
•
Inlet check valve
• LC-40D X3 CL:
Hand tightening and 120° with
wrench
• LC-40D XR CL:
Hand tightening and 90° with
wrench
•
Outlet check valve
•
LC-40D X3 CL:
Hand tightening and 60 to 90° with wrench
•
LC-40D XR CL:
Hand tightening and 90° with wrench
5
Attach the SUS pipe and inlet tube by following the instructions in "Installing
the pump head" P.89.
LC-40D X3 CL LC-40D XR CL
111
4.7 Performing an Ultrasonic Cleaning of the Check Valve
4
