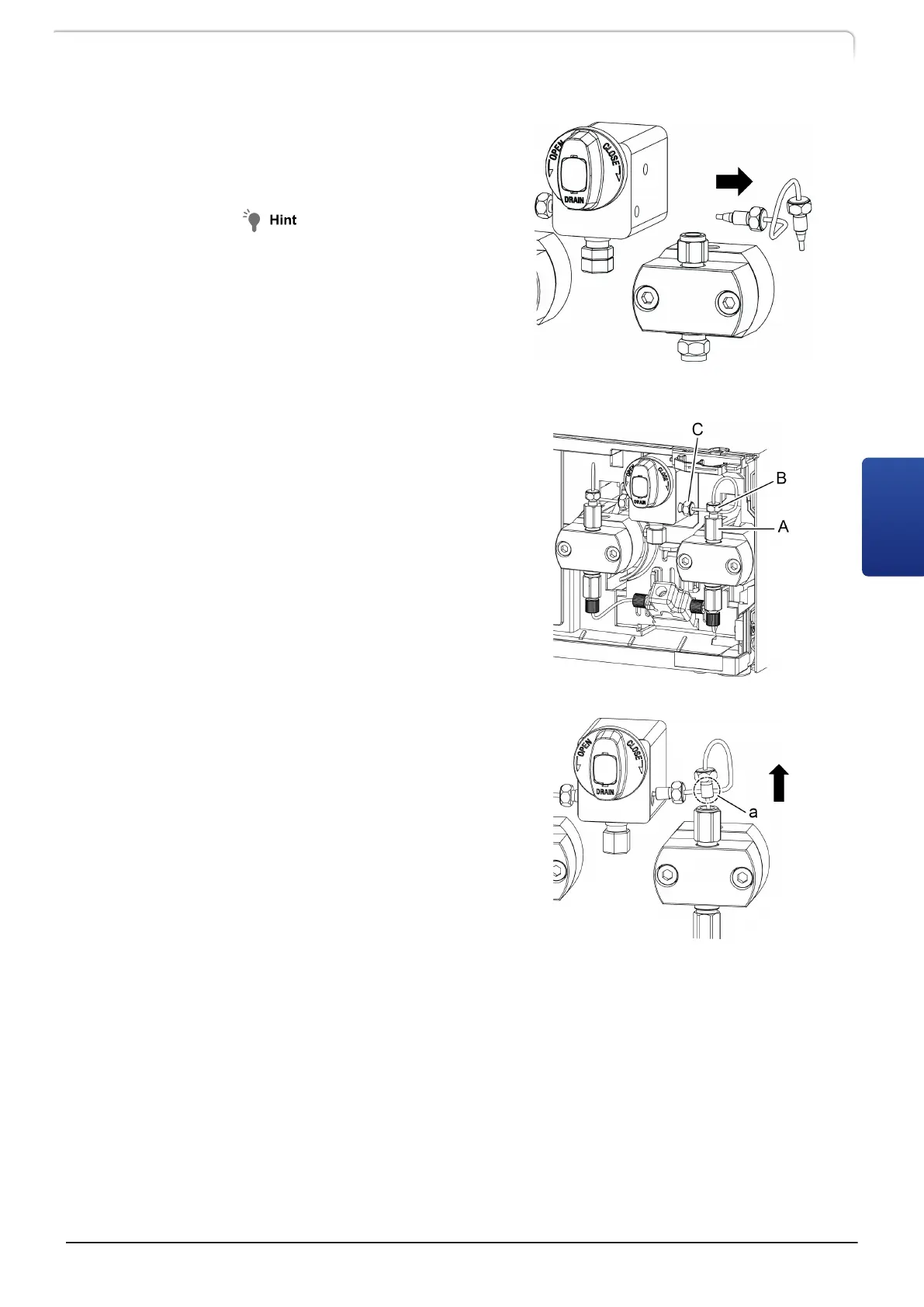

4 Pull the SUS pipe R to the right
to remove it from the pressure
sensor.
Though the orientation is
opposite to the right one
(SUS pipe R), remove the
left tube (SUS pipe L) in
the same procedure.
(LC-40D XR CL)
1 While holding the check valve
OUT (A) with a 10-mm wrench,
loosen the check valve OUT side
male nut (B) of the SUS pipe R
with an 8-mm wrench.
2
Loosen the pressure sensor side
male nut (C) of the SUS pipe R
with an 8-mm wrench.
3
Hold the check valve OUT side
male nut ("a" in the figure) of
the SUS pipe R and then slightly
lift the SUS pipe R.
LC-40D X3 CL LC-40D XR CL
87
4.3 Removing/Installing the Pump Heads
4
