Carrier1
unit
Sun Gear2
guide ring
Sun Gear3
Ring Gear1

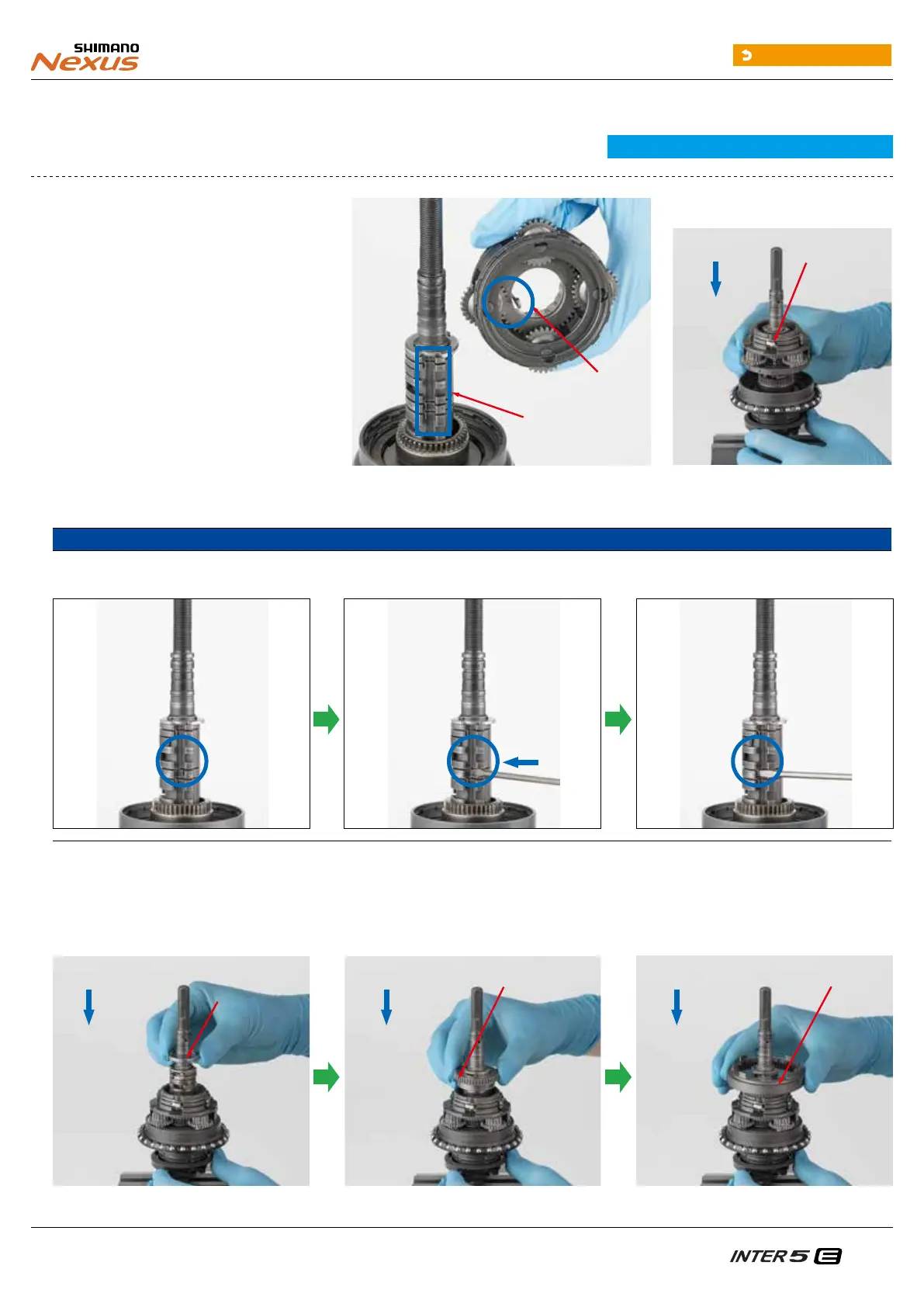

14. Install the carrier unit.
(2) Install up to Ring Gear1.
(1) Install the Carrier1unit
*Do this while pushing the cassette joint until
it makes contact.
If a shifting lever is connected, do this with
the unit in 1st gear.
*Do this while pushing the cassette joint until
it makes contact.
If a shifting lever is connected, do this with
the unit in 1st gear.
Assembling the Internal Assembly
Tab
Groove
NOTICE
• If the metal tting of the axle unit groove has come out as shown in the gures, use a slotted screwdriver to push it in before installing the
Carrier 1 unit.
When installing, ensure that the tab on the Carrier
1 unit is inserted into the groove on the axle unit.
