71
Return to index page
Install so that the protrusion in the center of
the E-ring fits into the hole in the hub axle.
E-ring
15. Install a new E-ring.
NOTICE
•
If you cannot see the hole in the hub
axle, the carrier unit might not be
installed properly. Return to step 12
and reinstall it.

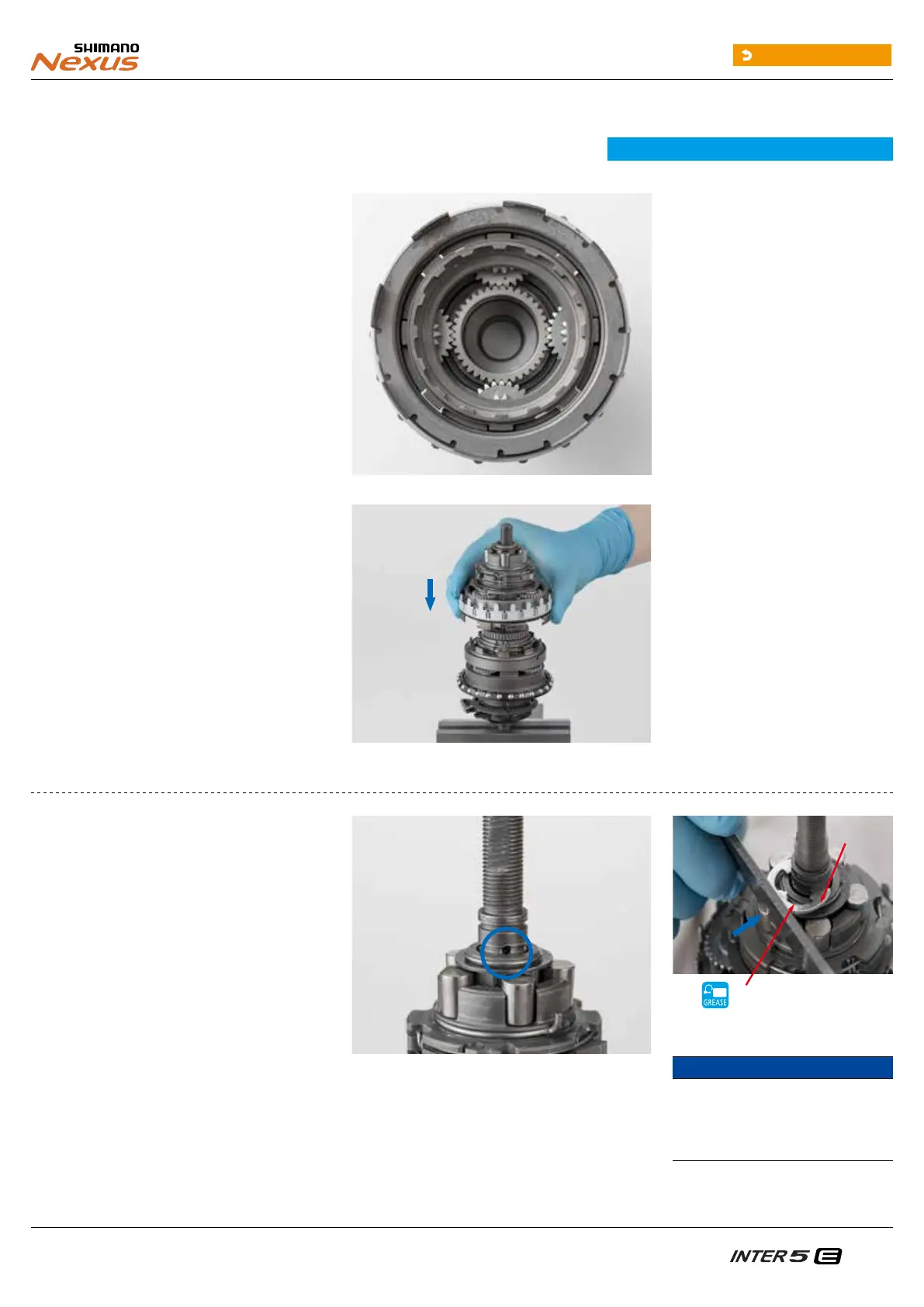

Assembling the Internal Assembly
(Y-04130100)
Contact point of E-ring
and Carrier Unit
(3) Combine the Carrier2 Unit, Ring Gear2, and
Ring Gear1 washer.
(4) Install the combined unit.
*Keep your hands away from the cassette
joint while doing this.
If a shifting lever is connected, do this with
the unit in 5th gear.
*If installation is difficult, install while
slighting turning the driver.
*The Ring Gear1 washer is included only
when the first two letters stamped on the
hub axle are “RE - RL, SA - SL, or TA - TL“.
When reassembling the product, ensure
that the part configuration at the time of
disassembly is maintained.
