RB-473-B02M
16

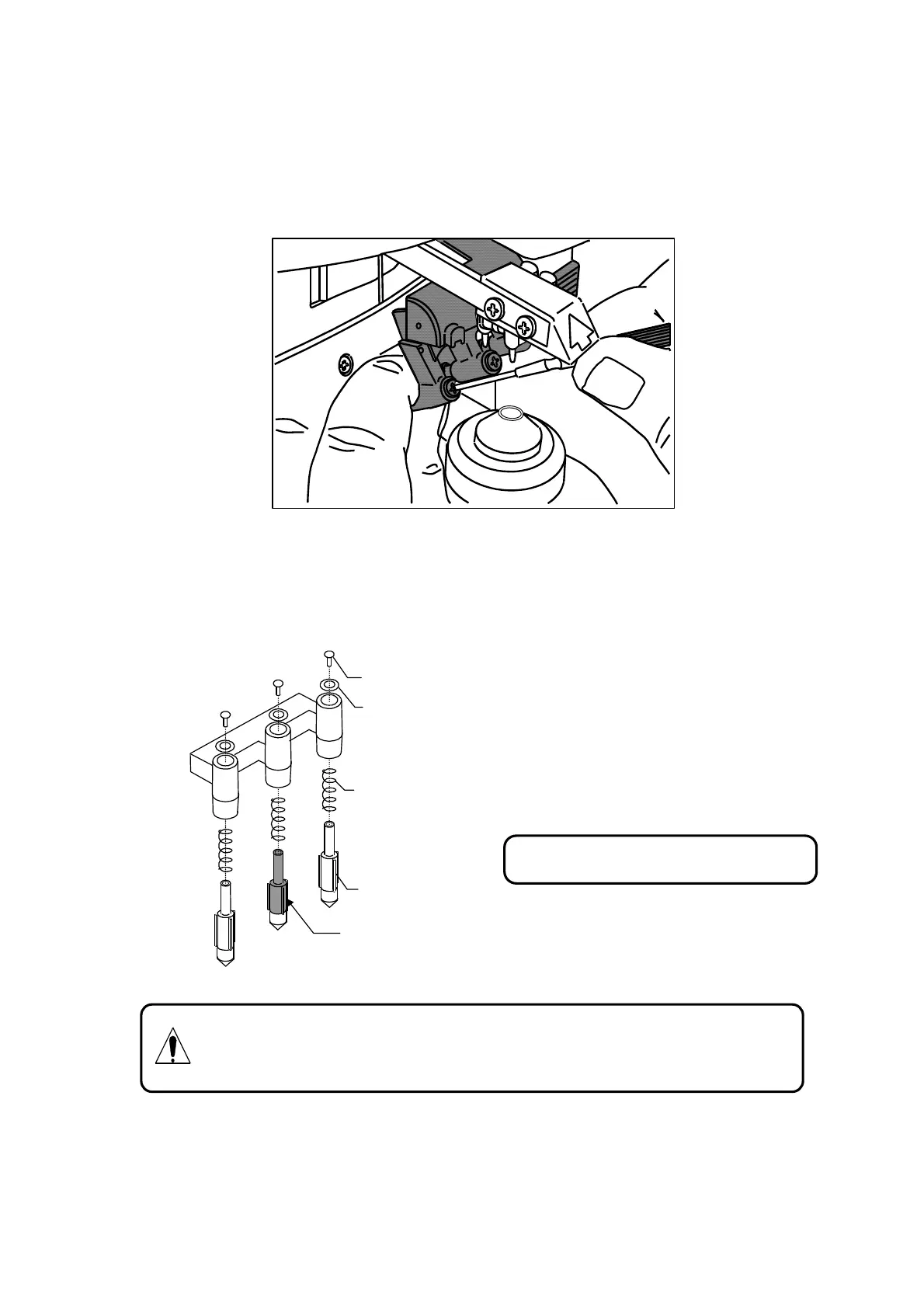

5.3.2. Replacement of marking pen
A marking pen is an article of consumption.
Replace it if an imprint becomes thin or the pen tip is worn out.
(1) Hold the pen tip of the marking pen (the plastic part) and turn the screw to the left to remove.
(2) Attach a spring to a new marking pen as shown below. Then insert the pen back to the initial
position.
(3) Holding the marking pen, fix it with the screw.
note : A central marking pen is black
and is shorter than pens on both sides.
Use the marking pen exclusively designed for SLM-5000 only.
Avoid touching the pen tip when replacing. The tip may be damaged.
Do not fasten the screw too tightly when replacing. You may damage the part.
Avoid losing the screw and spring.
Marking pen
Spring
Screw (M2
4L)
Black
a nominal dia:2
