6. Measurement
6.1. Check before Measurement

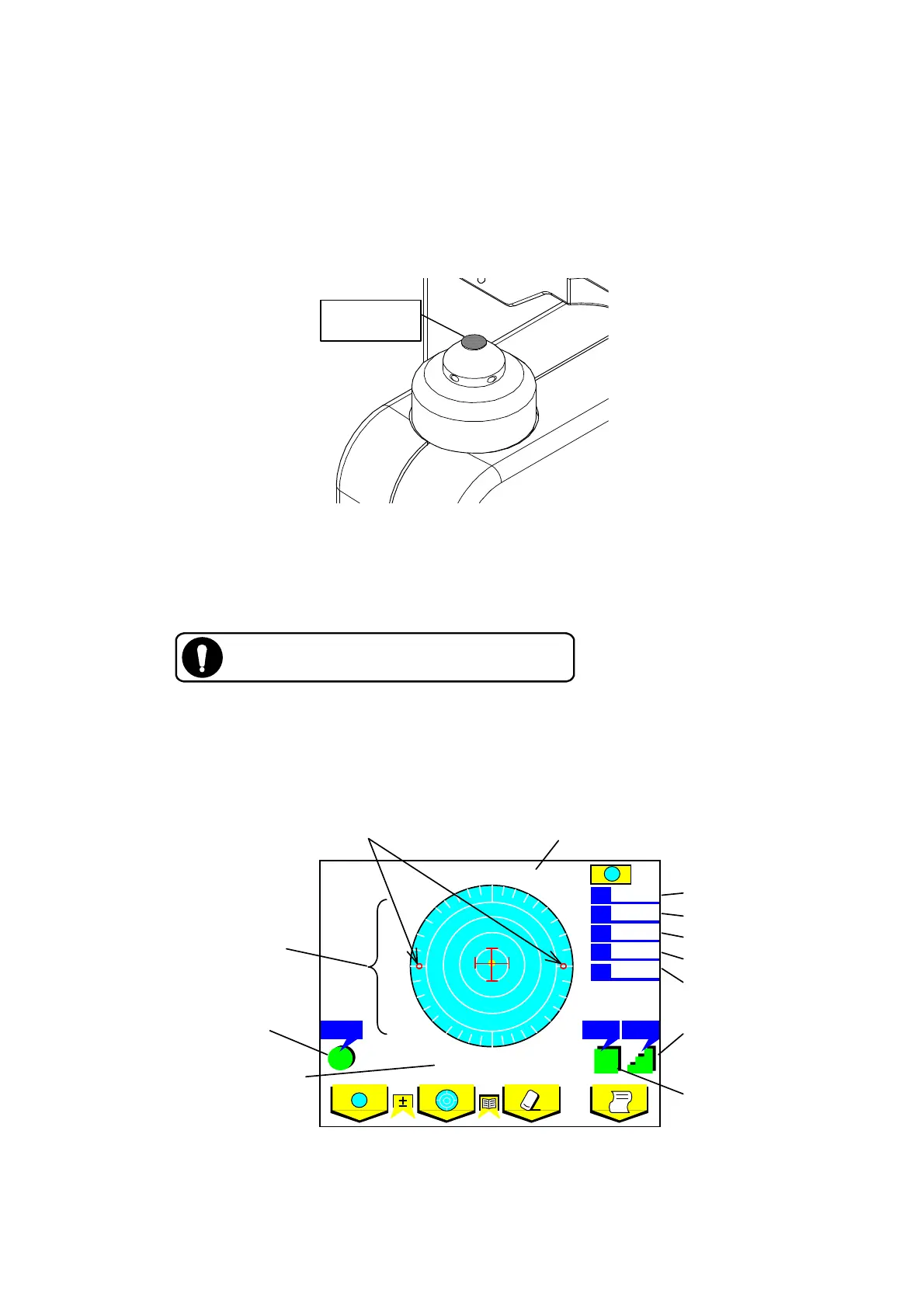

 Check that the lens stand is set properly.
 Check that the lens under the lens stand is clean.
A lens stand removed
A lens under
the lens stand
(If it is dirty, clean it with a soft cloth.)
 Plug the power cord to the outlet.
 Set the printing paper in a printer.
(See '5.4.3 Setting and replacement of Printer paper.')
 Check that no lenses are placed on the lens stand.
 Turn the power on. The screen below will appear in a few seconds.
Always make sure that the cable is grounded.
Measuring
Marking OK
S
C
A
Px
Py
0.00
0.00
0
I 0.00
U 0.00
40
±
.
S
Cyl
StepAbbe
S
25
Spherical value
Operation mode display
area
Alignment status/
Error message display area
Axis angle marks
Measurement
Cylindrical value
Axis angle
Prism value: X
Prism value: Y
Abbe number
Measurement
increment
Cylindrical sign
