16

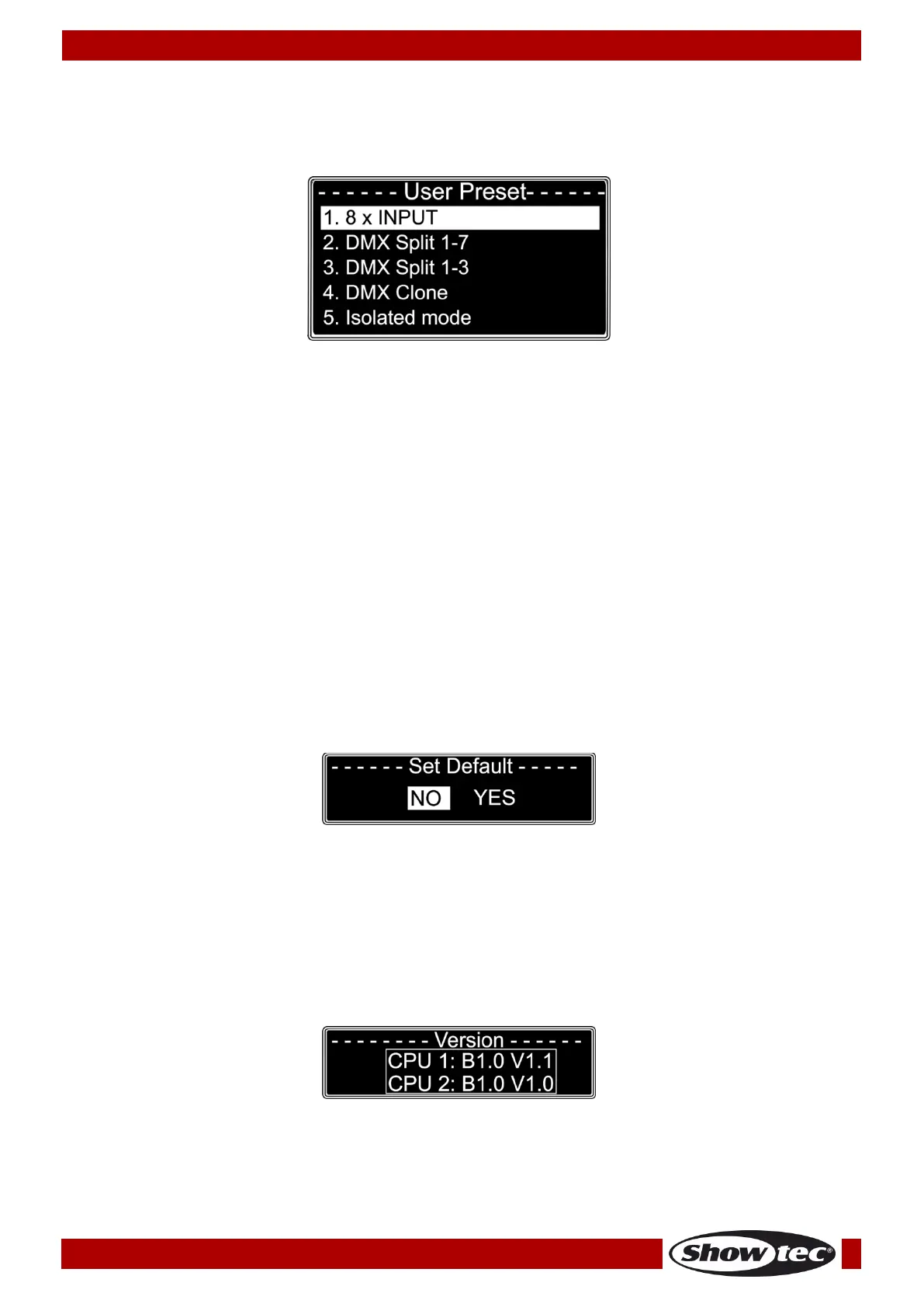

9. User preset
01) Press the LEFT button to enter the main menu.
02) In the main menu, press the UP/DOWN buttons to select User preset and press the RIGHT button to
open the submenu. The display shows:
03) Press the UP/DOWN buttons to scroll through the options:
8 x INPUT: The node converts 8 x DMX512 inputs into 8 separate ArtNet universes.
DMX Split 1-7: DMX splitter with 1 input and 7 isolated DMX outputs.
DMX port 1 is input and DMX port 2-8 are outputs.
DMX Split 1-3: DMX splitter with 2x input and 3 isolated DMX outputs.
DMX port 1 is input and DMX port 2-4 are outputs.
DMX port 5 is input and DMX port 6-8 are outputs.
DMX Clone: The node converts 4 x DMX512 inputs into 4 separate ArtNet universes and
duplicates the 4 input signals to the DMX ports 5-8. A network configuration needs
to be done according to your network and your ArtNet receiver.
Isolated mode: The node receives 8 separate ArtNet unverses and sends them to the 8 DMX output
ports. A network configuration needs to be done according to your network and
your ArtNet receiver.
04) Select one of the 5 pre-programmed presets, the selected preset will be highlighted.
05) Press the RIGHT button to confirm the desired preset.
10. Set Default
01) Press the LEFT button to enter the main menu.
02) In the main menu, press the UP/DOWN buttons to select Set Default and press the RIGHT button to
open the submenu. The display shows:
03) Press the UP/DOWN buttons to select “NO” or “YES”.
04) The selected option will be highlighted.
05) If you choose “Yes”, the device will be reset and all the made settings return to the factory settings.
06) Press the RIGHT button to confirm the desired option.
11. Version
01) Press the LEFT button to enter the main menu.
02) In the main menu, press the UP/DOWN buttons to select Version and press the RIGHT button to open
the submenu. The display shows:
03) The display shows the current software version of the device.
