SHOWTEC Net-8/3 User Manual

6
Ordercode: 50804
Net-8/3
Description of the device
Features
The Showtec Net-8/3 node is a cutting-edge network routing device which convert ArtNET to DMX512
and DMX512 to ArtNET. A maximum of 4096 channels can be transported over a single CAT5. This makes
the NET-8/3 suitable for small to large scale events. The NET-8/3 embeds a built-in network switch to be
used as a Ethernet repeater as well as 8 isolated DMX-512 universes which can be used as an input or
output. All settings can be done by the easy-to-use menu on the graphic display and buttons on the
front.
 Supports both Artnet or Klingnet protocol
 1 Gbps data speed
 8 universes DMX input or output
 High speed network in and output
 Input voltage: 100-240VAC, 50/60 Hz
 Power consumption: 20W max.
 Fuse: F1A / 250V
 Connections: 8 x 3-pin XLR OUT, 2 x RJ45, Pro Power connector
 Control protocol: ArtNET, KlingNET, sACN, TCP/IPv4, DMX-512
 LCD display for easy setup
 IP rating: IP20
 Operating temperature: 0 to +40 °C
 Dimensions: 483 x 143 x 44 mm (LxWxH); 19 inch x 1HE (LxH)
 Weight: 2,22 kg
Frontside

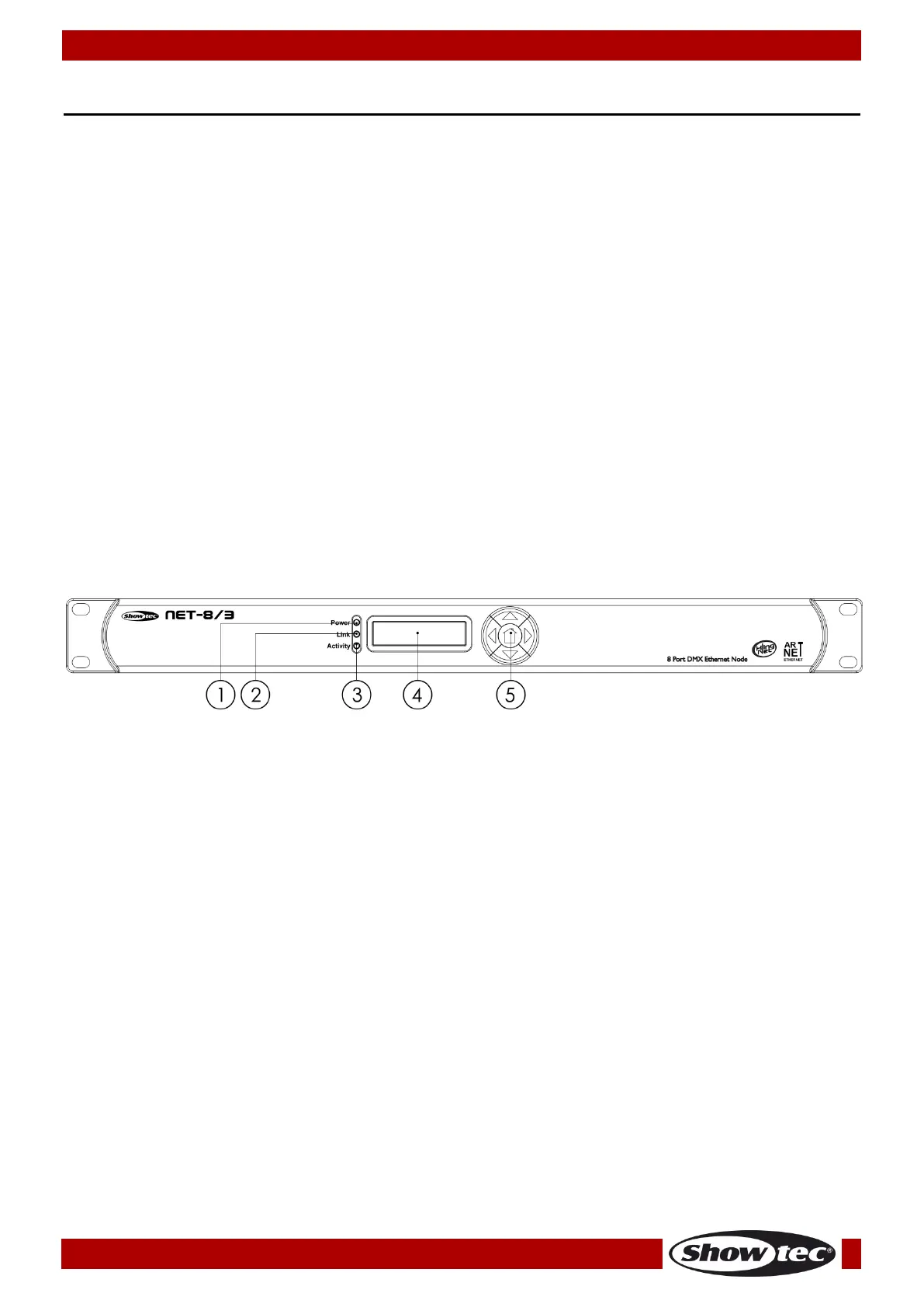

Fig. 01
01) Power LED indicator
This indicator will light up when you switch power on.
02) Link LED indicator
This indicator will light up when a network-signal is received.
03) Activity LED indicator
This indicator will light up when a DMX-signal is received.
04) LCD display
05) Menu buttons

SHOWTEC Net-8/3 Specifications

General

Brand	SHOWTEC
Model	Net-8/3
Category	Network Router
Language	English
