SHOWTEC Net-8/3 User Manual

13
Ordercode: 50804
Net-8/3
03) Press the UP/DOWN buttons to scroll through the numbers, Cancel or Enter.
04) Press the RIGHT button to select three numbers. The selected numbers will be highlighted.
05) Press the UP/DOWN buttons to change the numbers (0-255).
06) Press the LEFT button to go back to the previous step.
07) After editing the numbers, press the UP/DOWN buttons to select Cancel or Enter.
08) Press the RIGHT button to confirm the desired option.

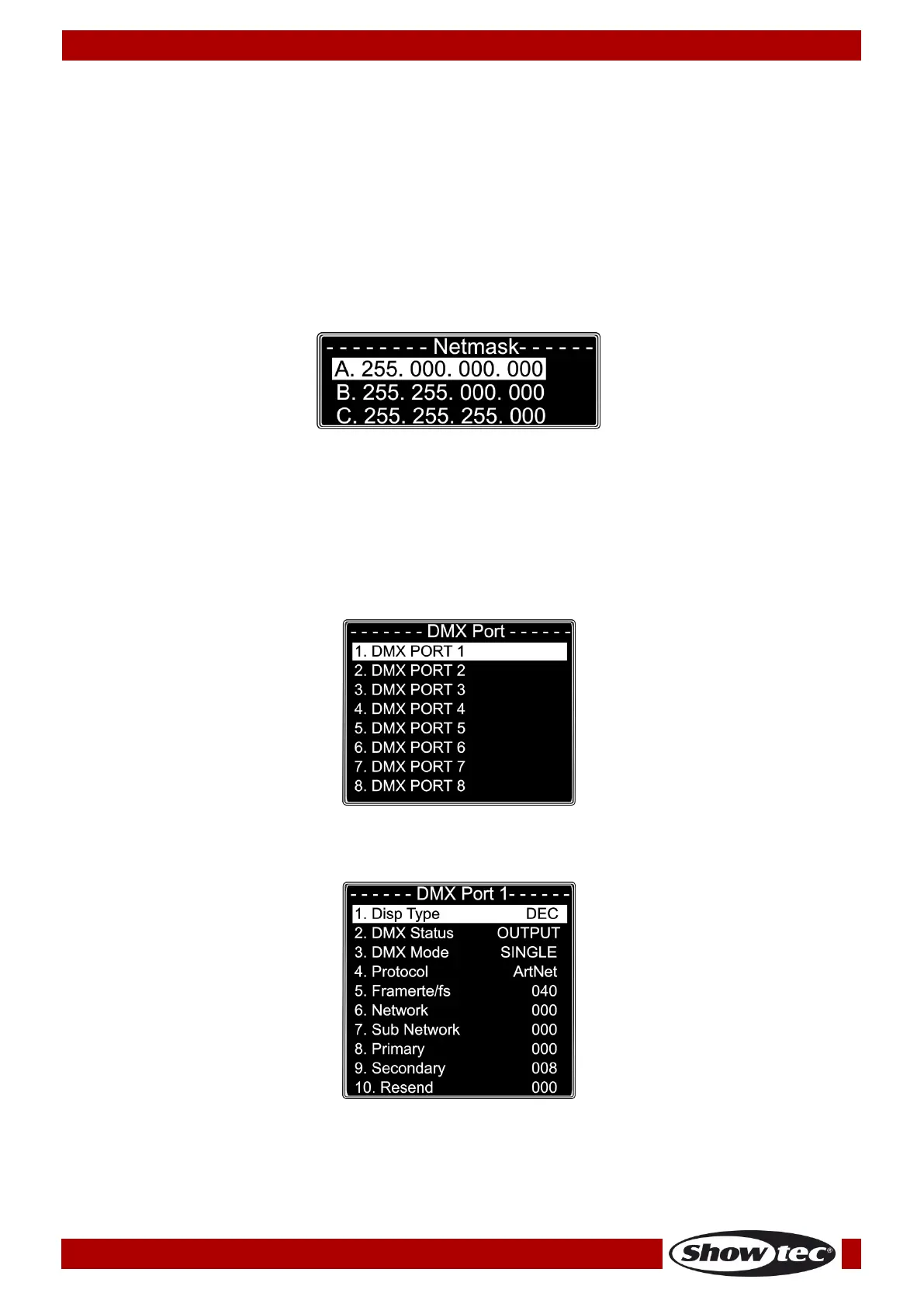

4. Set Netmask
01) Press the LEFT button to enter the main menu.
02) In the main menu, press the UP/DOWN buttons to select Set Netmask and press the RIGHT button to
open the submenu. The display shows:
03) Press the UP/DOWN buttons to scroll through the three options A, B or C.
04) The selected option will be highlighted.
05) Press the RIGHT button to confirm the desired option.
5. Set DMX Port
01) Press the LEFT button to enter the main menu.
02) In the main menu, press the UP/DOWN buttons to select Set DMX PORT and press the RIGHT button to
open the submenu. The display shows:
03) Press the UP/DOWN buttons to scroll through the ports 1-8.
04) Press the RIGHT button to select a port. The selected port will be highlighted.
05) The next display shows:
06) Press the UP/DOWN buttons to scroll through the 10 options. For more explanation see the next page.
07) Press the RIGHT button to select a option. The selected option will be highlighted.
08) Press the UP/DOWN buttons to edit the desired option and confirm with the RIGHT button.
09) Press the LEFT button to go to the previous submenu.
10) Press the LEFT button again to go back to the main menu.
