System Examples

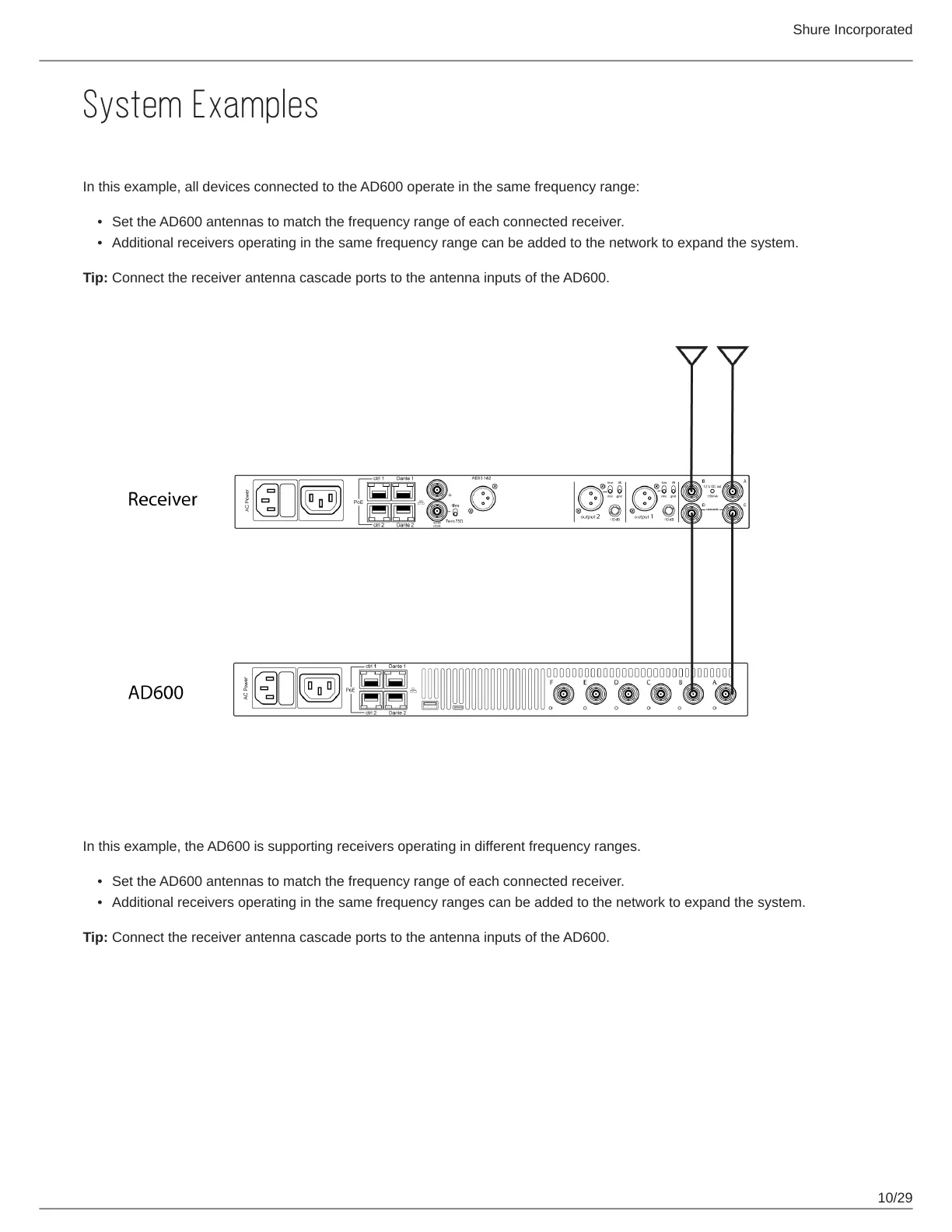

Single Frequency Band System
In this example, all devices connected to the AD600 operate in the same frequency range:
Set the AD600 antennas to match the frequency range of each connected receiver.
Additional receivers operating in the same frequency range can be added to the network to expand the system.
Tip: Connect the receiver antenna cascade ports to the antenna inputs of the AD600.
Multiple Frequency Range System
In this example, the AD600 is supporting receivers operating in different frequency ranges.
Set the AD600 antennas to match the frequency range of each connected receiver.
Additional receivers operating in the same frequency ranges can be added to the network to expand the system.
Tip: Connect the receiver antenna cascade ports to the antenna inputs of the AD600.
