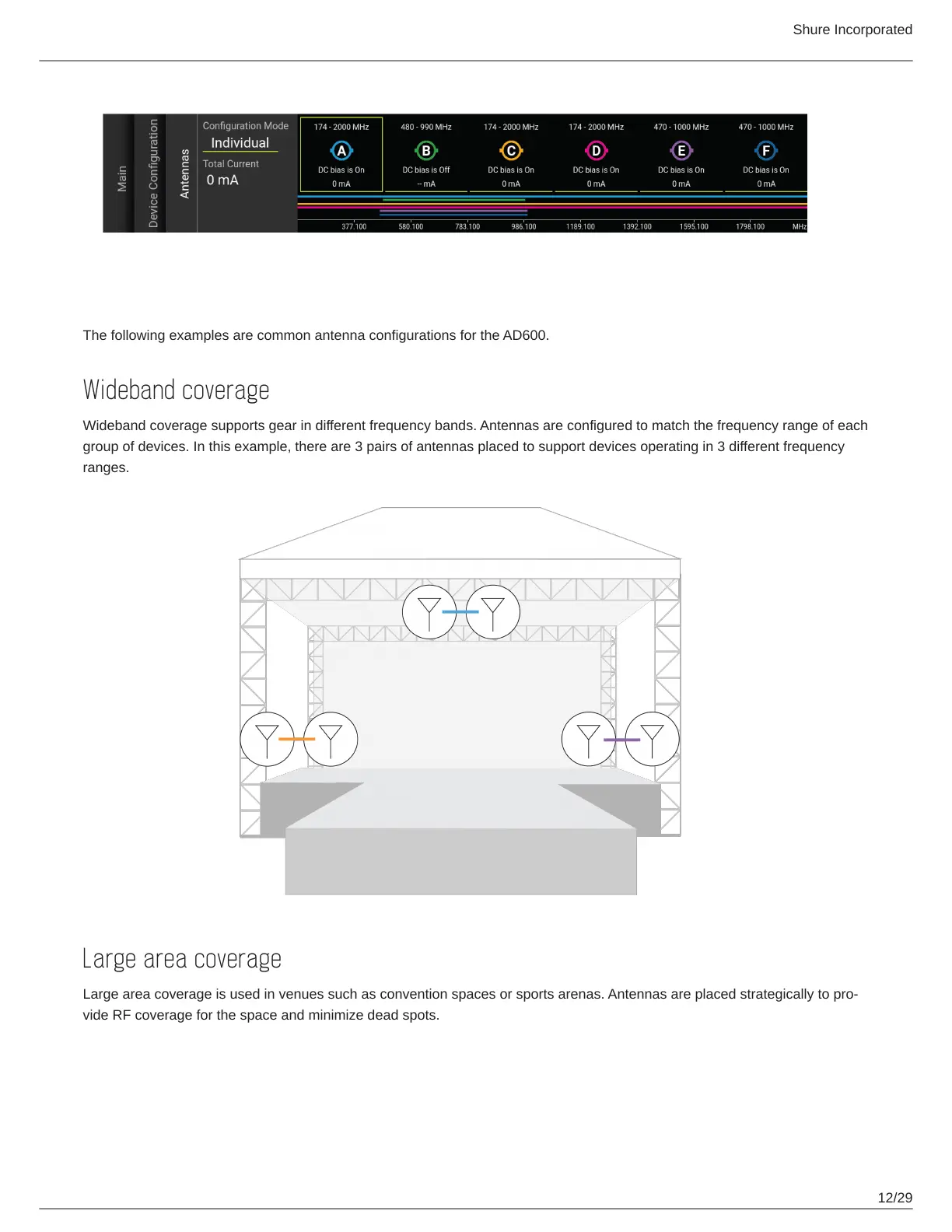

Antenna Configuration Examples
The following examples are common antenna configurations for the AD600.
Wideband coverage
Wideband coverage supports gear in different frequency bands. Antennas are configured to match the frequency range of each
group of devices. In this example, there are 3 pairs of antennas placed to support devices operating in 3 different frequency
ranges.
Large area coverage
Largeareacoverageisusedinvenuessuchasconventionspacesorsportsarenas.Antennasareplacedstrategicallytopro
vide RF coverage for the space and minimize dead spots.
