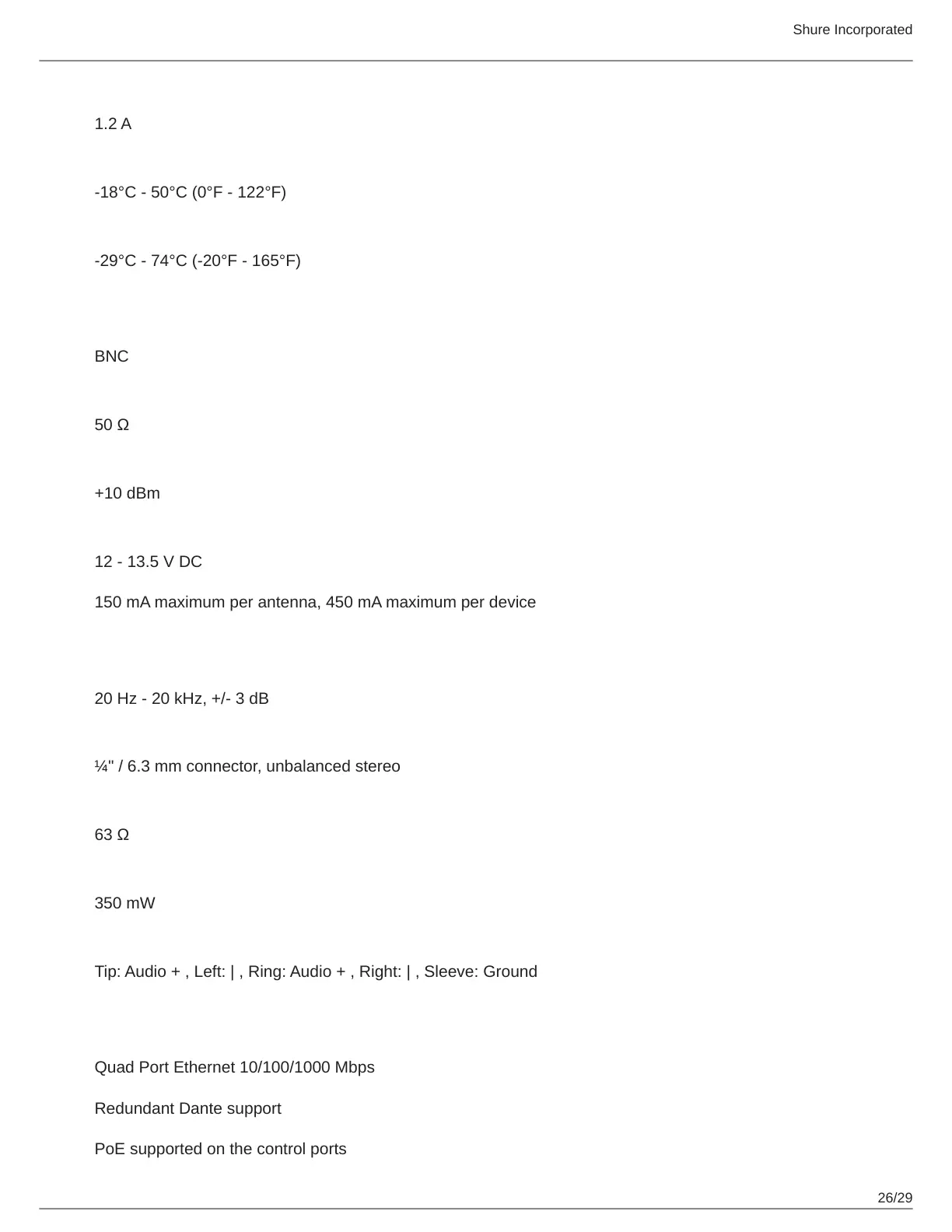

Current Drain
1.2 A
Operating Temperature Range
-18°C - 50°C (0°F - 122°F)
Storage Temperature Range
-29°C - 74°C (-20°F - 165°F)
RF Input
Connector Type
BNC
Impedance
50Ω
Maximum Input Level
+10 dBm
Bias Voltage
12 - 13.5 V DC
150 mA maximum per antenna, 450 mA maximum per device
Headphone Monitor Audio Output
Audio Frequency Response
20 Hz - 20 kHz, +/- 3 dB
Configuration
¼" / 6.3 mm connector, unbalanced stereo
Impedance
63Ω
Maximum Signal Level
350 mW
Pin Assignments
Tip: Audio + , Left: | , Ring: Audio + , Right: | , Sleeve: Ground
Networking
Network Interface
Quad Port Ethernet 10/100/1000 Mbps
Redundant Dante support
PoE supported on the control ports
