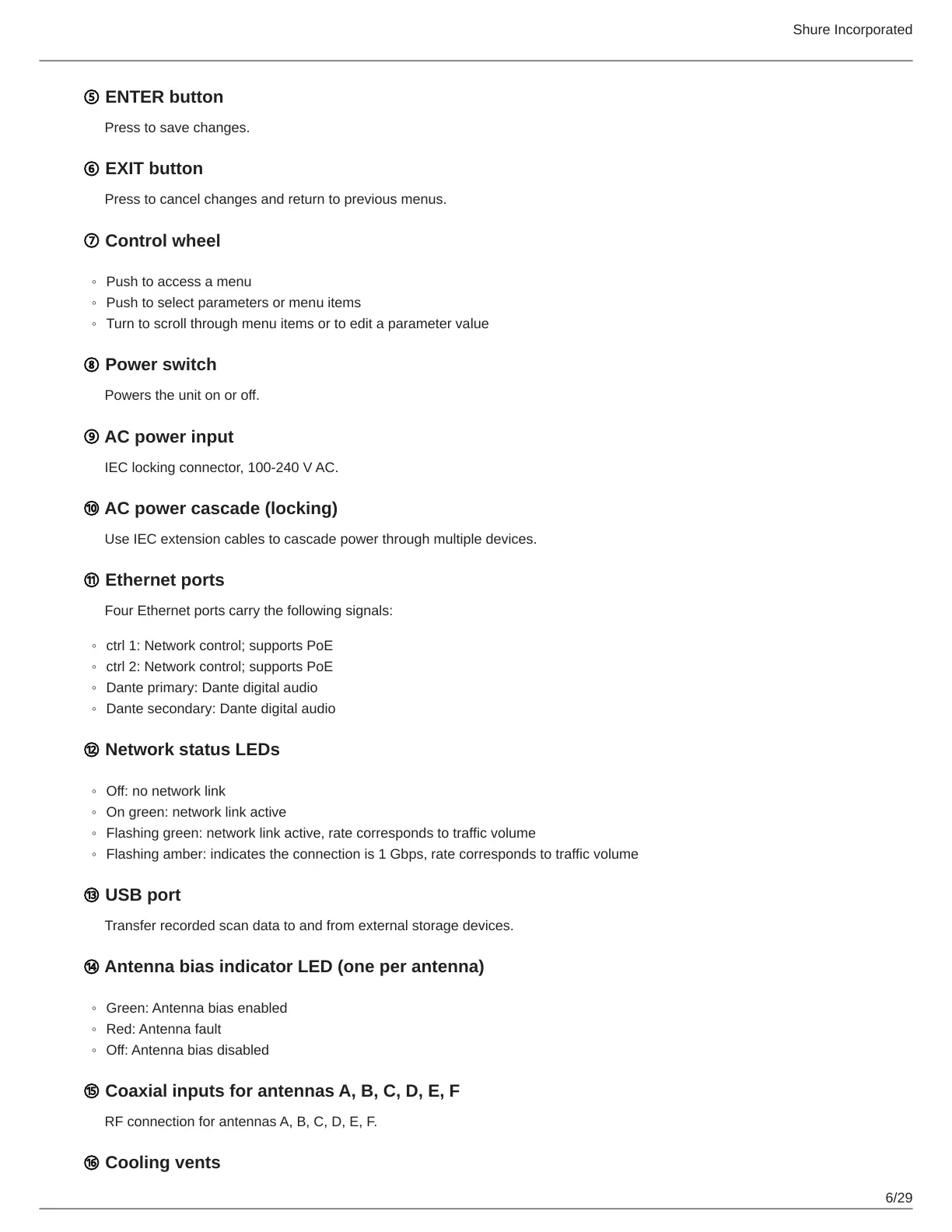

⑤ ENTER button
Press to save changes.
⑥ EXIT button
Press to cancel changes and return to previous menus.
⑦ Control wheel
Push to access a menu
Push to select parameters or menu items
Turn to scroll through menu items or to edit a parameter value
⑧ Power switch
Powers the unit on or off.
⑨ AC power input
IEC locking connector, 100-240 V AC.
⑩ AC power cascade (locking)
Use IEC extension cables to cascade power through multiple devices.
⑪ Ethernet ports
Four Ethernet ports carry the following signals:
ctrl 1: Network control; supports PoE
ctrl 2: Network control; supports PoE
Dante primary: Dante digital audio
Dante secondary: Dante digital audio
⑫ Network status LEDs
Off: no network link
On green: network link active
Flashing green: network link active, rate corresponds to traffic volume
Flashing amber: indicates the connection is 1 Gbps, rate corresponds to traffic volume
⑬ USB port
Transfer recorded scan data to and from external storage devices.
⑭ Antenna bias indicator LED (one per antenna)
Green: Antenna bias enabled
Red: Antenna fault
Off: Antenna bias disabled
⑮ Coaxial inputs for antennas A, B, C, D, E, F
RF connection for antennas A, B, C, D, E, F.
⑯ Cooling vents
