Shure BLX1 User Manual

Shure Incorporated
11/25
•
•
•
•
•
Getting Good Sound

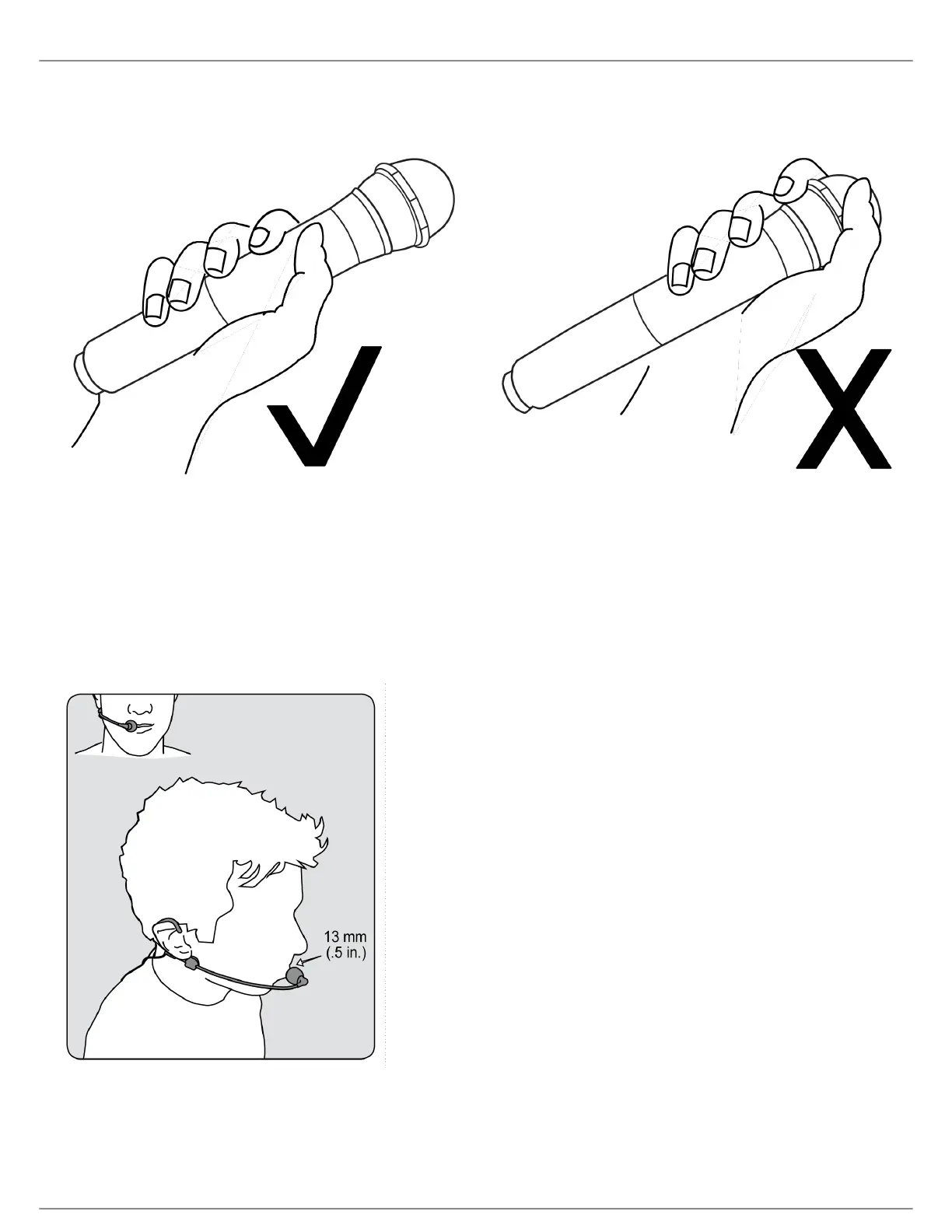

Correct Microphone Placement
Hold the microphone within 12 inches from the sound source. For a warmer sound with increased bass
presence, move the microphone closer.
Do not cover grille with hand.
Wearing the Headworn Microphone
Position the headworn microphone 13 mm (1/2 in.) from the corner of your mouth.
Position lavalier and headworn microphones so that clothing, jewelry, or other items do not bump or rub
against the microphone.
Adjusting Gain
Monitor the audio LED indicator on the receiver front panel when setting the transmitter gain.
Green: normal levels

Shure BLX1 Specifications

General

RF power	10 mW
Form factor	Bodypack transmitter
Product color	Black
Built-in display	No
Housing material	Plastic
Maximum outdoor range	91 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	662 - 686 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	50 - 15000 Hz
Total Harmonic Distortion (THD)	0.5 %
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	14 h
Number of batteries supported	2

Weight and Dimensions

Depth	21 mm
Width	64 mm
Height	110 mm
Weight	75 g
