Features

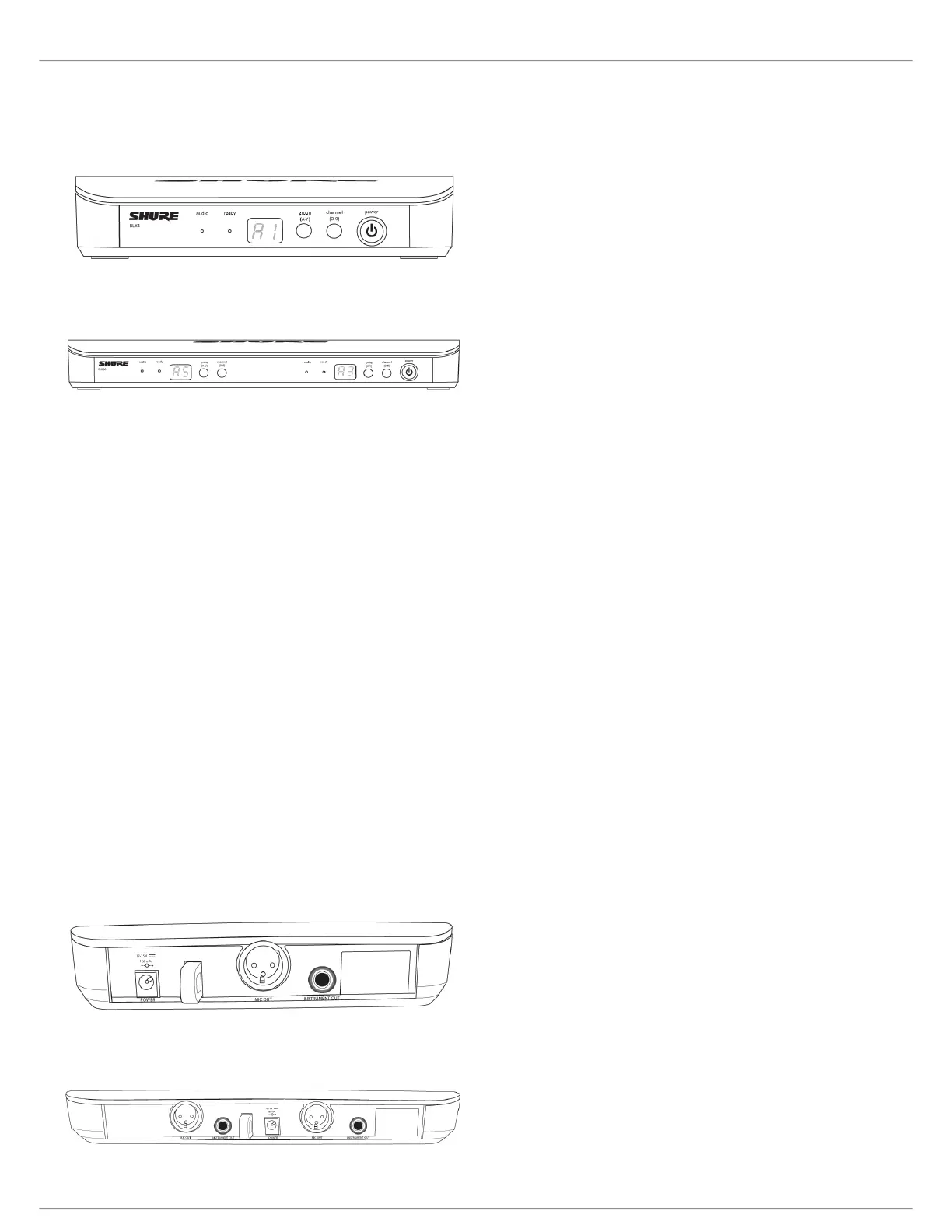

Front Panel
BLX4
BLX88
① audio LED
Indicates strength of incoming audio signal: green for normal and red for overload.
② ready LED
Green light indicates system is ready for use and receiving transmitter signal.
③ LED Display
Displays group and channel setting.
④ group and channel Buttons
Scan: Push and release group button to scan for an open group and channel.
Manual: Push and hold group button to select a group. Push channel button to select a channel in the current
group.
⑤ power Button
Push and hold to turn power on or off.
Back Panel
BLX4

Shure BLX1 Specifications

General

RF power	10 mW
Form factor	Bodypack transmitter
Product color	Black
Built-in display	No
Housing material	Plastic
Maximum outdoor range	91 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	662 - 686 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	50 - 15000 Hz
Total Harmonic Distortion (THD)	0.5 %
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	14 h
Number of batteries supported	2

Weight and Dimensions

Depth	21 mm
Width	64 mm
Height	110 mm
Weight	75 g
