Shure BLX1 User Manual

Shure Incorporated
6/25
BLX88
① DC Power Jack
② Adapter Cord Tie-Off
③ XLR microphone output jack (MIC out)
④ 6.35 mm (1/4") instrument level output jack (instrument out)

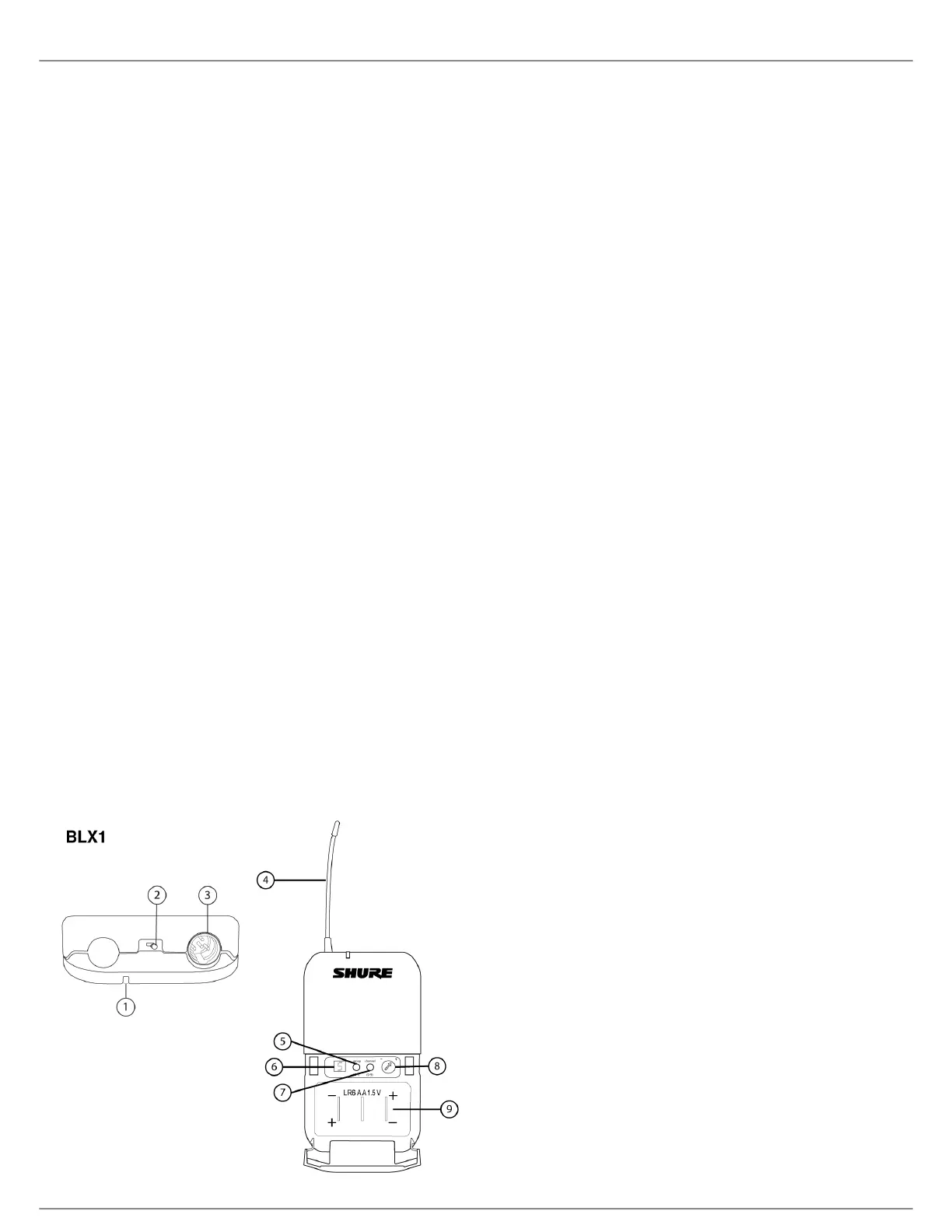

BLX1
① LED Indicator
Displays power and battery status (see Transmitter LED Indicators).
② power Switch
Toggles power on or off.
③ 4-Pin Microphone Input Jack (TA4 connector)
④ Antenna
⑤ group Button
Changes group setting.
⑥ LED Display
Displays group and channel setting.
⑦ channel Button
Changes channel setting.
⑧ Battery Compartment
⑨ Audio Gain Adjustment
Rotate to increase or decrease transmitter gain.

Shure BLX1 Specifications

General

RF power	10 mW
Form factor	Bodypack transmitter
Product color	Black
Built-in display	No
Housing material	Plastic
Maximum outdoor range	91 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	662 - 686 MHz
Operating temperature (T-T)	-18 - 57 °C
Microphone frequency response	50 - 15000 Hz
Total Harmonic Distortion (THD)	0.5 %
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	14 h
Number of batteries supported	2

Weight and Dimensions

Depth	21 mm
Width	64 mm
Height	110 mm
Weight	75 g
