LED Indicator Status
Rapidly Flashing Red Controls locked
Solid Red Battery power low (less than 1 hour remaining*)
Flashing Red and shuts off Batteries dead (change batteries to power on transmitter)
*For alkaline batteries only. For rechargeable batteries, solid red means the batteries are dead.
Single System Set Up
Before you begin, turn off all transmitters and turn on any equipment (other microphones or personal monitoring
systems) that could cause interference during the performance.
Press and release the group button on the receiver.
The receiver scans for the clearest group and channel.
Note: If you want to stop the scan, push the group button again.
Turn on transmitter and change the group and channel to match the receiver (See Setting Transmitter Group
and Channel).
Once the system is set up, perform an audio check and adjust the gain if necessary.
Setting Transmitter Group and Channel
Transmitter group and channel must be manually set to match the receiver.
Group (letter)

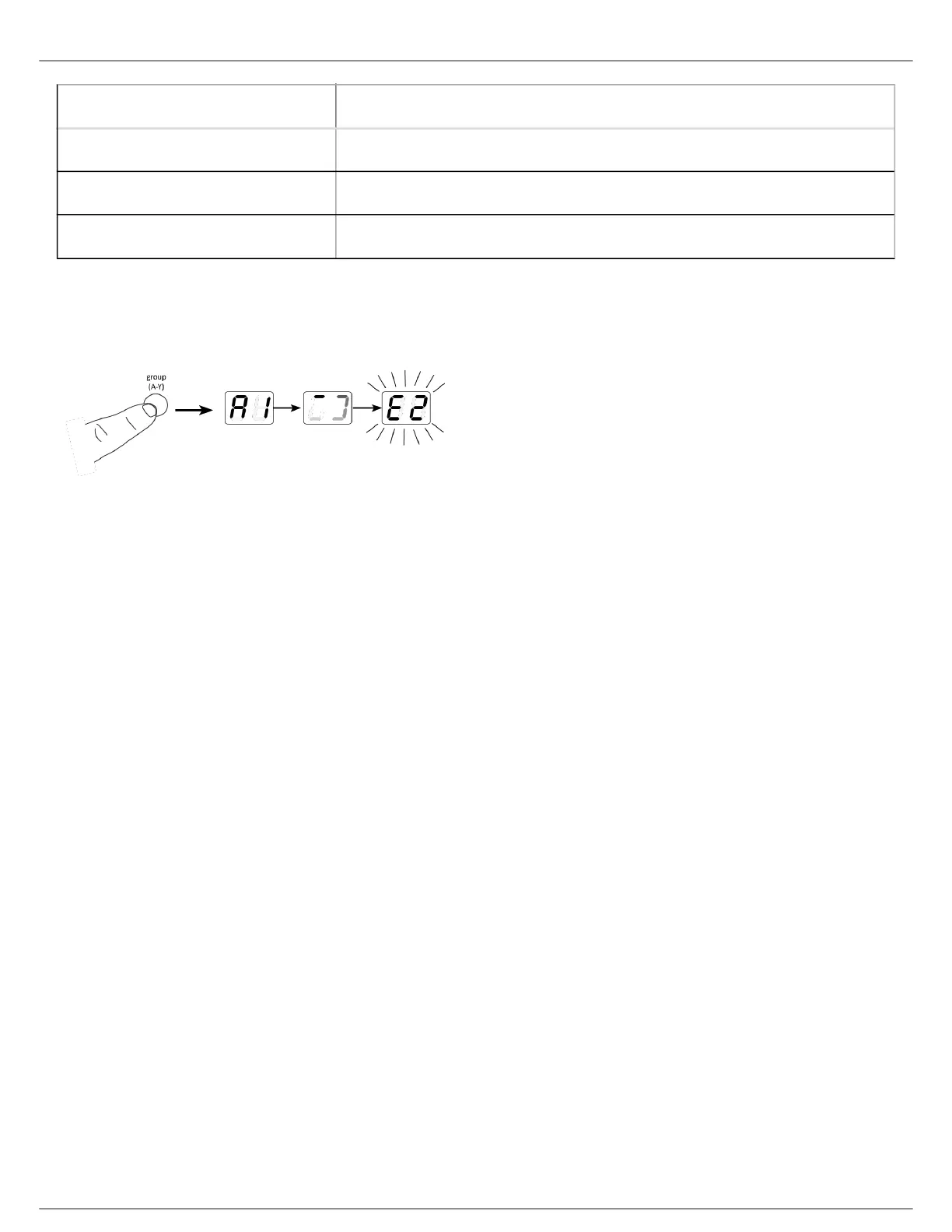

Press and release the group button on the transmitter to activate the display. Press the group button again
and the display flashes.
While the display is flashing, press the group button again to advance to the desired group setting.
Channel (number)
If channel needs to be changed, follow the same procedure using the channel button instead of the group button.
Note:
When the group and channel correctly match the receiver, the ready LED on receiver illuminates.
After manual setup, the transmitter alternately displays the group and channel setting for about two seconds.
