Shure GLXD2 User Manual

Shure Incorporated
11/37
◦
◦
◦
◦
◦

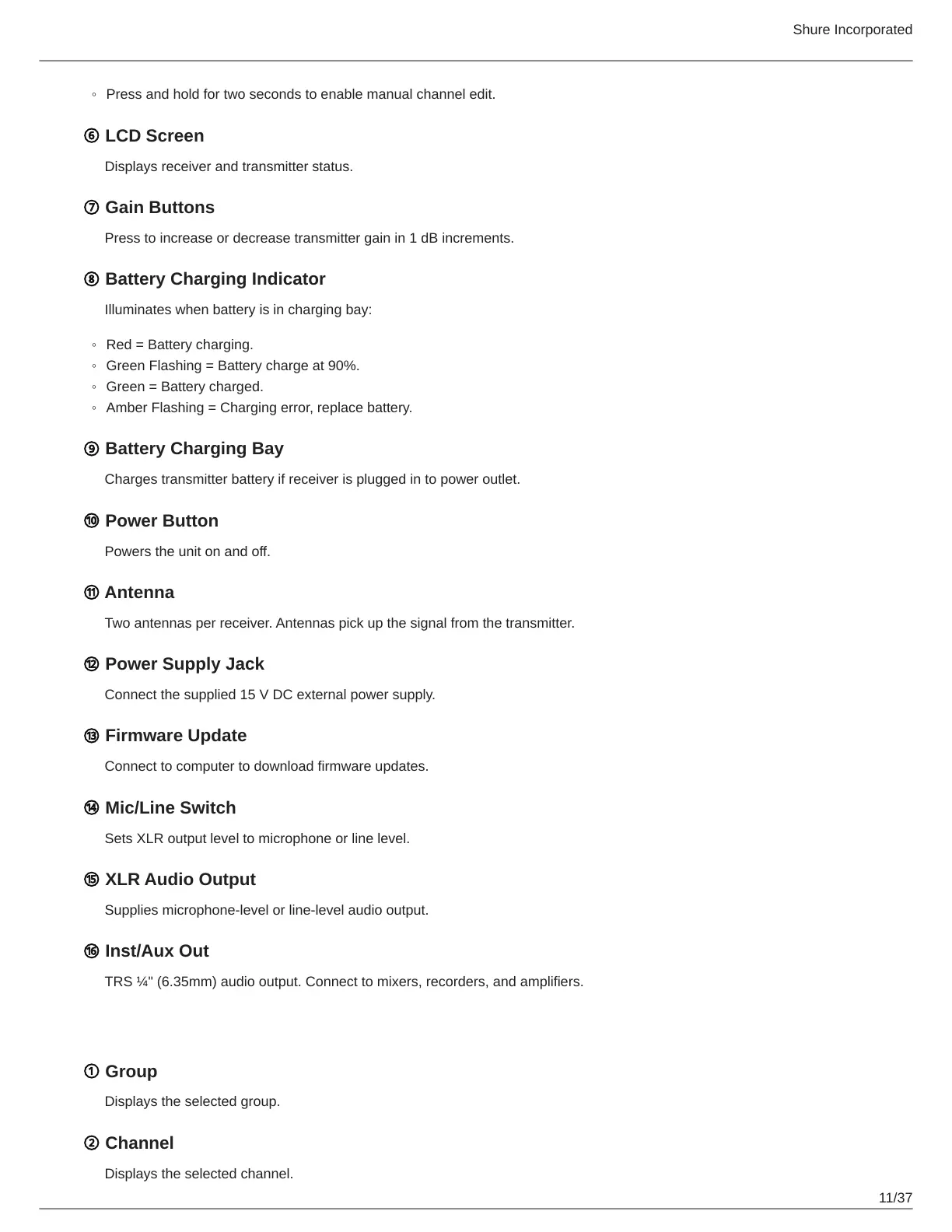

Press and hold for two seconds to enable manual channel edit.
⑥ LCD Screen
Displays receiver and transmitter status.
⑦ Gain Buttons
Press to increase or decrease transmitter gain in 1 dB increments.
⑧ Battery Charging Indicator
Illuminates when battery is in charging bay:
Red = Battery charging.
Green Flashing = Battery charge at 90%.
Green = Battery charged.
Amber Flashing = Charging error, replace battery.
⑨ Battery Charging Bay
Charges transmitter battery if receiver is plugged in to power outlet.
⑩ Power Button
Powers the unit on and off.
⑪ Antenna
Two antennas per receiver. Antennas pick up the signal from the transmitter.
⑫ Power Supply Jack
Connect the supplied 15 V DC external power supply.
⑬ Firmware Update
Connect to computer to download firmware updates.
⑭ Mic/Line Switch
Sets XLR output level to microphone or line level.
⑮ XLR Audio Output
Supplies microphone-level or line-level audio output.
⑯ Inst/Aux Out
TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers.
Receiver Screen
① Group
Displays the selected group.
② Channel
Displays the selected channel.

Shure GLXD2 Specifications

General

XLR out	1
RF power	10 mW
Form factor	Handheld transmitter
Product color	Black, Silver
LED indicators	Status
Built-in display	No
Housing material	Metal, Plastic
Maximum indoor range	30 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Microphone frequency response	50 - 15000 Hz
Battery type	Lithium-Ion (Li-Ion)
Battery voltage	3.7 V
Battery life (max)	16 h
Battery low indication	Yes

Weight and Dimensions

Width	51 mm
Height	252 mm
Weight	267 g
