Shure GLXD2 User Manual

Shure Incorporated
12/37
◦
◦
◦

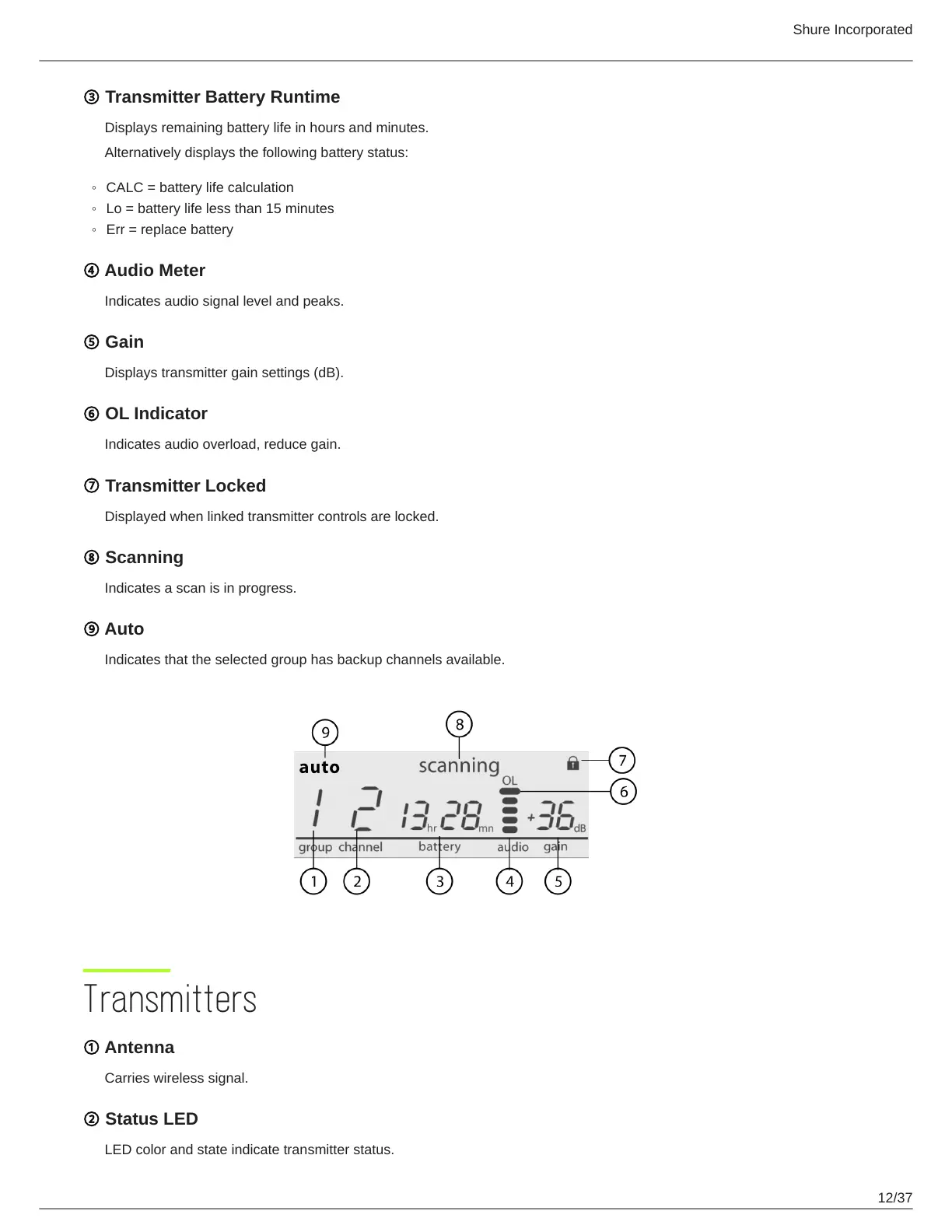

③ Transmitter Battery Runtime
Displays remaining battery life in hours and minutes.
Alternatively displays the following battery status:
CALC = battery life calculation
Lo = battery life less than 15 minutes
Err = replace battery
④ Audio Meter
Indicates audio signal level and peaks.
⑤ Gain
Displays transmitter gain settings (dB).
⑥ OL Indicator
Indicates audio overload, reduce gain.
⑦ Transmitter Locked
Displayed when linked transmitter controls are locked.
⑧ Scanning
Indicates a scan is in progress.
⑨ Auto
Indicates that the selected group has backup channels available.
Transmitters
① Antenna
Carries wireless signal.
② Status LED
LED color and state indicate transmitter status.

Shure GLXD2 Specifications

General

XLR out	1
RF power	10 mW
Form factor	Handheld transmitter
Product color	Black, Silver
LED indicators	Status
Built-in display	No
Housing material	Metal, Plastic
Maximum indoor range	30 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Microphone frequency response	50 - 15000 Hz
Battery type	Lithium-Ion (Li-Ion)
Battery voltage	3.7 V
Battery life (max)	16 h
Battery low indication	Yes

Weight and Dimensions

Width	51 mm
Height	252 mm
Weight	267 g
