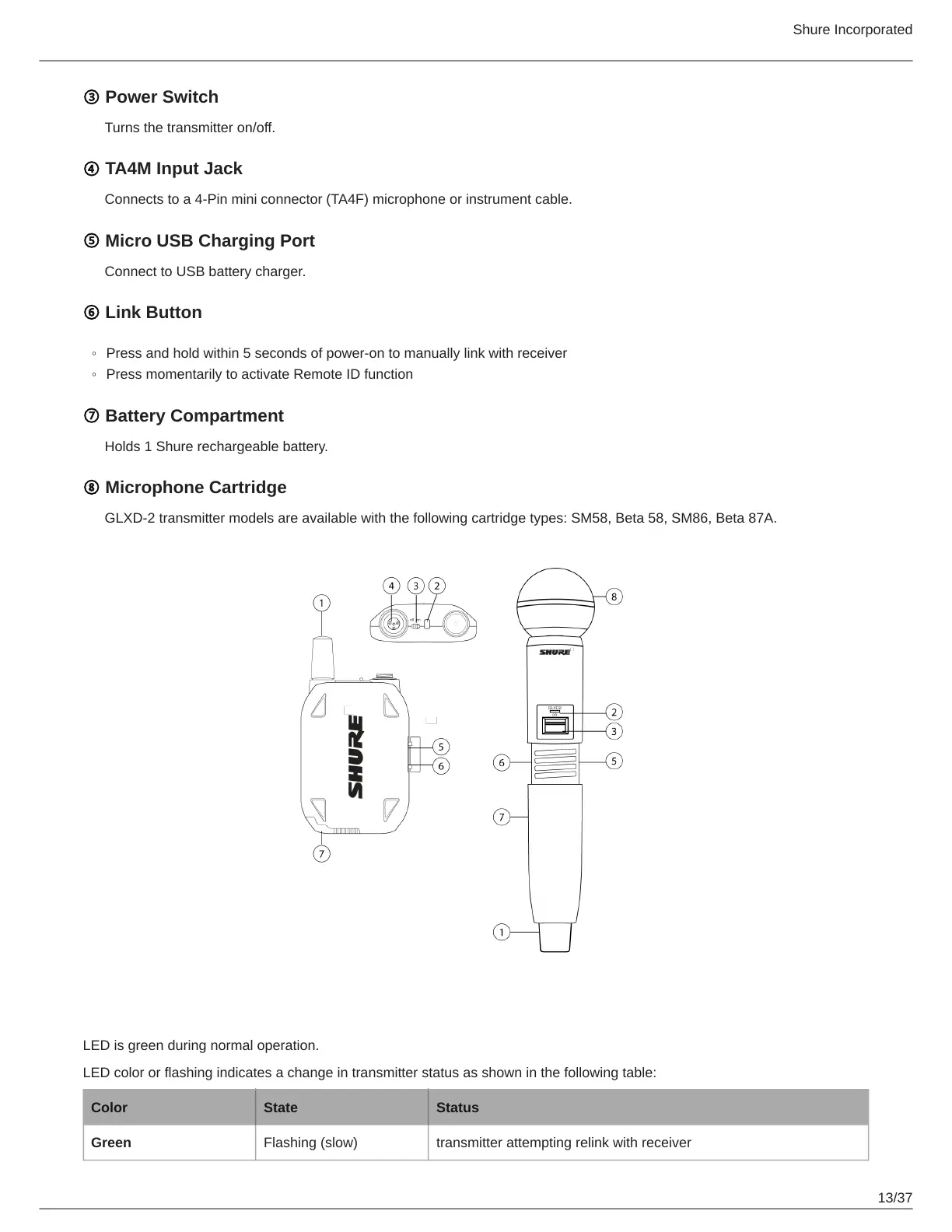

Shure GLXD2 User Manual

Shure Incorporated
13/37
◦
◦
③ Power Switch
Turns the transmitter on/off.
④ TA4M Input Jack
Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.
⑤ Micro USB Charging Port
Connect to USB battery charger.
⑥ Link Button
Press and hold within 5 seconds of power-on to manually link with receiver
Press momentarily to activate Remote ID function
⑦ Battery Compartment
Holds 1 Shure rechargeable battery.
⑧ Microphone Cartridge
GLXD-2 transmitter models are available with the following cartridge types: SM58, Beta 58, SM86, Beta 87A.
Transmitter Status LED
LED is green during normal operation.
LED color or flashing indicates a change in transmitter status as shown in the following table:
Color State Status
Green Flashing (slow) transmitter attempting relink with receiver

Shure GLXD2 Specifications

General

XLR out	1
RF power	10 mW
Form factor	Handheld transmitter
Product color	Black, Silver
LED indicators	Status
Built-in display	No
Housing material	Metal, Plastic
Maximum indoor range	30 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Microphone frequency response	50 - 15000 Hz
Battery type	Lithium-Ion (Li-Ion)
Battery voltage	3.7 V
Battery life (max)	16 h
Battery low indication	Yes

Weight and Dimensions

Width	51 mm
Height	252 mm
Weight	267 g
