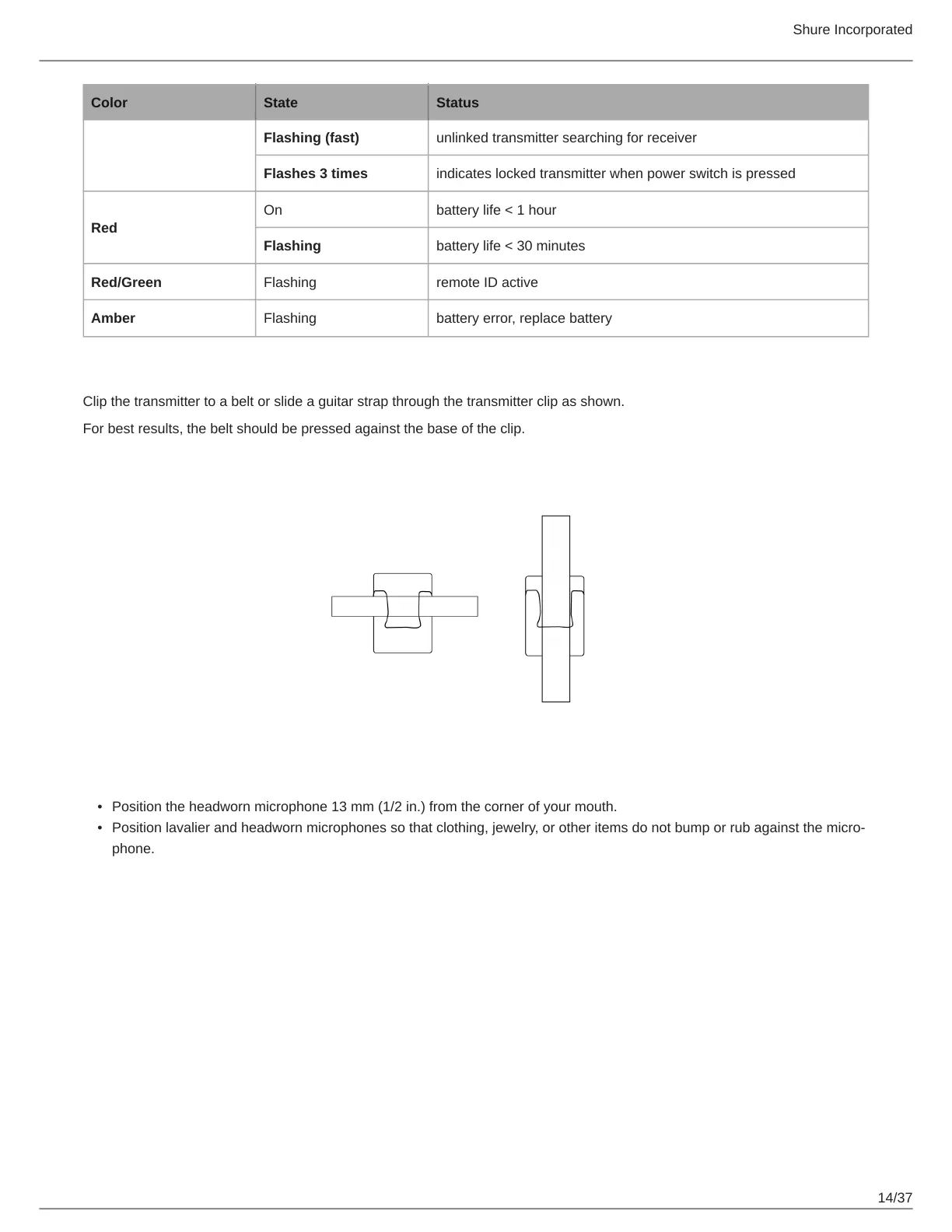

Color State Status
Flashing (fast) unlinked transmitter searching for receiver
Flashes 3 times indicates locked transmitter when power switch is pressed
Red
On battery life < 1 hour
Flashing battery life < 30 minutes
Red/Green Flashing remote ID active
Amber Flashing battery error, replace battery
Wearing the Bodypack Transmitter
Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.
For best results, the belt should be pressed against the base of the clip.
Wearing the Headworn Microphone
Position the headworn microphone 13 mm (1/2 in.) from the corner of your mouth.
Position lavalier and headworn microphones so that clothing, jewelry, or other items do not bump or rub against the micro
phone.

Shure GLXD2 Specifications

General

XLR out	1
RF power	10 mW
Form factor	Handheld transmitter
Product color	Black, Silver
LED indicators	Status
Built-in display	No
Housing material	Metal, Plastic
Maximum indoor range	30 m
Operating frequency type	Ultra High Frequency (UHF)
Radio Frequency (RF) range	2404 - 2478 MHz
Microphone frequency response	50 - 15000 Hz
Battery type	Lithium-Ion (Li-Ion)
Battery voltage	3.7 V
Battery life (max)	16 h
Battery low indication	Yes

Weight and Dimensions

Width	51 mm
Height	252 mm
Weight	267 g
