Shure Incorporated
10/100
◦
◦
◦

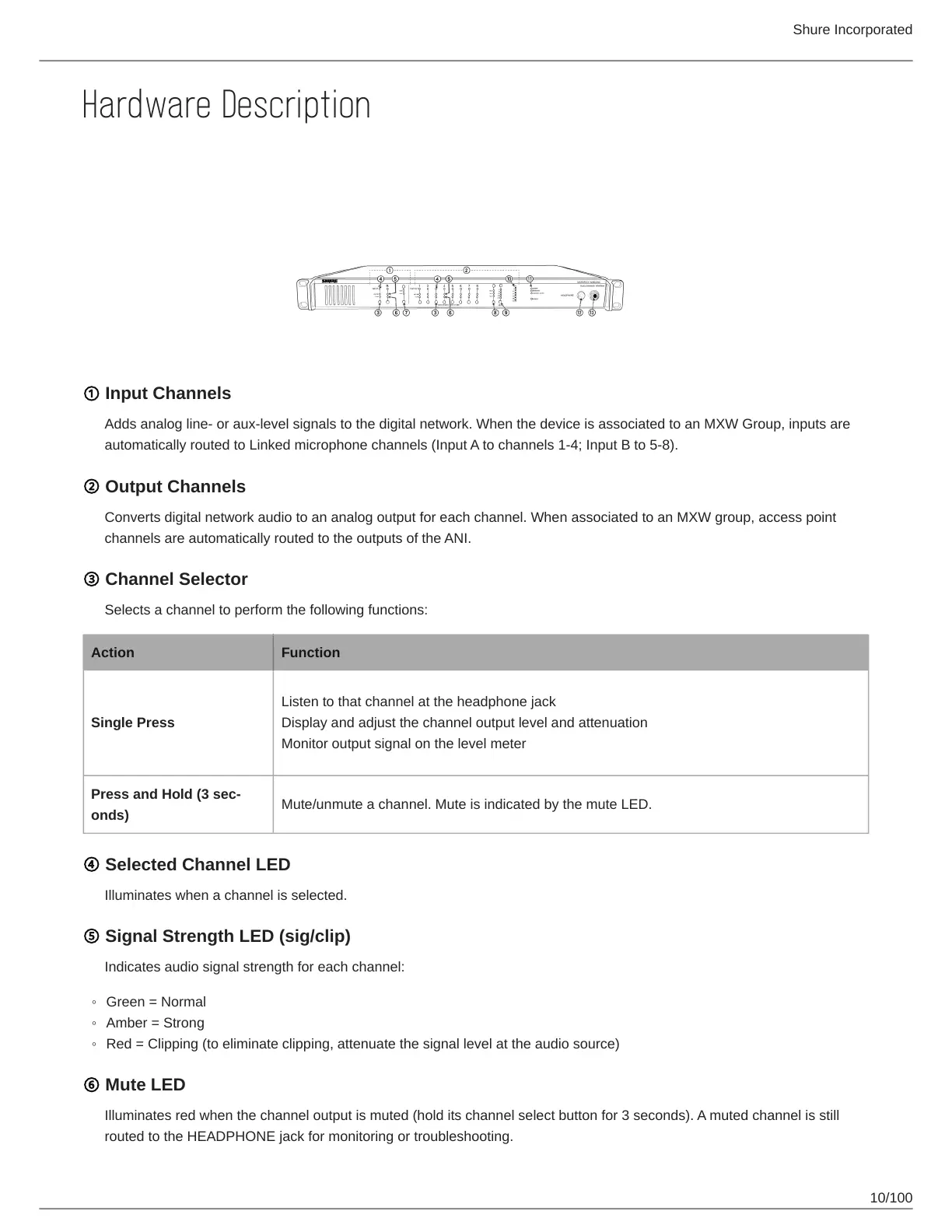

Hardware Description
Audio Network Interface (ANI)
Front Panel
① Input Channels
Adds analog line- or aux-level signals to the digital network. When the device is associated to an MXW Group, inputs are
automatically routed to Linked microphone channels (Input A to channels 1-4; Input B to 5-8).
② Output Channels
Converts digital network audio to an analog output for each channel. When associated to an MXW group, access point
channels are automatically routed to the outputs of the ANI.
③ Channel Selector
Selects a channel to perform the following functions:
Action Function
Single Press
Listen to that channel at the headphone jack
Display and adjust the channel output level and attenuation
Monitor output signal on the level meter
Press and Hold (3 sec
onds)
Mute/unmute a channel. Mute is indicated by the mute LED.
④ Selected Channel LED
Illuminates when a channel is selected.
⑤ Signal Strength LED (sig/clip)
Indicates audio signal strength for each channel:
Green = Normal
Amber = Strong
Red = Clipping (to eliminate clipping, attenuate the signal level at the audio source)
⑥ Mute LED
Illuminates red when the channel output is muted (hold its channel select button for 3 seconds). A muted channel is still
routed to the HEADPHONE jack for monitoring or troubleshooting.
