System Set Up
Group Devices to Form Audio Channels
Use the group configuration to form the audio channel between the microphone, the access point (APT), charger and audio
output device. The audio channel establishes the audio routing, RF coordination, and data control for a set of devices. Groups
are comprised of networked devices (set to the same subnet). A component can belong to one group at a time.
Start with the APT and select the corresponding devices:
Chargers: for linking microphones
Audio outputs: for routing audio to analog outputs

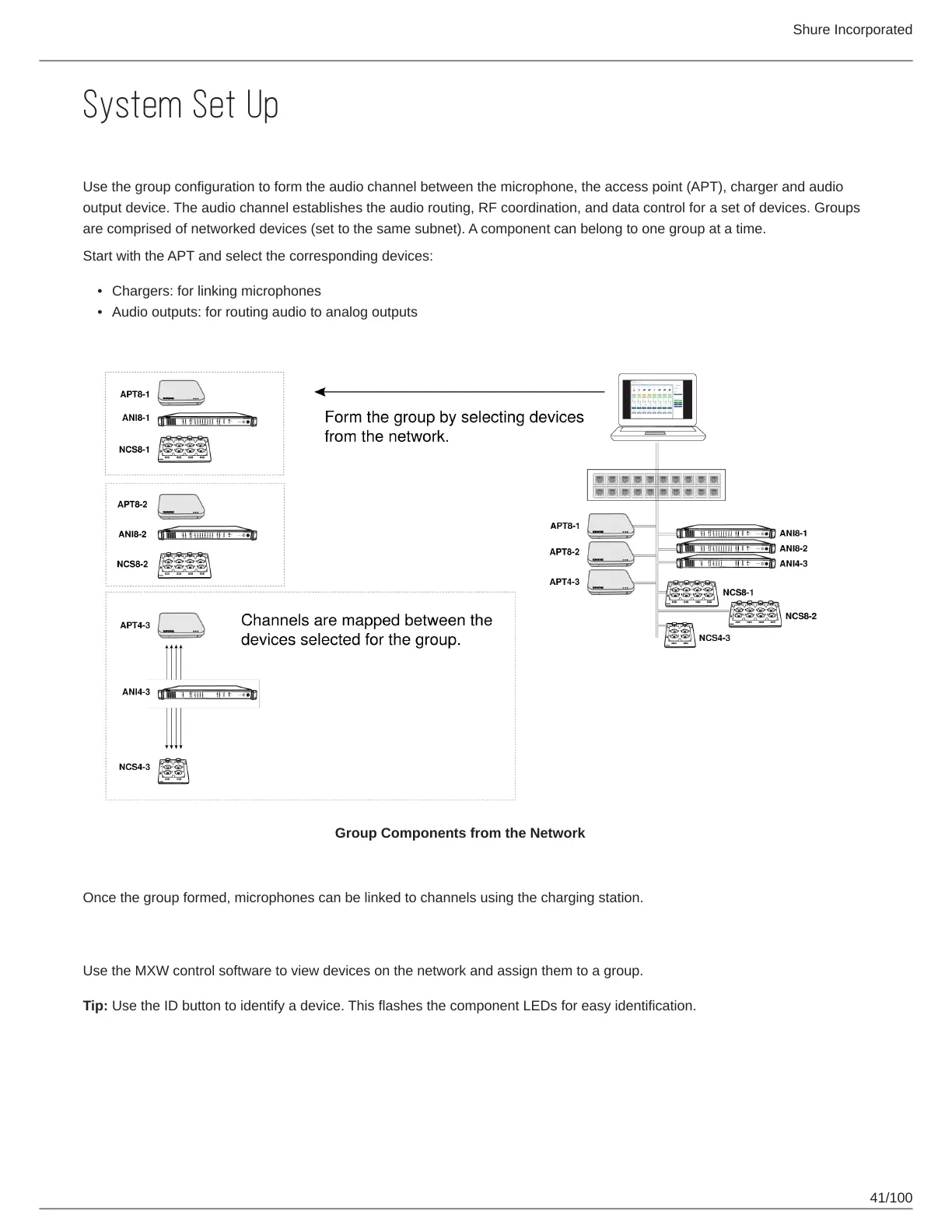

Group Components from the Network
Once the group formed, microphones can be linked to channels using the charging station.
Select Devices for the Group
Use the MXW control software to view devices on the network and assign them to a group.
Tip: Use the ID button to identify a device. This flashes the component LEDs for easy identification.
