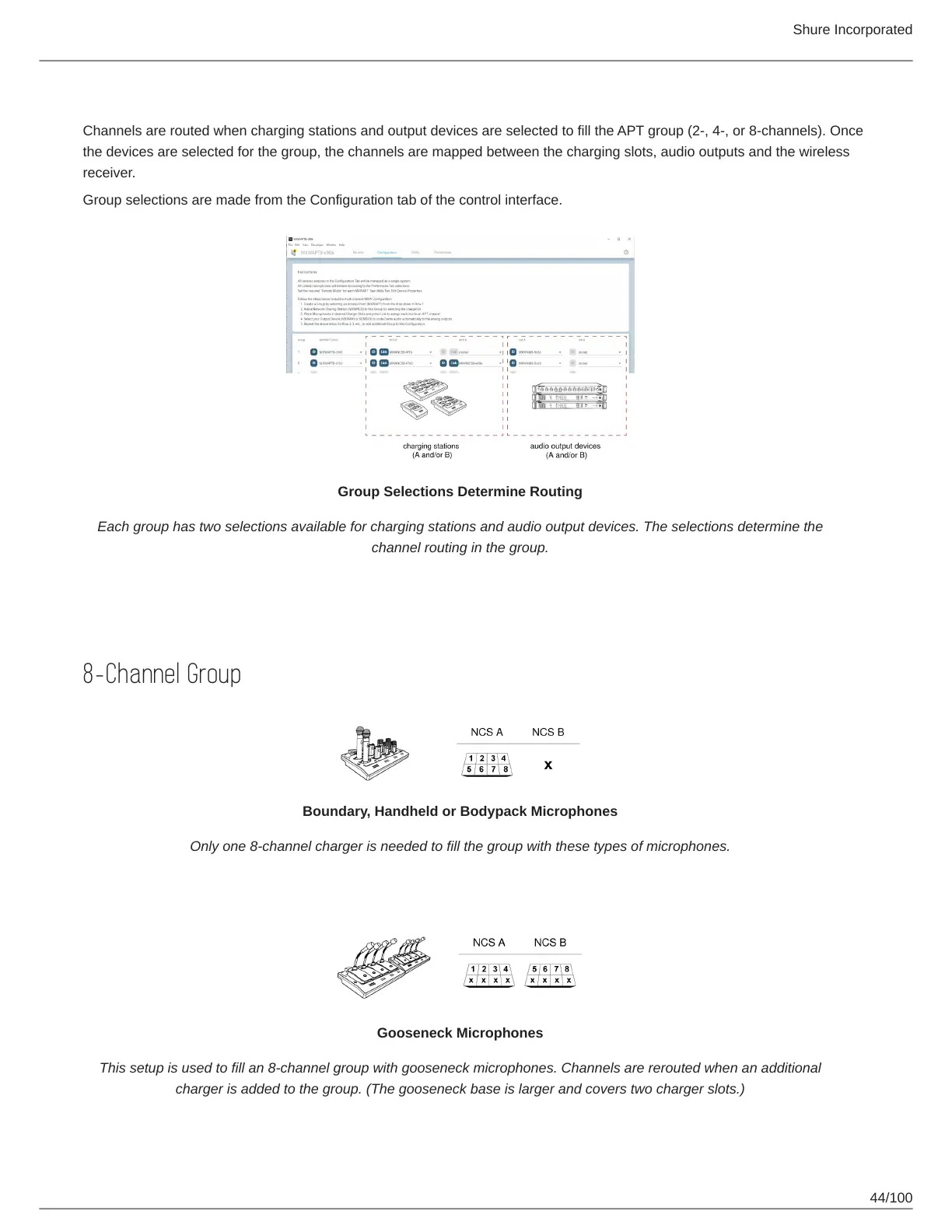

Channel Routing between Devices
Channels are routed when charging stations and output devices are selected to fill the APT group (2-, 4-, or 8-channels). Once
the devices are selected for the group, the channels are mapped between the charging slots, audio outputs and the wireless
receiver.
Group selections are made from the Configuration tab of the control interface.
Group Selections Determine Routing
Each group has two selections available for charging stations and audio output devices. The selections determine the
channel routing in the group.
Charging Station Examples
8-Channel Group
Boundary, Handheld or Bodypack Microphones
Only one 8-channel charger is needed to fill the group with these types of microphones.
Gooseneck Microphones
This setup is used to fill an 8-channel group with gooseneck microphones. Channels are rerouted when an additional
charger is added to the group. (The gooseneck base is larger and covers two charger slots.)
