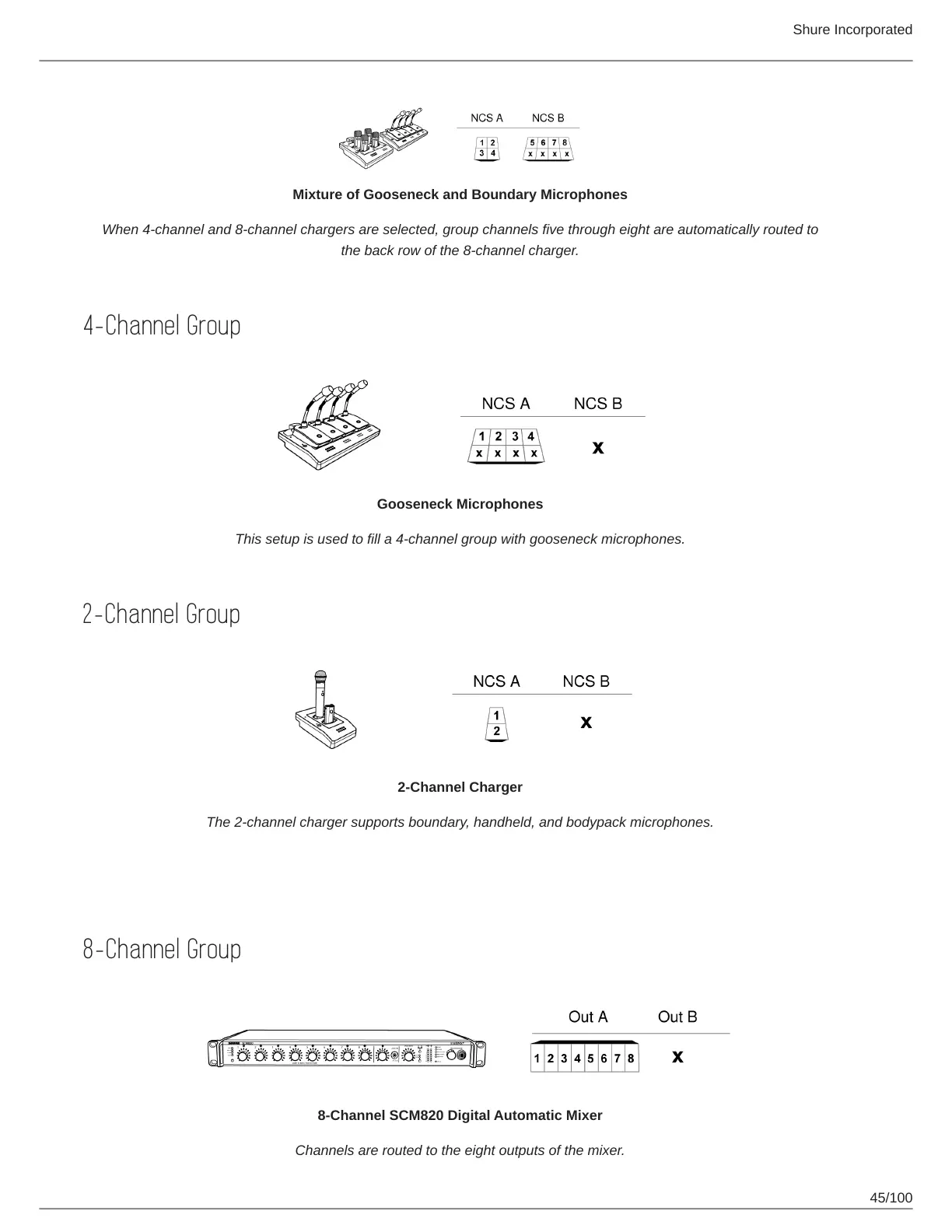

Mixture of Gooseneck and Boundary Microphones
When 4-channel and 8-channel chargers are selected, group channels five through eight are automatically routed to
the back row of the 8-channel charger.
4-Channel Group
Gooseneck Microphones
This setup is used to fill a 4-channel group with gooseneck microphones.
2-Channel Group
2-Channel Charger
The 2-channel charger supports boundary, handheld, and bodypack microphones.
Audio Output Examples
8-Channel Group
8-Channel SCM820 Digital Automatic Mixer
Channels are routed to the eight outputs of the mixer.
