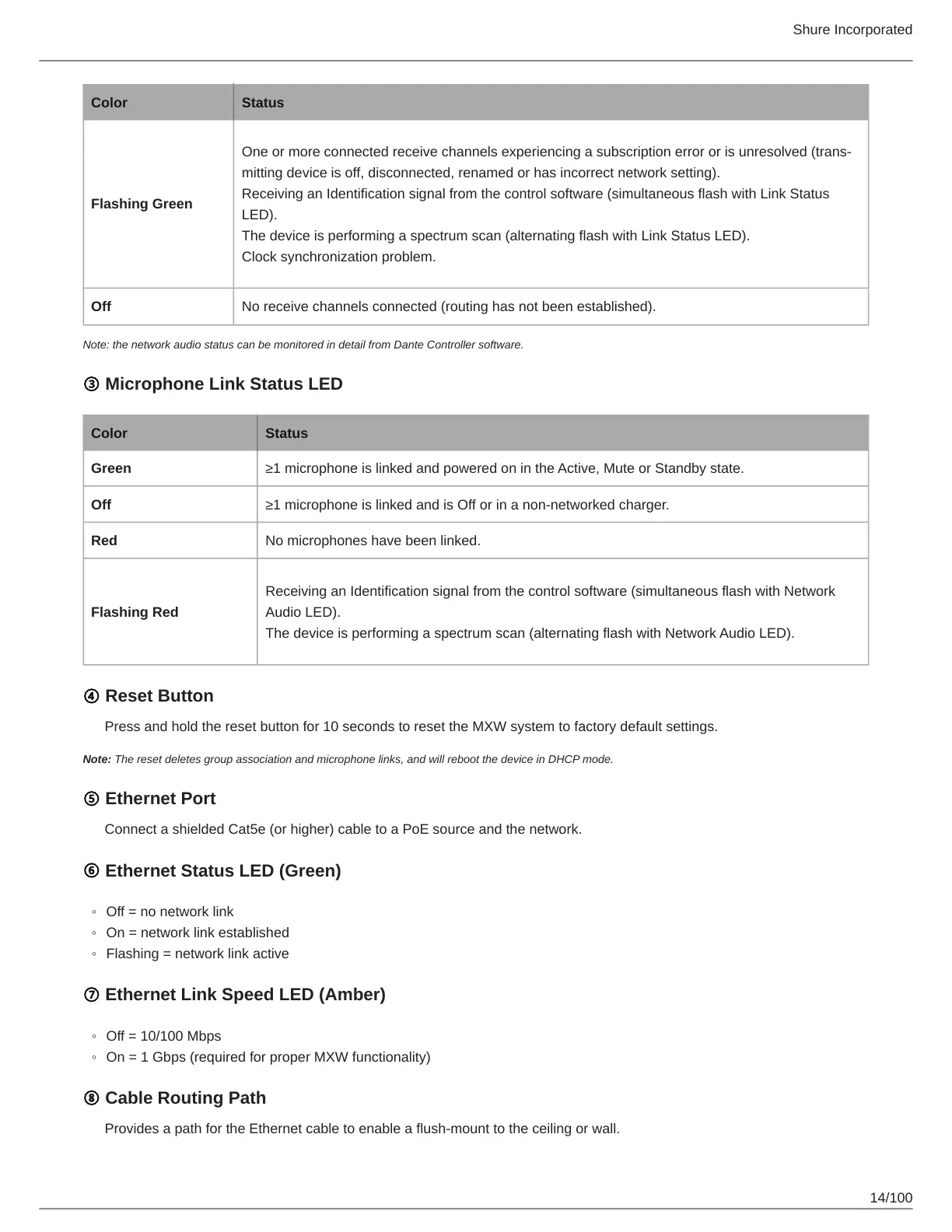

14/100
◦
◦
◦
◦
◦
Color Status
Flashing Green
Oneormoreconnectedreceivechannelsexperiencingasubscriptionerrororisunresolved(trans
mitting device is off, disconnected, renamed or has incorrect network setting).
Receiving an Identification signal from the control software (simultaneous flash with Link Status
LED).
The device is performing a spectrum scan (alternating flash with Link Status LED).
Clock synchronization problem.
Off No receive channels connected (routing has not been established).
Note: the network audio status can be monitored in detail from Dante Controller software.
③ Microphone Link Status LED
Color Status
Green ≥1microphoneislinkedandpoweredonintheActive,MuteorStandbystate.
Off ≥1microphoneislinkedandisOfforinanonnetworkedcharger.
Red No microphones have been linked.
Flashing Red
Receiving an Identification signal from the control software (simultaneous flash with Network
Audio LED).
The device is performing a spectrum scan (alternating flash with Network Audio LED).
④ Reset Button
Press and hold the reset button for 10 seconds to reset the MXW system to factory default settings.
Note: The reset deletes group association and microphone links, and will reboot the device in DHCP mode.
⑤ Ethernet Port
Connect a shielded Cat5e (or higher) cable to a PoE source and the network.
⑥ Ethernet Status LED (Green)
Off = no network link
On = network link established
Flashing = network link active
⑦ Ethernet Link Speed LED (Amber)
Off = 10/100 Mbps
On = 1 Gbps (required for proper MXW functionality)
⑧ Cable Routing Path
Provides a path for the Ethernet cable to enable a flush-mount to the ceiling or wall.
