Shure Incorporated
33/100
4.

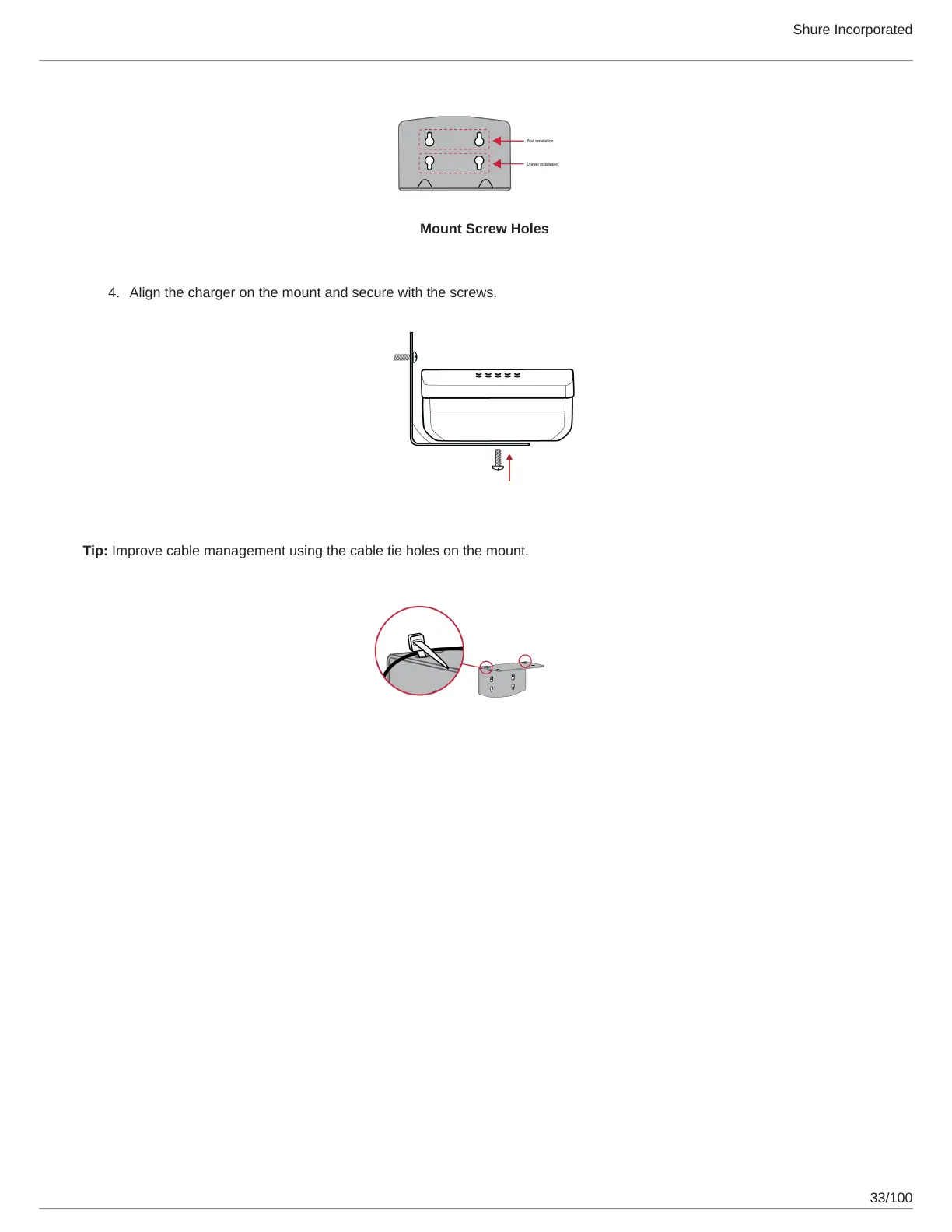

Mount Screw Holes
Align the charger on the mount and secure with the screws.
T
ip:
Improve cable management using the cable tie holes on the mount.
32
34
