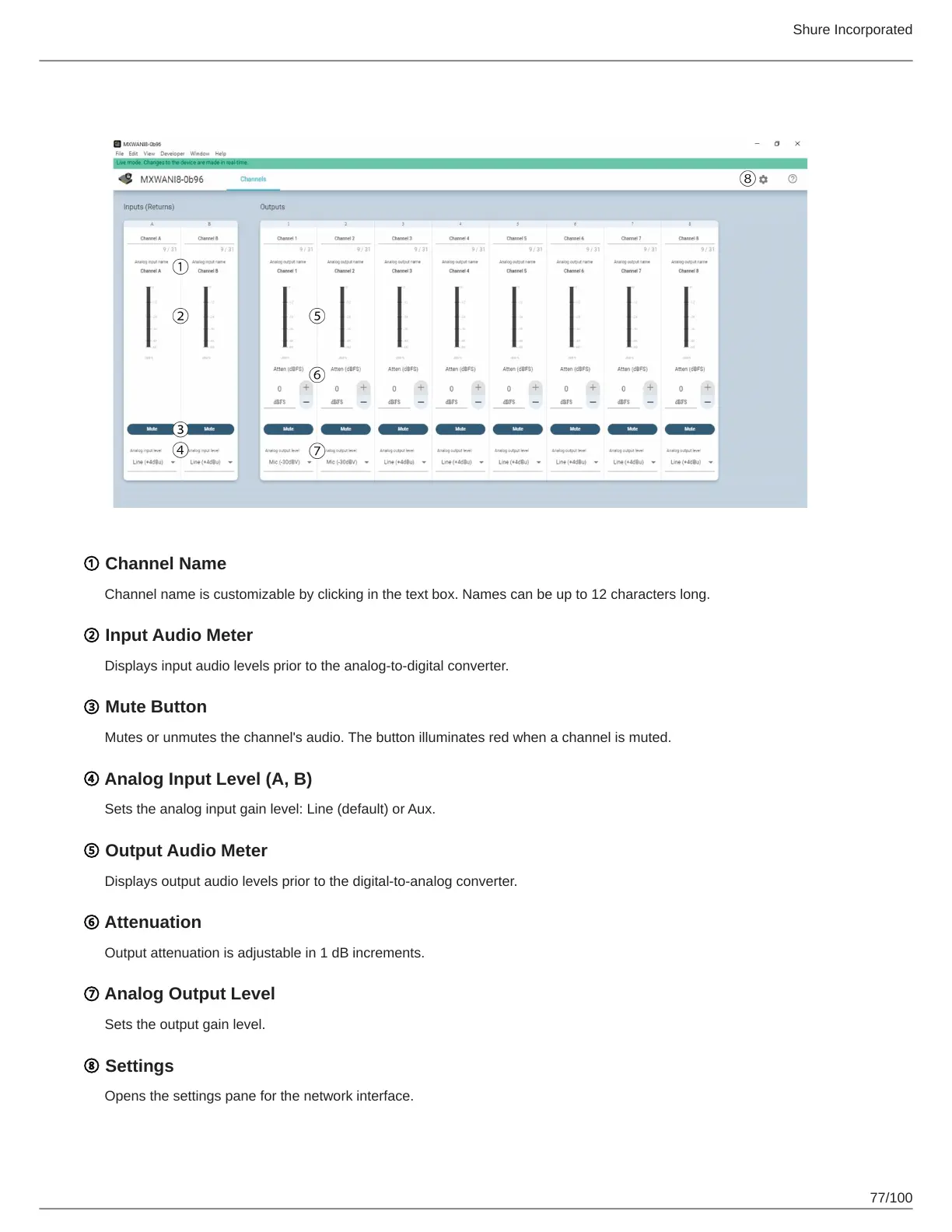

Channels Tab
① Channel Name
Channel name is customizable by clicking in the text box. Names can be up to 12 characters long.
② Input Audio Meter
Displays input audio levels prior to the analog-to-digital converter.
③ Mute Button
Mutes or unmutes the channel's audio. The button illuminates red when a channel is muted.
④ Analog Input Level (A, B)
Sets the analog input gain level: Line (default) or Aux.
⑤ Output Audio Meter
Displays output audio levels prior to the digital-to-analog converter.
⑥ Attenuation
Output attenuation is adjustable in 1 dB increments.
⑦ Analog Output Level
Sets the output gain level.
⑧ Settings
Opens the settings pane for the network interface.
