Shure Incorporated
12/76

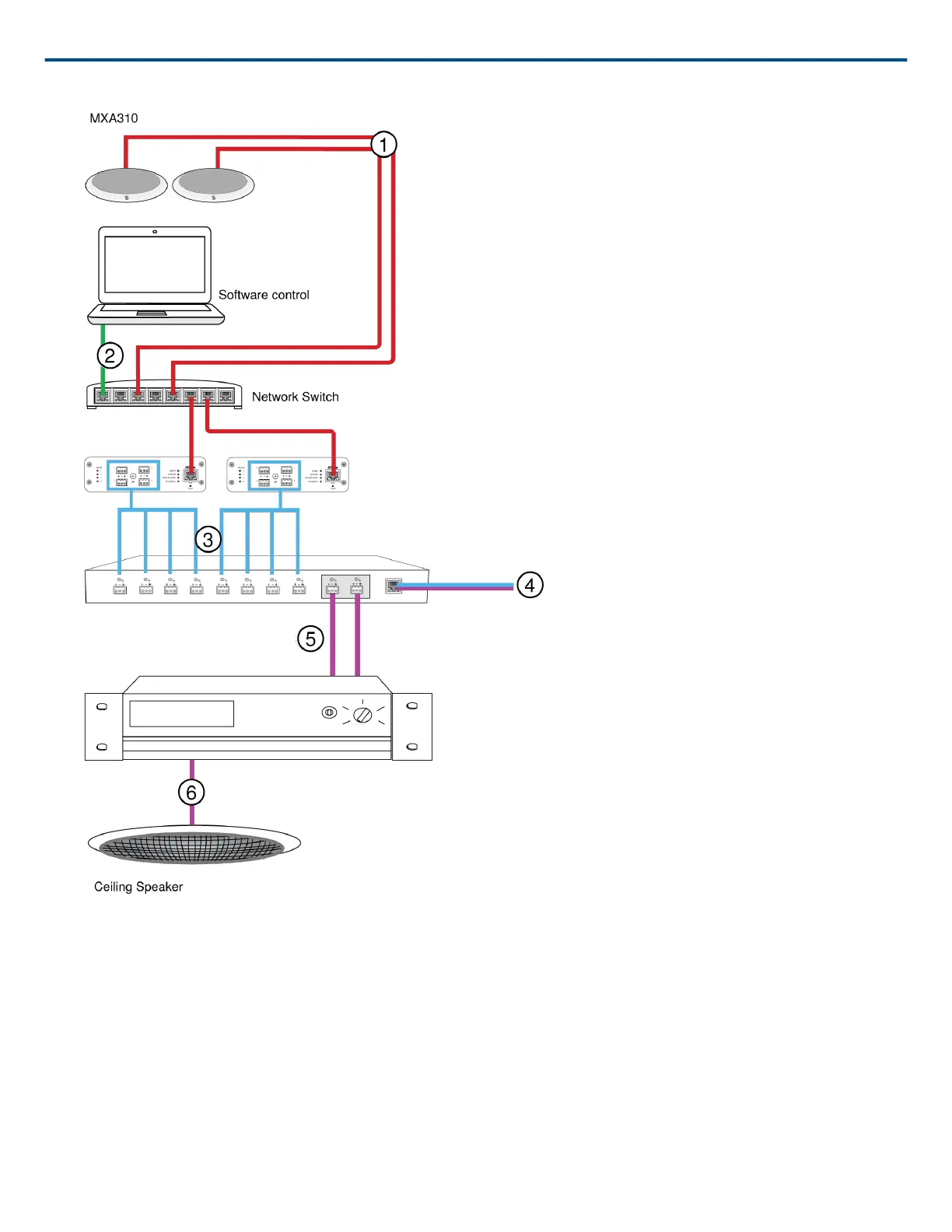

① Microphone to network switch
Connect the array microphone output with a network cable to any port on the switch that supplies power over eth
ernet (PoE).
② Computer to network switch
Connect a computer to the network switch to provide control of the microphone and other networked components
through the software control panel.
③ ANI4OUT (digital-to-analog conversion)
