Shure Incorporated
2/76
• Configurable multicolored LED light ring matches the environment, displays mute settings, and confirms cover
age settings
• Available in white, black, and aluminum finishes

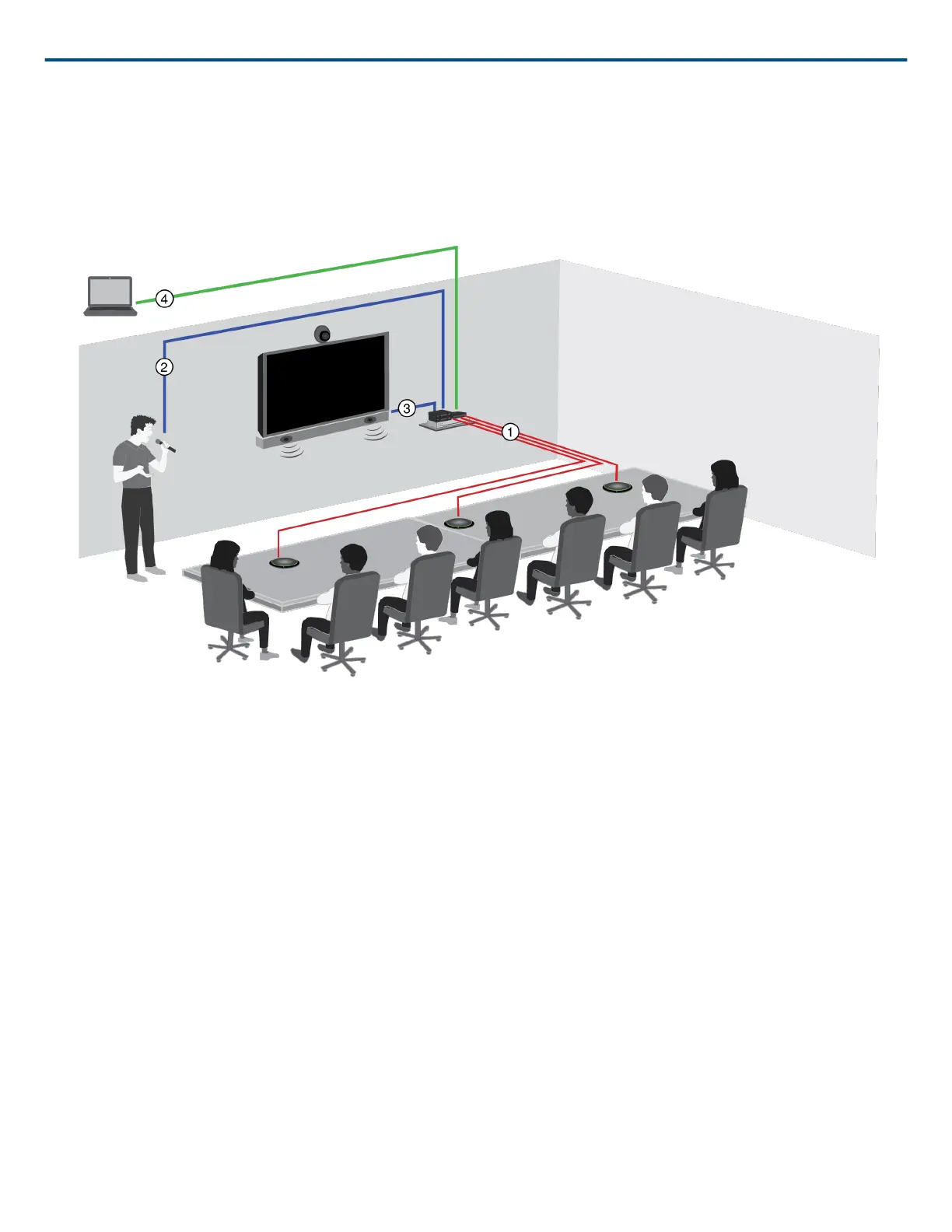

System Overview
① Dante audio, power, and control
A single network cable delivers 4 discrete audio channels from each microphone onto the Dante network, where
they can be routed to any Dante-compatible devices.
② Analog audio (microphone to network)
Analog equipment, such as a wireless microphone system or a gooseneck microphone on a podium, connects to
the Dante™ audio network through a Shure Network Interface (model ANI4IN) for a completely networked confer
encing system.
③ Far-end audio (network to loudspeakers)
Dante™enabled loudspeakers and amplifiers connect directly to a network switch. Analog loudspeakers and am
plifiers connect through a Shure Network Interface (model ANI4OUT), which converts Dante™ audio channels into
analog signals, delivered through 4 discrete XLR or block connector outputs.
④ Device control and Dante audio
A computer running Dante Controller and the Shure browser-based interface provides control over the following:
Control:
