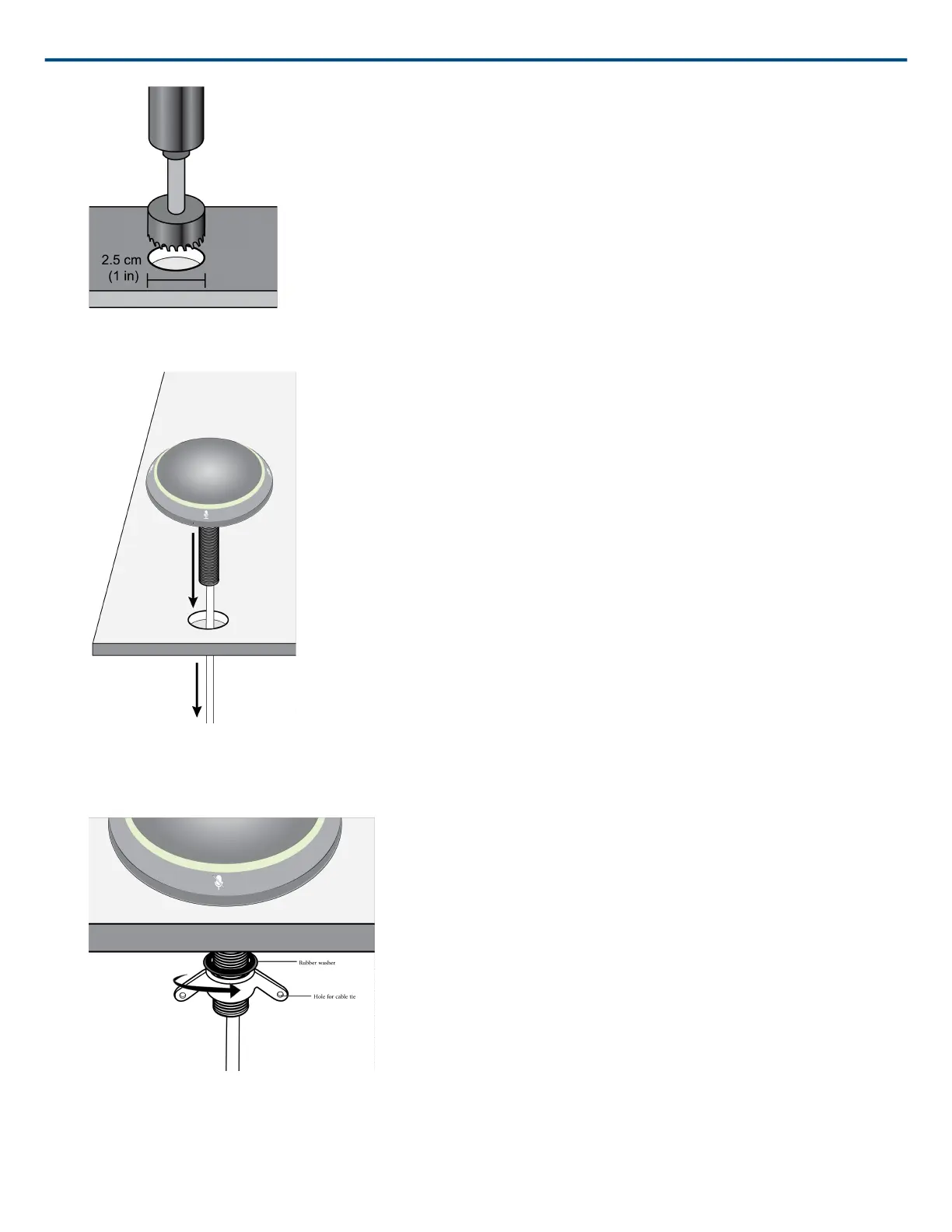

6. Guide the cable through the hole in the table. Then, place the tube through the hole in the table and gently
press the microphone down.
7. Attach the remaining rubber washer and wing nut from underneath the table. Then, tighten the wing nut to se
cure the microphone on the table.
Optional: use the hole in the wing nut to insert a cable tie for cable management.
Power Over Ethernet (PoE)
This device requires PoE to operate. It is compatible with both Class 0 and Class 2 PoE sources.
