Shure Incorporated
4/76

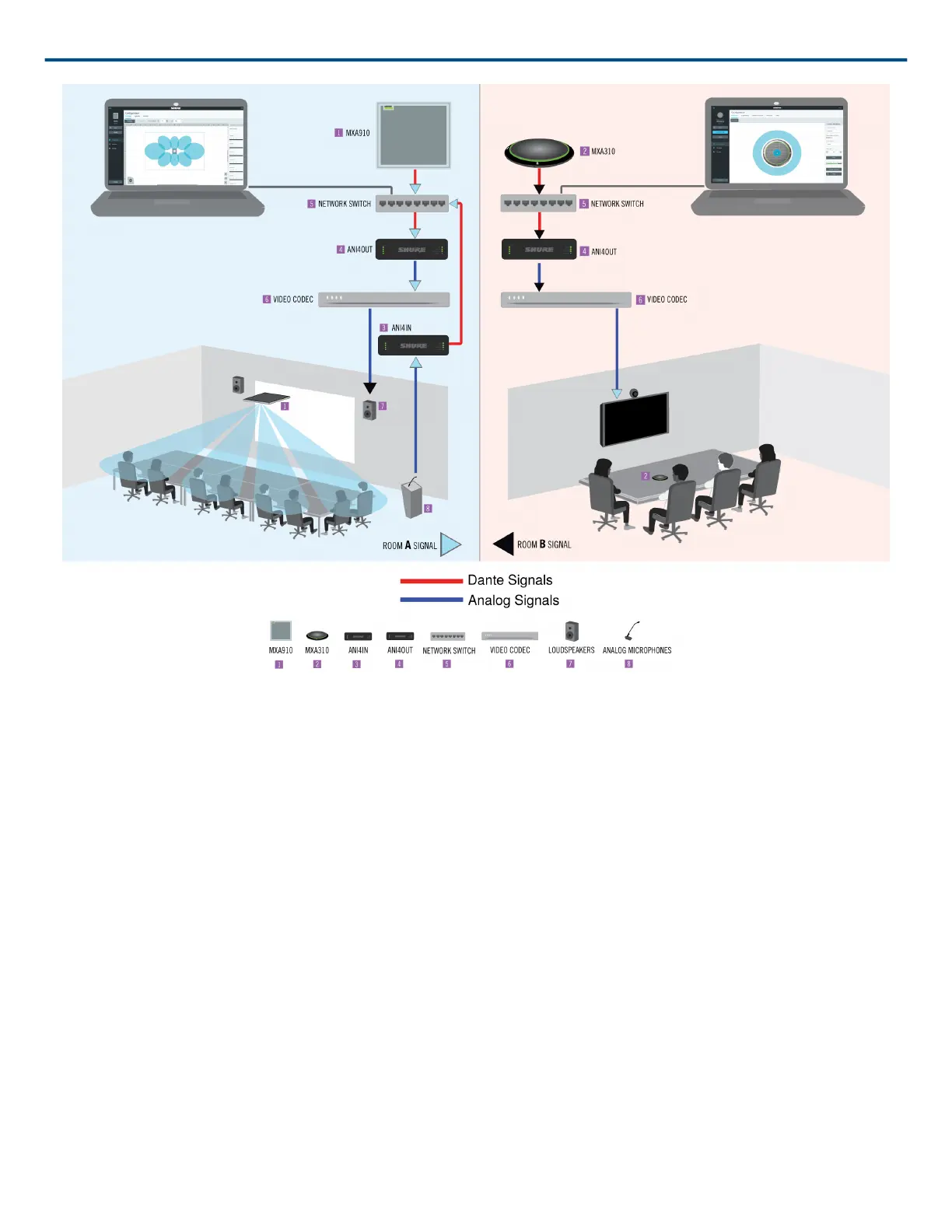

This diagram shows Microflex Advance components in context, with two rooms communicating through video
codecs.
Controlling Hardware and Audio Over the Network
Audio and hardware settings are managed through a computer connected to the same network.
Shure Hardware and Audio
Each Microflex Advance component has a web application which provides mixing and configuration tools to opti
mize sound quality.
Expanded Control for Analog Devices
Analog devices that are connected to the network through a Shure network interface (ANI4IN/ANI4OUT) benefit
from additional remote control: Volume levels, equalization, and signal routing are managed through the web appli
cation. For example, adjusting loudspeaker volume or muting a wired microphone, which would normally be done
from the hardware, can now be controlled remotely over the network.
Dante Signal Routing
Signal routing between devices is managed through Dante Controller software, provided by Audinate™.
