3.
4.
•
•

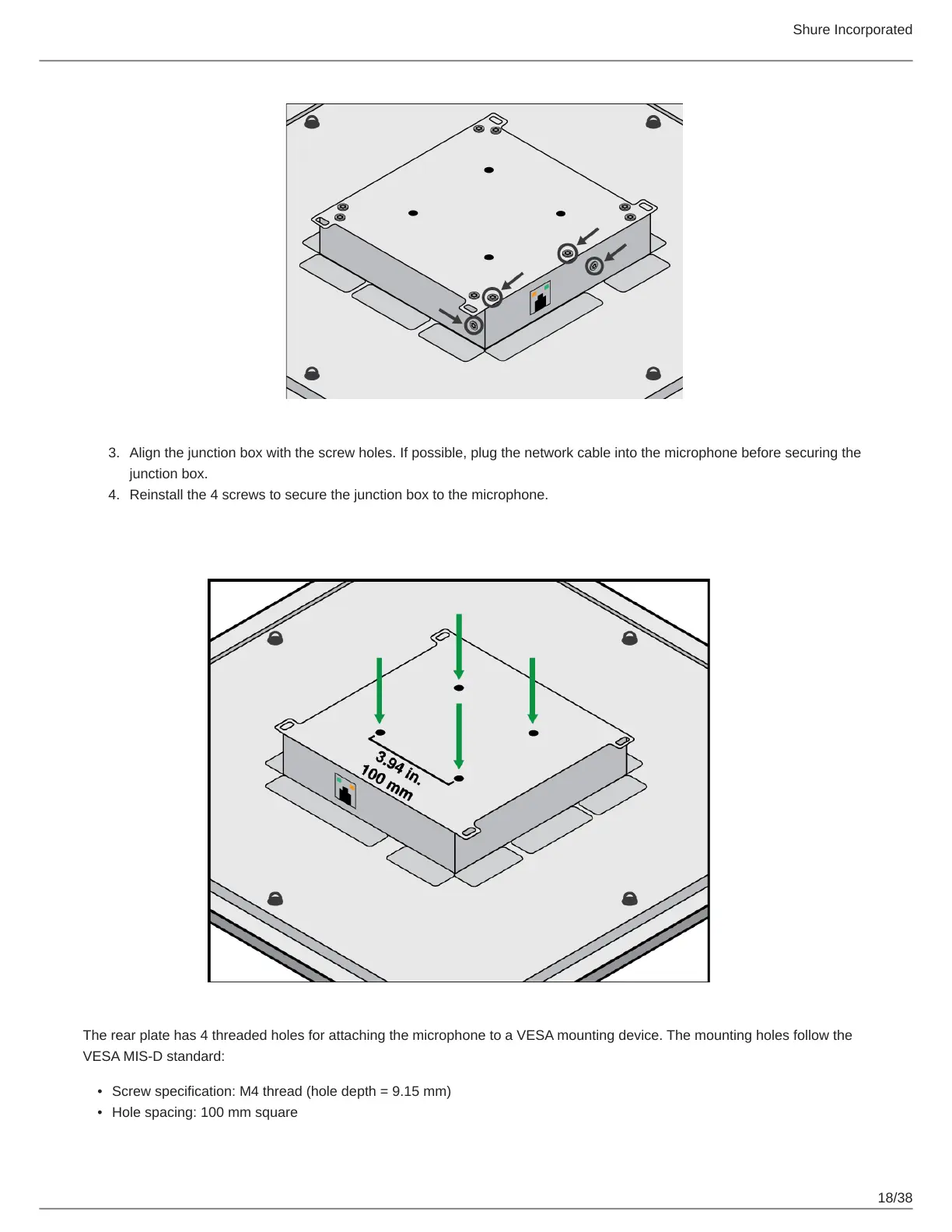

Align the junction box with the screw holes. If possible, plug the network cable into the microphone before securing the
junction box.
Reinstall the 4 screws to secure the junction box to the microphone.
VESA Standardized Mounting
The rear plate has 4 threaded holes for attaching the microphone to a VESA mounting device. The mounting holes follow the
VESA MIS-D standard:
Screw specification: M4 thread (hole depth = 9.15 mm)
Hole spacing: 100 mm square
