Output Mode (
MODE
)
STEREO
Receive left and right inputs as a stereo signal
MIXMODE
®
Set your receiver to combine the left and right channel for simultaneous listening in both ears or pan to listen to only the
left or right channel

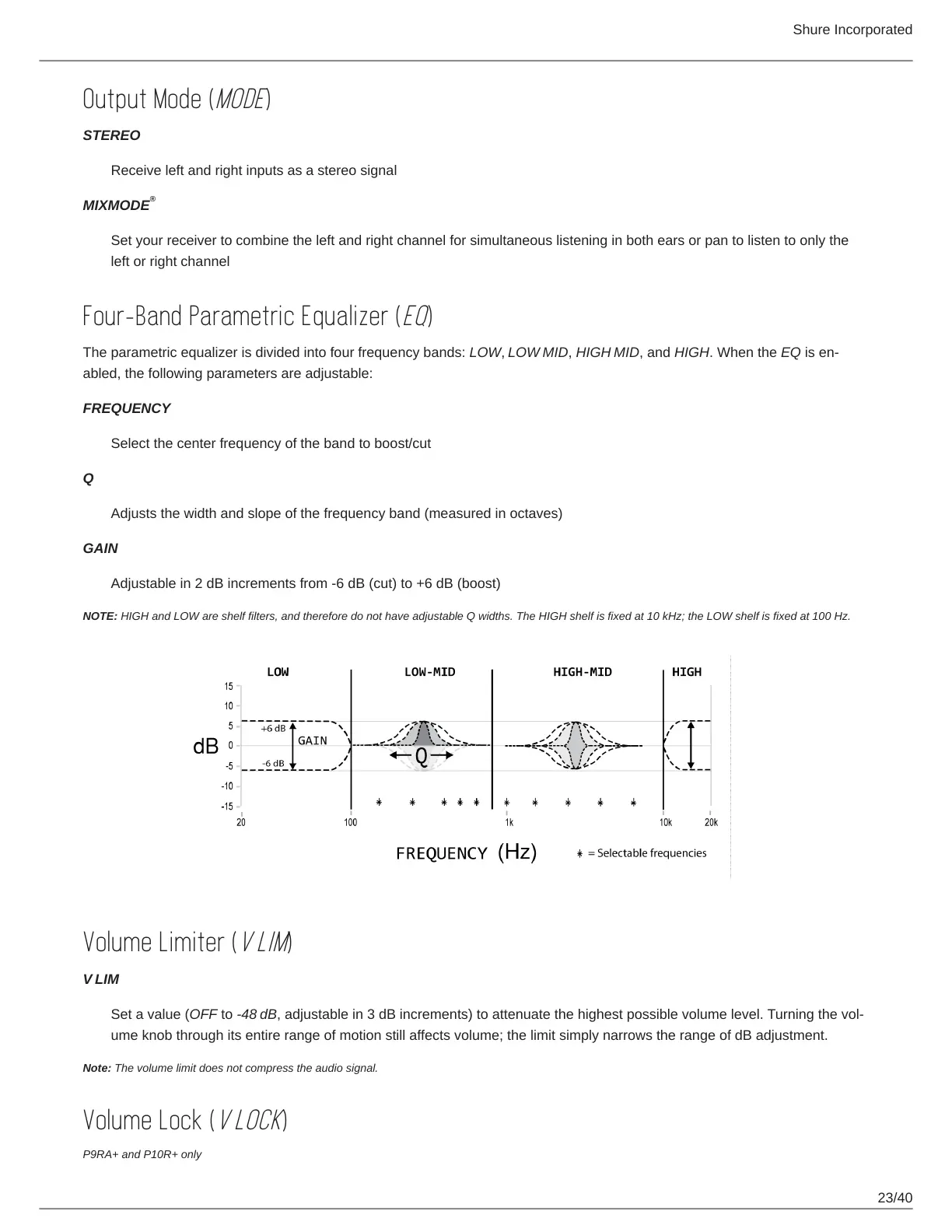

Four-Band Parametric Equalizer (
EQ
)
The parametric equalizer is divided into four frequency bands: LOW, LOW MID, HIGH MID, and HIGH. When the EQ is en
abled, the following parameters are adjustable:
FREQUENCY
Select the center frequency of the band to boost/cut
Q
Adjusts the width and slope of the frequency band (measured in octaves)
GAIN
Adjustable in 2 dB increments from -6 dB (cut) to +6 dB (boost)
NOTE: HIGH and LOW are shelf filters, and therefore do not have adjustable Q widths. The HIGH shelf is fixed at 10 kHz; the LOW shelf is fixed at 100 Hz.
Volume Limiter (
V
LIM
)
V LIM
Set a value (OFF to 48 dB, adjustable in 3 dB increments) to attenuate the highest possible volume level. Turning the vol
ume knob through its entire range of motion still affects volume; the limit simply narrows the range of dB adjustment.
Note: The volume limit does not compress the audio signal.
Volume Lock (
V
LOCK
)
P9RA+ and P10R+ only
