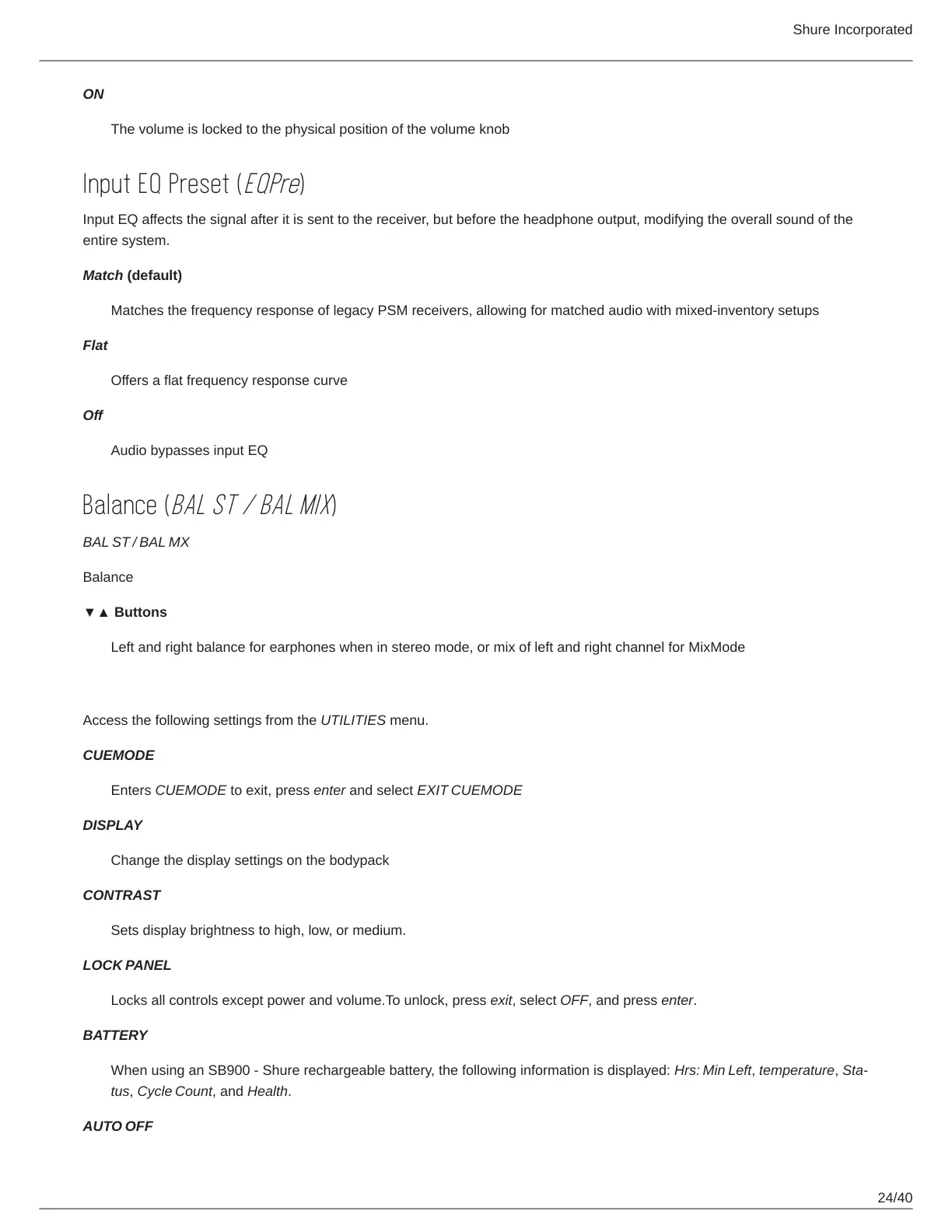

Page #24 background image
Shure Incorporated
24/40
ON
The volume is locked to the physical position of the volume knob
Input EQ Preset (
EQPre
)
Input EQ affects the signal after it is sent to the receiver, but before the headphone output, modifying the overall sound of the
entire system.
Match (default)
Matches the frequency response of legacy PSM receivers, allowing for matched audio with mixed-inventory setups
Flat
Offers a flat frequency response curve
Off
Audio bypasses input EQ
Balance (
BAL
ST
/
BAL
MIX
)
BAL ST / BAL MX
Balance
▼▲ Buttons
Left and right balance for earphones when in stereo mode, or mix of left and right channel for MixMode
Utilities and Display Settings
Access the following settings from the UTILITIES menu.
CUEMODE
Enters CUEMODE to exit, press enter and select EXIT CUEMODE
DISPLAY
Change the display settings on the bodypack
CONTRAST
Sets display brightness to high, low, or medium.
LOCK PANEL
Locks all controls except power and volume.To unlock, press exit, select OFF, and press enter.
BATTERY
When using an SB900 - Shure rechargeable battery, the following information is displayed: Hrs: Min Left, temperature, Sta
tus, Cycle Count, and Health.
AUTO OFF
