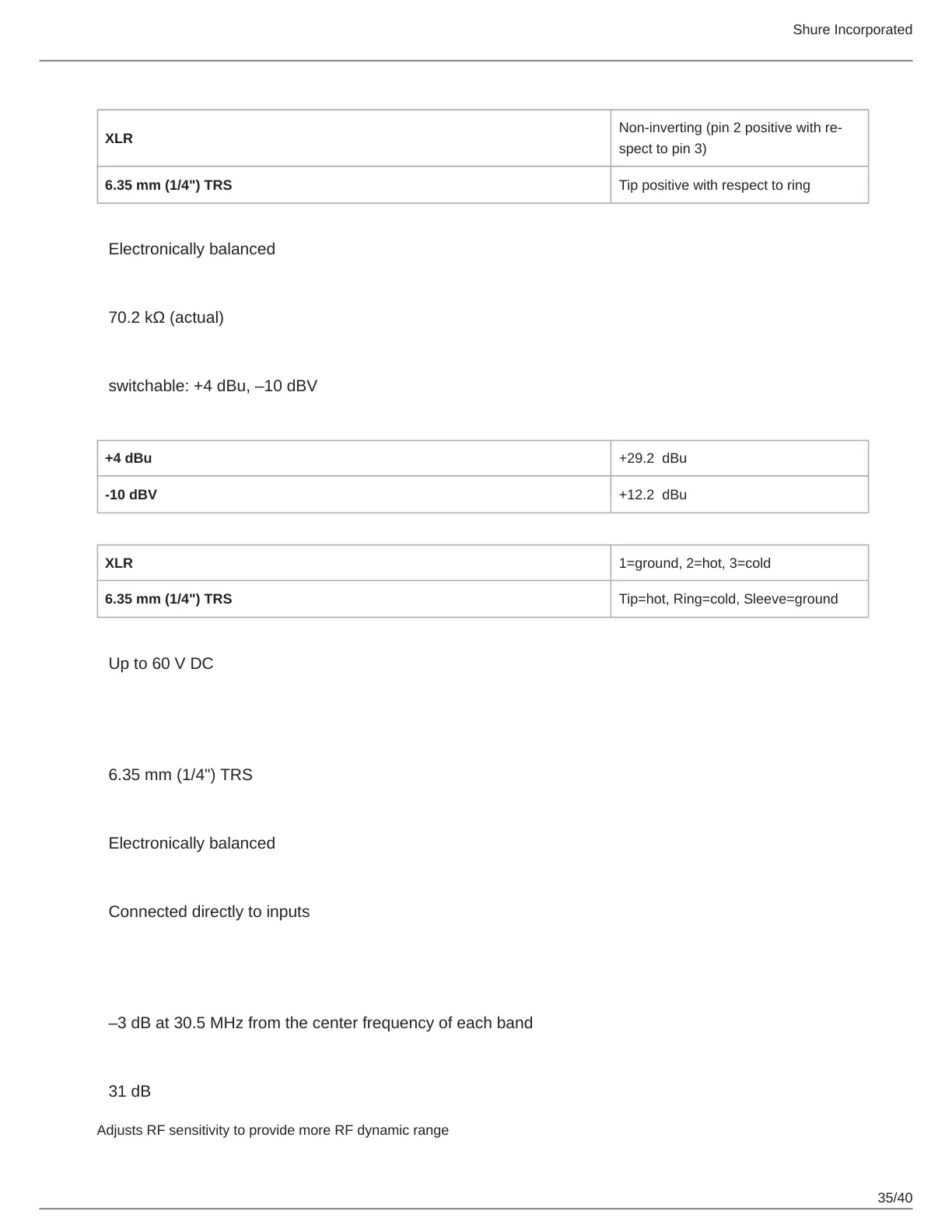

35/40
Polarity
XLR
Noninverting (pin 2 positive with re
spect to pin 3)
6.35 mm (1/4") TRS Tip positive with respect to ring
Configuration
Electronically balanced
Impedance
70.2 kΩ (actual)
Nominal Input Level
switchable: +4 dBu, –10 dBV
Maximum Input Level
+4 dBu +29.2 dBu
-10 dBV +12.2 dBu
Pin Assignments
XLR 1=ground, 2=hot, 3=cold
6.35 mm (1/4") TRS Tip=hot, Ring=cold, Sleeve=ground
Phantom Power Protection
Up to 60 V DC
Audio Output
Connector Type
6.35 mm (1/4") TRS
Configuration
Electronically balanced
Impedance
Connected directly to inputs
P10R+
Tri-Band RF Filtering
–3 dB at 30.5 MHz from the center frequency of each band
Active RF Gain Control
31 dB
Adjusts RF sensitivity to provide more RF dynamic range

Shure PSM1000 Specifications

General

Frequency Range	470–952 MHz (country dependent)
Operating Range	100 m (328 ft) (Typical)
Audio Input	XLR
Network Interface	Ethernet
Receiver Audio Output	XLR, 1/4" (6.3 mm) balanced/unbalanced
Receiver Battery Type	AA
Power Supply	100 to 240 V AC, 50-60 Hz
Weight	Varies by model (refer to specific model documentation)
