Si-tex SP120C - Installation Dimensions and Guide; Electronic Compass

6 of 34
SI-TEX Marine Electronics - SP120C Color Autopilot
Installation
SP120C CDU Installation

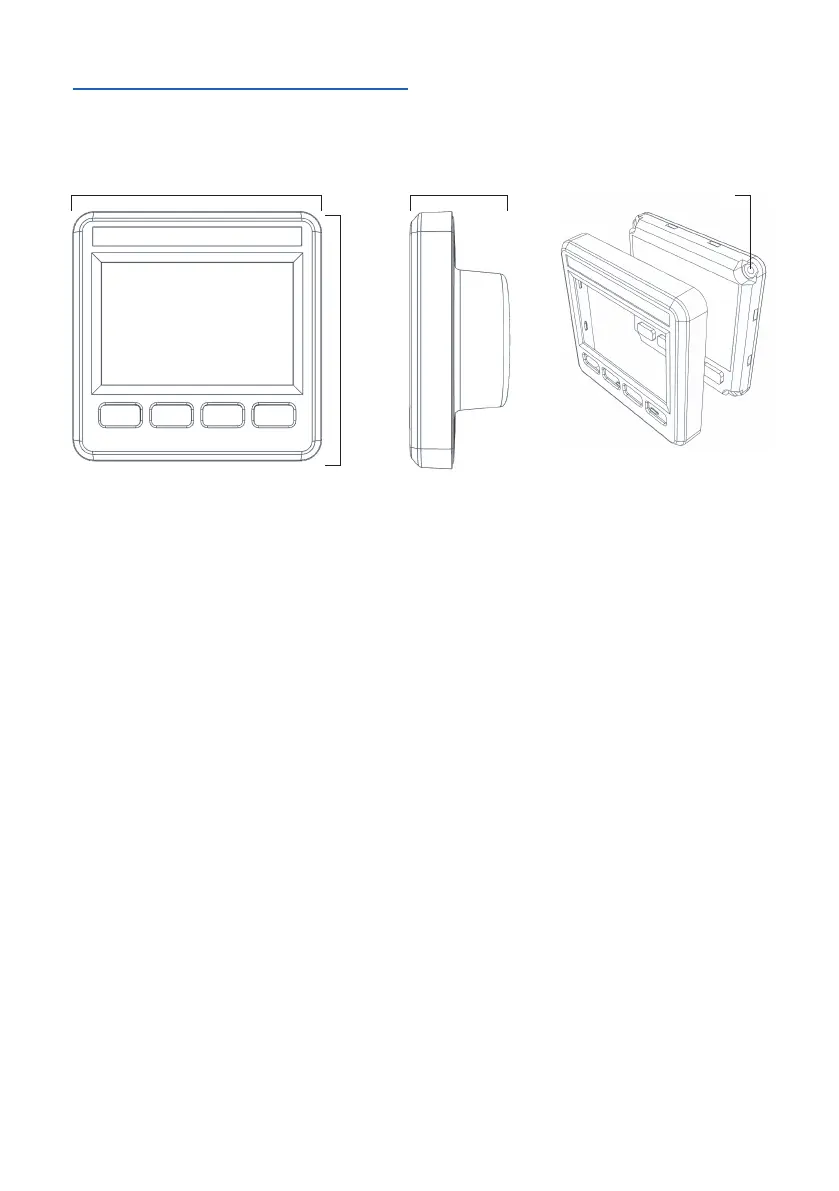

Dimensions
SP120C CDU Installation Guide
- The SP120C Head unit should be
mounted in a position accessible to
the steering position and protected
from direct rain or salt water.
- For in dash mounting cut a 75mm
(3.0”) hole
- An optional mounting bracket
is available and may be used
for desktop mounting - see your
supplier
- Drill mounting screw holes
- Mount the display using screws
supplied (304 SS – 6G)
NOTE: Use the protection cover
when the system is not in use, to
protect the screen and casing from
UV and other physical damage
ELECOM
Electronic Compass
(E-Compass V.3)
Take care when handling the
compass as it is a sensitive piece of
equipment.
The compass position is the most
important item in the installation of
the autopilot. Good course holding
is dependent on the compass being
free from magnetic interference and
excessive rolling or pitching.
E-Compass Specications:
• Output based on NMEA 0183
standards
• Protocol Settings: 4800–8–N–1
• Output Sentences: HDM & ROT
• Power supply: 12-24 VDC <1Watt
• No moving parts to prevent
mechanical wear-out, small size and
high reliability.
110mm
43mm
Mounting holes are at 94mm square
110mm
