SICK DL100 Pro PROFINET HighFeature - Accessories; Mounting Systems

14 Accessories
NOTE
Accessories and where applicable mounting information can be found online at:
•
www.sick.com/DX100
14.1 Mounting systems
137 (5.39)
137 (5.39)
132.17 (5.20)
132.17 (5.20) 104.5 (4.11)
126 (4.96)
126 (4.96)
66 (2.60)
(66) (2.60)
86.34 (3.40)
max. 120.55 (4.75)
109.75 (4.32)
8 (0.31)
5 (0.20)
12.7 (0.50)
5 (0.20)
14.5 (0.57)
27.5 (1.08)
48 (1.89)
48 (1.89)
8 (0.31)
Ø 5.4 (0.21)
Ø 5.4 (0.21)
Ø 5.4 (0.21)
Ø 5.4 (0.21)
75.72 (2.98)
(7.75) (0.31)
71 (2.80)
(69.4) (2.73)

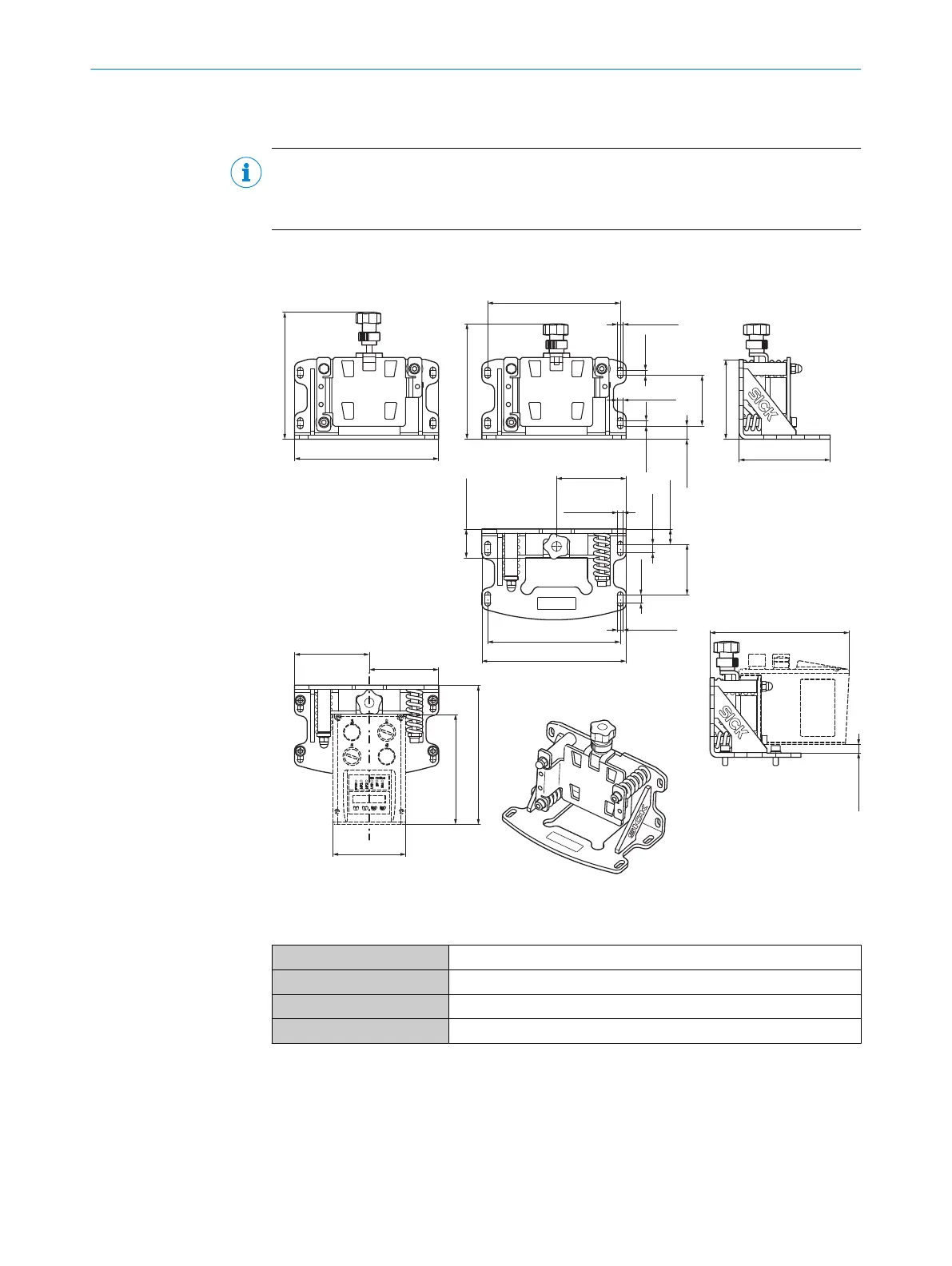

Figure 25: Alignment bracket; unit: mm (inch), decimal separator: period
Table 45: Alignment bracket
Description Alignment bracket including fastening accessories
Type BEF-AH-DX100
Part number 2058653
Material Galvanized sheet steel
ACCESSORIES 14
