8015675/1EEU/2021-12| SICKO P E R A T I N G I N S T R U C T I O N S | Flow-X
Subject to change without notice
3 PRODUCT DESCRIPTION
3.3 Flow-X enclosure
3.3.1 Flow-X/P
The Flow-X/P enclosure is a multi-stream flow computer with integrated station module and
7-inch touchscreen and can accommodate up to 4 Flow-X modules.

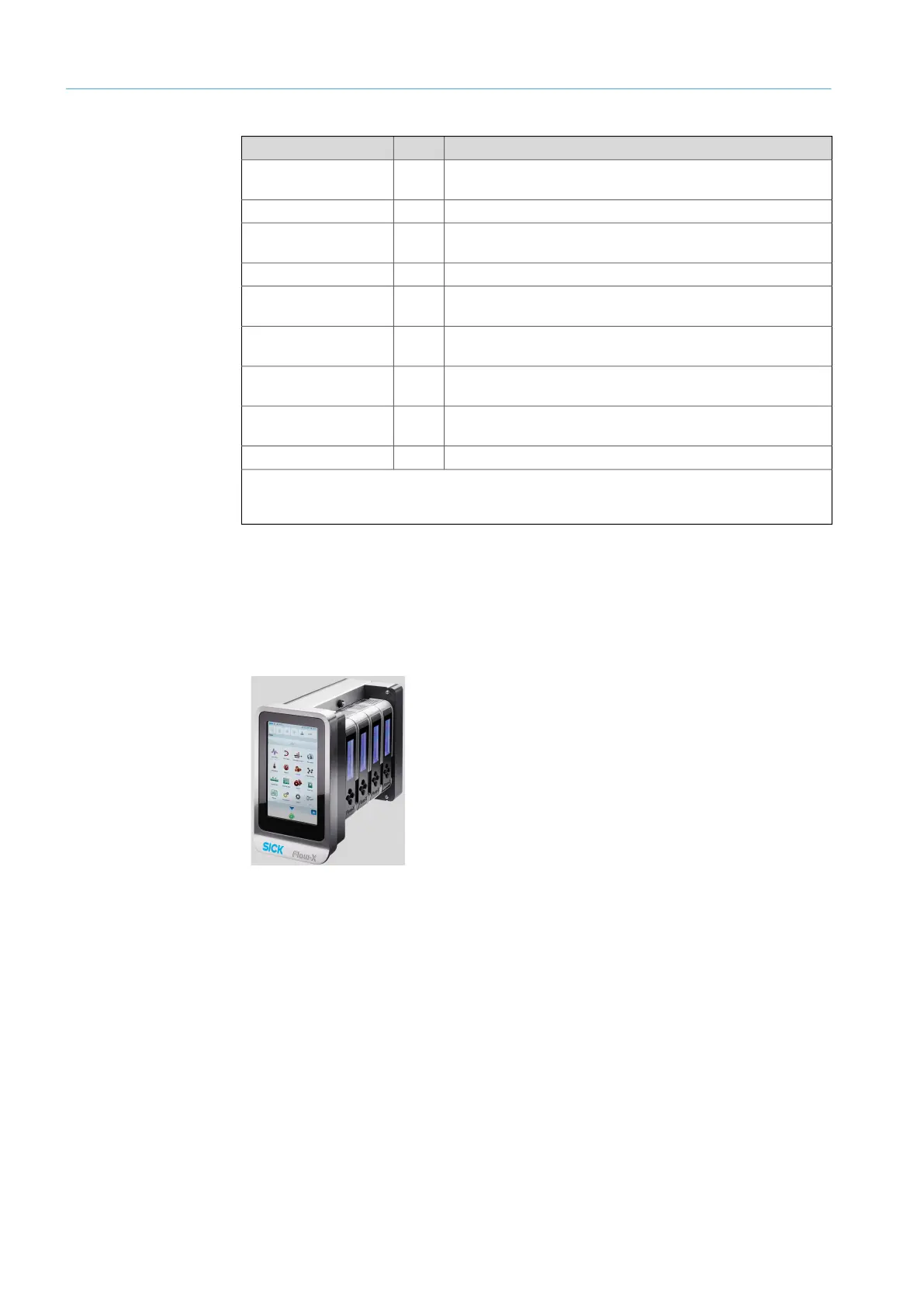

Fig. 2: Flow-X/P enclosure incl. four Flow-X modules
Density/viscosity 4
[2]
Periodic time input, 100 μs to 5000 μs.
Resolution < 1ns
Digital inputs 16
[2]
Digital status inputs. Resolution 100 ns (10 MHz)
Digital outputs 16
[2]
Digital output, open collector (0.5 A DC)
Rated value 100 V, 24 mA
Pulse outputs 4
[2]
Open collector, 0.01 to 500 Hz
Inputs of the sphere
detector
4
[2]
Supports 1, 2 and 4 detector configuration mode
Resolution 100 ns (10 MHz)
Prover bus outputs 1
[2]
Meter pulse output for remote flow computers.
Resolution 100 ns (1 MHz)
Frequency outputs 4
[2]
Frequency outputs for emulation of flow meter signals. Maximum
frequency 10 KHz, accuracy 0.1%
Serial 2 RS485 / RS-232 serial input for ultrasonic counter, printer or
generic, 115kb
Ethernet 2 RJ45 Ethernet Interface, TCP/IP
[1] There are 6 analog inputs per module. Analog inputs 1 to 4 support HART.
[2] Total number of pulse inputs + digital inputs + digital outputs + pulse outputs + density inputs + sphere detector
inputs + prover bus outputs + frequency outputs = 16
Signal type Qty. Specification
Table 1: Flow-X/M inputs and outputs
