8015675/1EEU/2021-12| SICK O P E R A T I N G I N S T R U C TI O N S | Flow-X
Subject to change without notice
PRODUCT DESCRIPTION 3

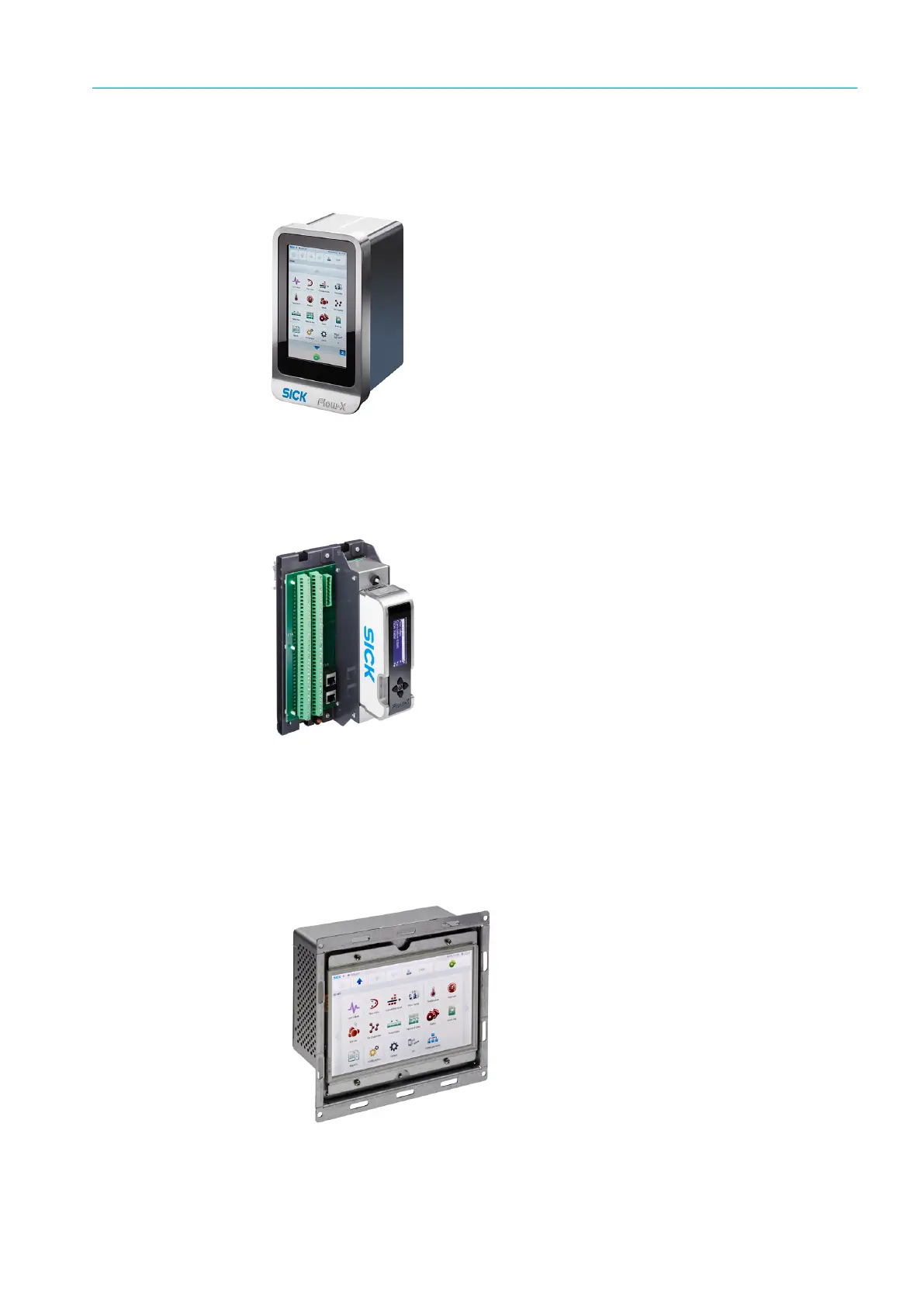

3.3.2 Flow-X/C
The Flow-X/C is the compact version of the Flow-X/P with a Flow-X module integrated in the
enclosure. It has three serial and two Ethernet interfaces.
Fig. 3: Flow-X/C enclosure with internally installed Flow-X module
3.3.3 Flow-X/S
The Flow-X/S enclosure is a single module enclosure with DIN rail enclosure with direct
screw terminals for the field connections and is used as single measuring section.
Fig. 4: Flow-X/S enclosure with a Flow-X module
3.4 Flow-X
The Flow-X/T is a 7-inch color touchscreen that can be installed in an instrument panel. It
serves as operator interface for Flow-X/S.
Fig. 5: Flow-X
