INSTALLATION 4
4.2 Mechanical installation
4.2.1 Flow-X/P and Flow-X/C
The Flow-X/P and Flow-X/C flow computers require a mounting bracket for installation in an
instrument panel. For Flow-X/P, the mounting bracket is designed to allow unobstructed
access to the installed Flow-X modules. The mounting bracket is attached to the back of
the instrument panel in which the Flow-X/P or Flow-X/C flow computer is to be installed. The
respective flow computer is inserted at the front of the instrument panel and connected to
the mounting bracket with a screw.

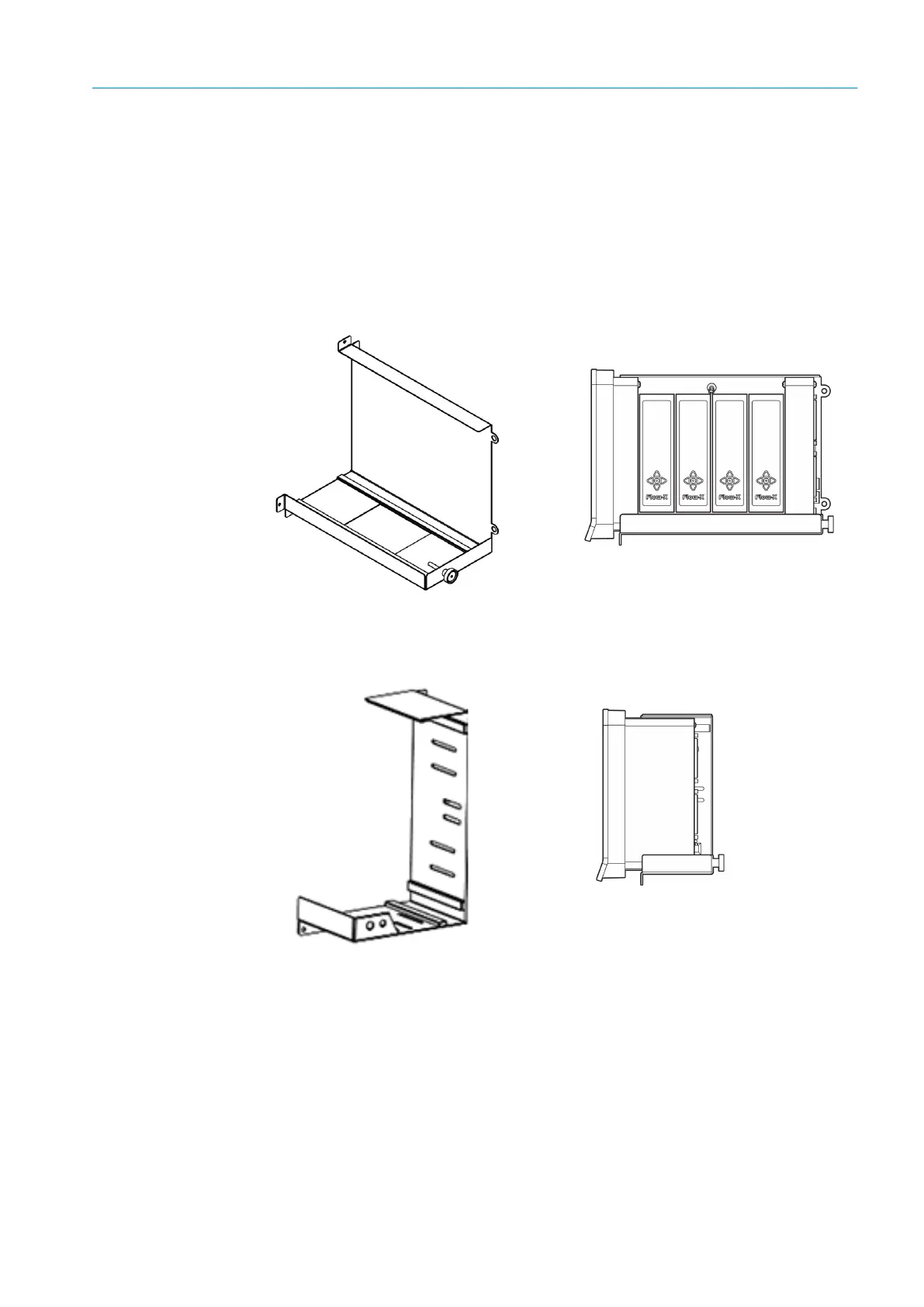

Fig. 11: Flow-X/P mounting bracket and side view Flow-X/P installed
Fig. 12: Flow-X/C mounting bracket and side view Flow-X/C installed
