SENSOR = Device
8
Female connector, M12, 17-pin, A-coded
9
Device to be connected
ß
Additional external digital inputs and outputs of the device (not supported).
à
Supply voltage V
S
13.3.3 Connecting supply voltage for the device in CDB650-204
Device
3CDB650-204
V
S
V
S
2
1
2
1
5
Shield
1 U
IN
2 GND
U
IN
*
GND
S1
F
Shield
Cable 2
GND
.
.
.
.
.
.
.
.
.
ON
OFF
S1 : POWER
V
s
U
IN
*
POWER
GND
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
3
1
7
2
6
5
4
8
13
14
17
15
9
10
12
16
11
V
S
- U
IN
-
F
S 1
- U
IN
*
5 4
1

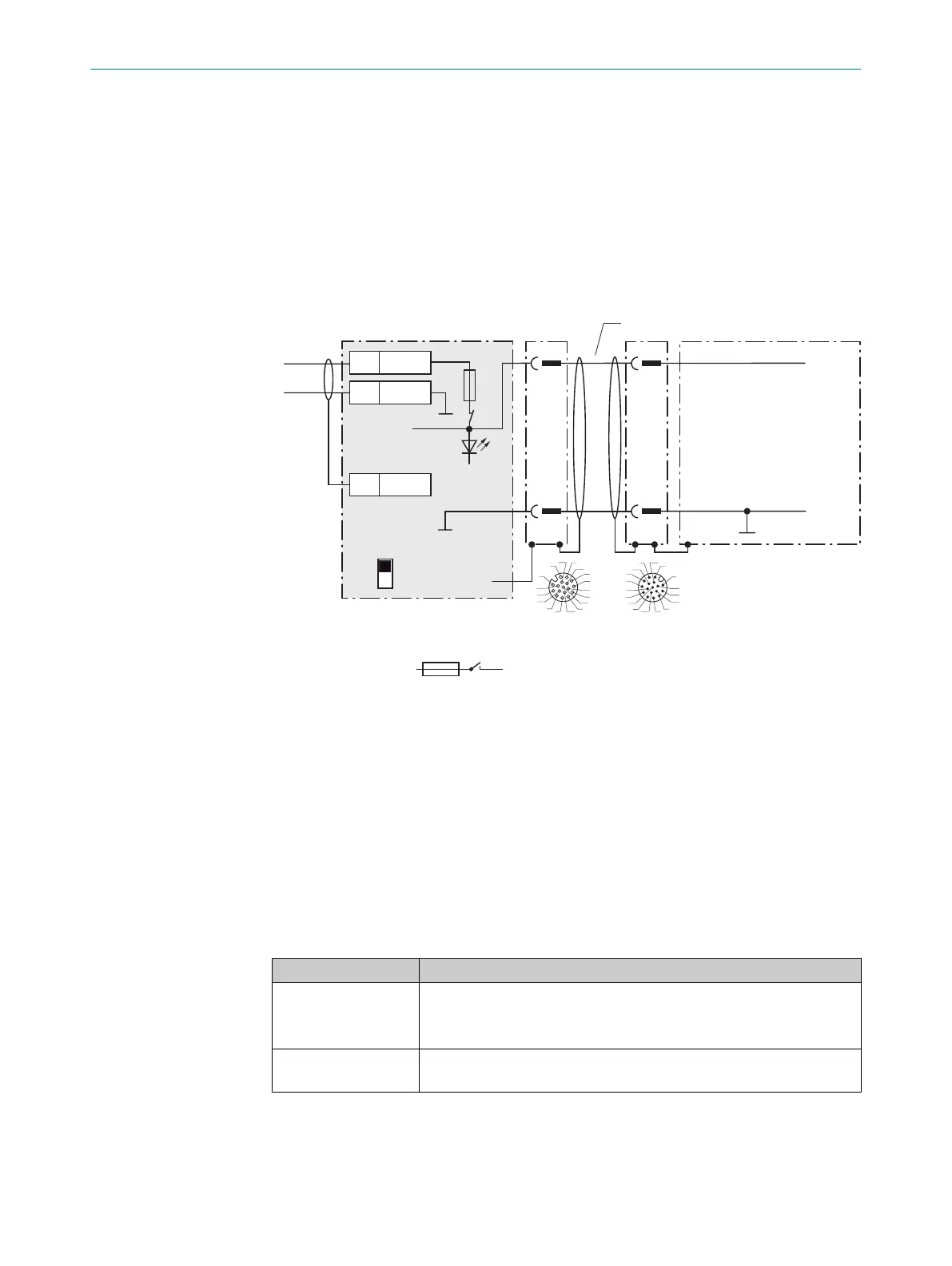

Figure 27: Connecting supply voltage for the device in CDB650-204 connection module
1
Supply voltage V
S
2
Connection cable 1:1 (male connector, M12, 17-pin, A-coded / female connector, M12,
17-pin, A-coded)
3
Device
4
Device: male connector, M12, 17-pin, A-coded
5
Connection module: female connector, M12, 17-pin, A-coded
Function of switch S1
Table 15: Switch S1: Power
Switch setting Function
ON Supply voltage U
IN
connected to CDB650-204 and device via fuse and
switch S1 as a supply voltage U
IN
*.
Supply voltage U
IN
* can be additionally tapped at terminals 11 and 14.
OFF CDB650-204 and device disconnected from supply voltage.
Recommended setting for all connection work.
