SICK IQB2S User Manual

M12 x 1
63
52,3
40,9
300
LED 2 x 180°
17
4

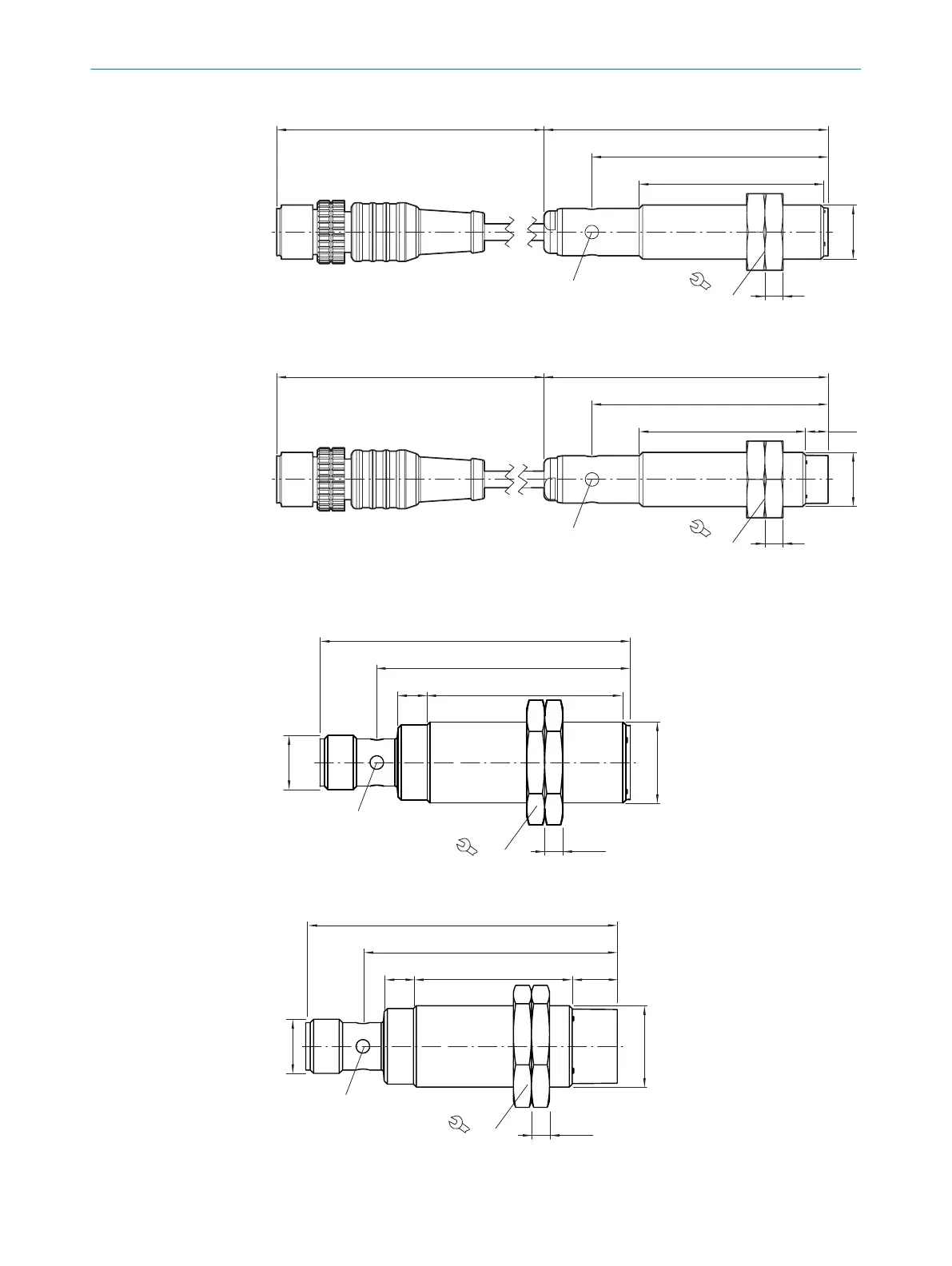

Figure 18: IME2S12-**B**Q9 dimensional drawing
M12 x 1
63
52,3
36,9
300
LED 2 x 180°
17
5
4
Figure 19: IME2S12-**N**Q9 dimensional drawing
IME2S18
M18 x 1 M12 x 1
69
56,3
44,2
6,5
LED 2 x 180°
24
4
Figure 20: IME2S18-**B**C0 dimensional drawing
M18 x 1 M12 x 1
69
56,3
35,2 10
6,5
LED 2 x 180°
24
4
Figure 21: IME2S18-**N**C0 dimensional drawing
11 T
ECHNICAL DATA
30
O P E R A T I N G I N S T R U C T I O N S | IME2S, IQB2S 8023341/17AZ/2020-03-24 | SICK
Subject to change without notice
