SICK IQB2S - Page 31

IME2S30
M30 x 1,5
M12 x 1
71
58,3
45,9
6,2
LED 2 x 180°
36
4

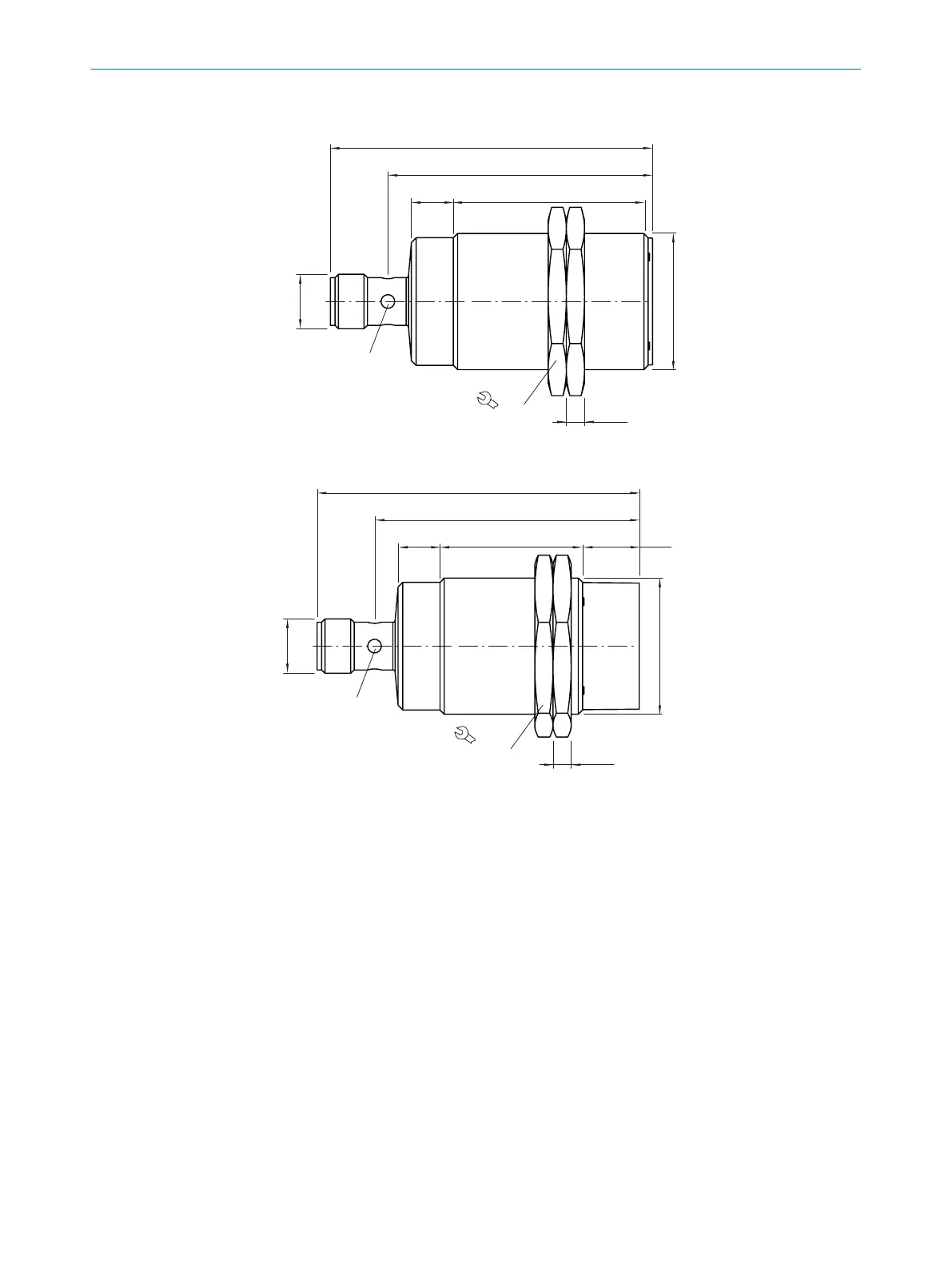

Figure 22: IME2S30-**B**C0 dimensional drawing
M30 x 1,5
M12 x 1
71
58,3
34,6
6,2
LED 2 x 180°
36
4
12,3
Figure 23: IME2S30-**N**C0 dimensional drawing
