4 Operating and status indicators
1
2 3

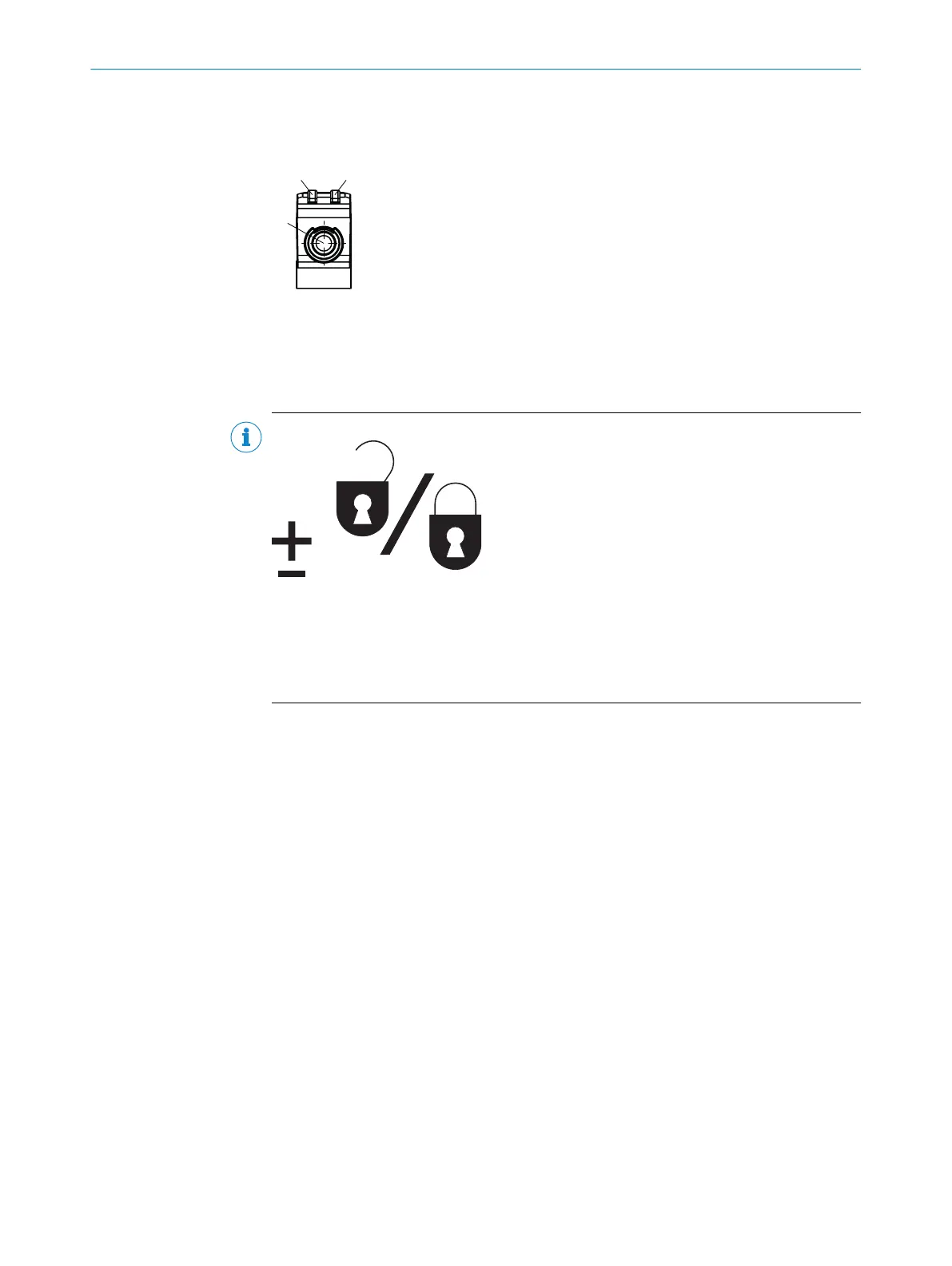

Figure 2: Operating elements
1
Yellow LED indicator: Switching output
2
LED indicator green: supply voltage active
3
Teach-in button
NOTE
30s
Activation and deactivation: hold down teach-in button > 30 s. Emitted light and func‐
tion dis
play flash 3 x.
