SICK KTML Series - 2-Point-Teach-In (Static) Via Teach-In Button

140
120
100
80
60
40
20
210
(8.27)
220
(8.66)
230
(9.06)
240
(9.45)
250
(9.84)
260
(10.24)
270
(10.63)
280
(11.02)
0
Distance [mm]
%

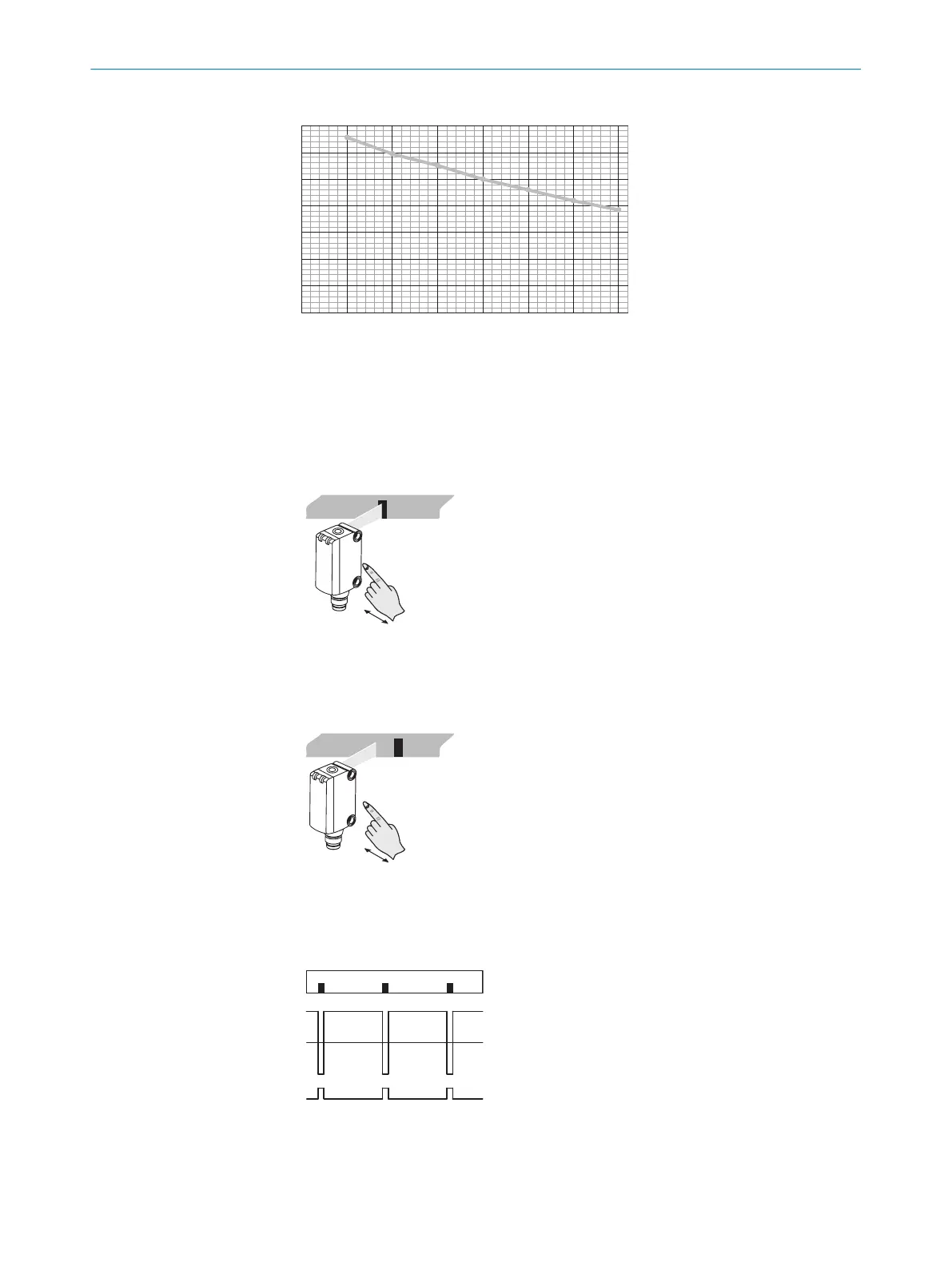

Figure 6: KTML 250 mm version
6.2 2-point-teach-in (static) via teach-in button
1. Bring the mark into the light spot and start teach-in with teach-in pushbutton (> 1
s ≤
3 s).
> 1 s ! 3 s
The emitted light and the yellow LED flash slowly: i. e. second teach-in process
must be t
riggered.
2. Bring background into the light spot and start teach-in with teach-in button (> 20
ms < 3 s).
< 3 s
✓
The op
timum emitted light is automatically selected. The switching threshold is set
in the center between the mark’s receive signal and background and is stored in a
nonvolatile memory. Output active by mark (first teach-in).
This example is showing dark switching (switch on the mark):
6 COMMISSIONING
16
